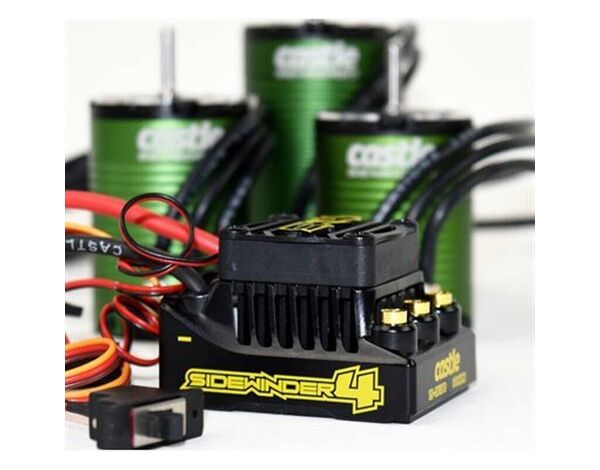

Castle MOTOR/REGLER 1/10 SW 4 w/1412-2100 SENSORED MOTOR
While the all new SIDEWINDER 4™ builds upon Castle’s most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run Castle’s newest technology, CRYO-DRIVE™. CRYO-DRIVE™ combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.
- Input Voltage Range for 1412-2100 Kv Combo : 2s-3s LiPo
- SENSORLESS and BRUSHED Running Modes
- 5.0 VOLTS FIXED, 2AMP internal BEC (Battery Eliminator Circuit)
- CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
- ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
- 30mm removable fan
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
- AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
| Technical Specs |
| Controller |
| Input Voltage Range: |
2s - 3s LiPo; 6 - 8 cell NiMH
|
| BEC Specifications: |
5.0 volts fixed, 2 amps.
|
| Operating Environment: |
Waterproof* design allows for use in nearly any environment |
| Brake: |
Proportional |
| Reversible: |
Yes, but may be disabled for racing. |
| On/Off Switch: |
Yes
|
| Cooling Fan: |
30mm fan included
|
| ESC Size: |
L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm) |
| ESC Weight (w/wires): |
2.26 oz. (64 g) |
| Connectors: |
4mm female bullets for motor connection.
|
| Items Needed for Operation: |
Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
|
| Product Use Statements: |
*Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
|
| Application Guidelines: |
For short course trucks running on 2s or 3s LiPo and weighing up to 6.5 lbs.
It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
|
| Recommended Motors: |
Combo includes 1412-2100kv brushless motor.
|
| Max. Recommended Vehicle Weight: |
No more than 6.5lbs with battery, ready-to-run.
|
| Programmability: |
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately). |
| Telemetry Link Capable: |
Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters.
|
| Tech Notes: |
Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups. |
| Motor Technical Specs |
| Input Voltage Range: |
2s-4s LiPo (3s Max with included Sidewinder 4) |
| Kv: |
2100
|
| Max. RPM: |
75,000 |
| Size: |
Length: 62.5 mm
Diameter: 36 mm |
| Weight (w/wires): |
265.4g (9.4oz) |
| Shaft Size: |
Length: 15 mm
Diameter: 1/8" (3.17 mm) |
| Mounting Hole Specifications: |
M3 @ 25mm |
| Cooling Fan: |
Optional
|
| Connectors: |
4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210 mm length sensor wire |
| Application Guidelines: |
Ideal for 1:10 scale 2WD and 4WD SC Trucks, Monster Trucks and rock racers |
| Max. Recommended Vehicle Weight: |
6.5lbs
|
| Tech Notes: |
Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Water Resistant Design: Routine maintenance is recommended after running in wet conditions.Please refer to this document for running and maintaining motors in wet environments.
|
|
