3350R Velineon VXL-3s Brushless Power System, waterproof (New) 4-Pole Motor
Neue verbesserte Version mit 4-Pole Motor

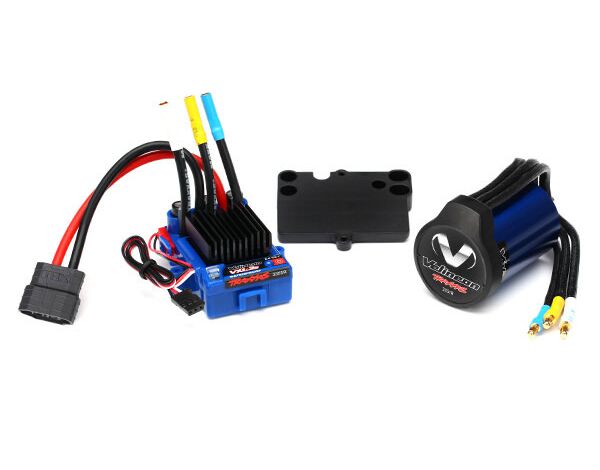

This is a NEW Genuine Traxxas 3350R Velineon Waterproof 3500 Brushless Motor / ESC VXL-3s System
The ultimate upgrade! The key to the Velineon's extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 3500 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.
This is the NEW Traxxas Velineon Extreme Brushless Waterproof Power System for electric powered R/C vehicles. INCLUDES: Velineon VXL-3s Waterproof ESC, Velineon 3500 Brushless Motor and high-current connector. FEATURES: Each component is engineered to work with each other to eliminate restrictions and allow maximum power flow.
Velineon VXL-3s ESC:
NEW WATERPROOF DESIGN
Auto-detects and compatible with brushed, brushless and sensorless brushless motors
Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery packs-two stage low voltage detection for LiPos
Three driver profiles-Sport, Race and Training Modes
Gold-plated motor connectors
Built-in output for optional auxiliary cooling fan
Velineon 3500 Brushless Motor:
10-turn 3500kV
Optimized for extreme power and efficiency in 1/10 scale vehicles
Ultra high temp neodymium magnets, high-speed ball bearings
Precision balanced rotor
Traxxas High-Current Connector
Reverse polarity protection makes backward connections impossible
Compatible with high-current 12-gauge wire
Gold-plated wide surface terminals
Textured surface for easy gripping
VXL-3s ESC SPECS:
Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
Supported motors: Brushed/Brushless/Sensorless brushless
Motor Limit: None
Continuous current: 200A
Peak current: 320A
BEC voltage 6.0V DC
Transistor type: MOSFET
On-resisteance: 0.00075 ohms Max (0.006/8 FETs)
PWM frequency: 12,000Hz
Battery connectors: Traxxas High-Current Connector
Motor connectors: TRX 3.5mm bullet connectors
Motor/battery wiring: 12-gauge Maxx Cable
Thermal protection: 2-ge thermal shutdown
Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
Weight: 3.17oz (90g)
VELINEON 3500 MOTOR SPECS:
Type: Sensorless brushless
RPM/volt: 3500 (10-turn)
Magnet type: Ultra High-Temperature, sintered neodymium
Connection type: TRX 3.5mm bullet connectors
Wire Size: 12-gauge Maxx Cable w/solder tabs
Current Ratings: 65A constant; 100A peak/burst
Max RPM: 50,000
Diameter: 1.42" (36mm) (540 size)
Length: 2.165"(55mm)
Weight: 9.24oz (262g)
