Yeah Racing Low Profile Digital High Speed Servo Rot

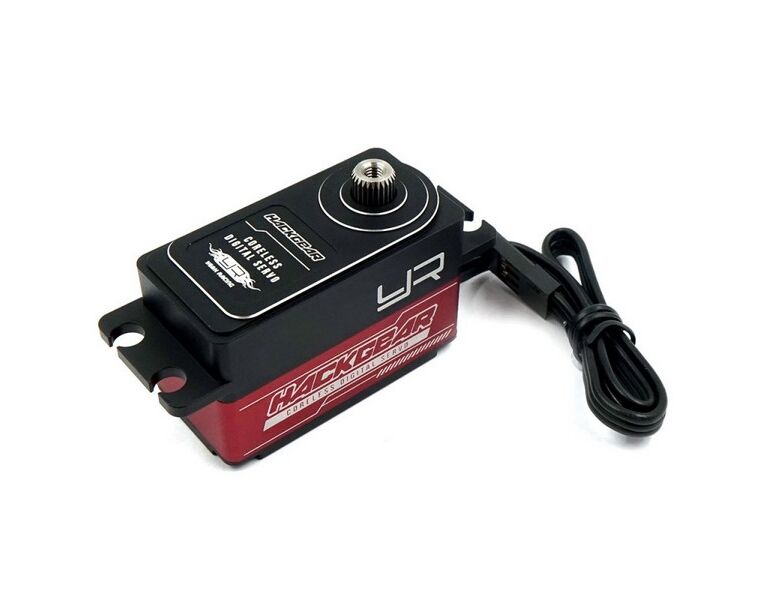

YE-0033RD Yeah Racing Aluminum Case Low Profile Digital High Speed Coreless Servo For 1/10 RC Red


Full aluminum case low profile servo for 1/10 applications! Featuring near 10kg's worth of Torque at 7.4v, and a speed of under a tenth of a second will make this servo fit for drift and on-road racing! Full aluminum case ensures all the heat gets dissipated!

Feature:

For: 1/10 Drift, On Road RC
Material: Aluminum Case
Premium Value at lower price point
Long wears titanium gear and copper gears
Digital precision provides great accuracy and performance
Ball bearing-supported output 25T shaft
Compatible with all types of Radio system
ESC Min BEC Output Recommendation: 5.75@3A

Specification:

Type: Digital
Operating Voltage Range: 4.8 -6.0Volts DC
Bearing Type:Dual Ball Bearings
Speed (s/60¢X@4.8V/6.0V): 0.10/ 0.09
Torque kg./cm. (4.8V/6.0V): 6.72/7.94
Size: 40.9mm x 20mm x 25.2mm
Motor Type: Coreless
Dead Band Width: 2µs
Connector Wire Length: 11.8 in. / 300 mm.
Connector Wire Gauge: 25 AWG Black Wire
Connector Type: Futaba
Gear Type: Titanium Gears + Copper Gears
Frequency: 330Hz
Shaft: 6mm 25T
Include:
Hackgear Aluminum Low Profile Servo (1 pc)
Servo Horns (1 pc)
Mounting Hardware (1 pack)
