Traxxas EZ-Peak Plus 8A Ladegerät (ID) 230V - 8A - 2-4S Lipo 5-8 Zellen NimH

Traxxas EZ-PEAK PLUS 8-AMP NIMH/2-4S LIPO SCHNELL-LADER

Einfaches Laden von NimH und Lipo Akkus mit Traxxas TRX ID Stecker

Lipo Ladegerät / Nimh Ladegerät

Ladestrom: 1-8A

- 5 -8 Zellen (6.0V-9.6V) 2-4S Lipo

Anschluss: 230V CH Steckdose



Powerful. Easier. Safer.
4S LiPo Compatibility with 8 Amps of Charging Power!

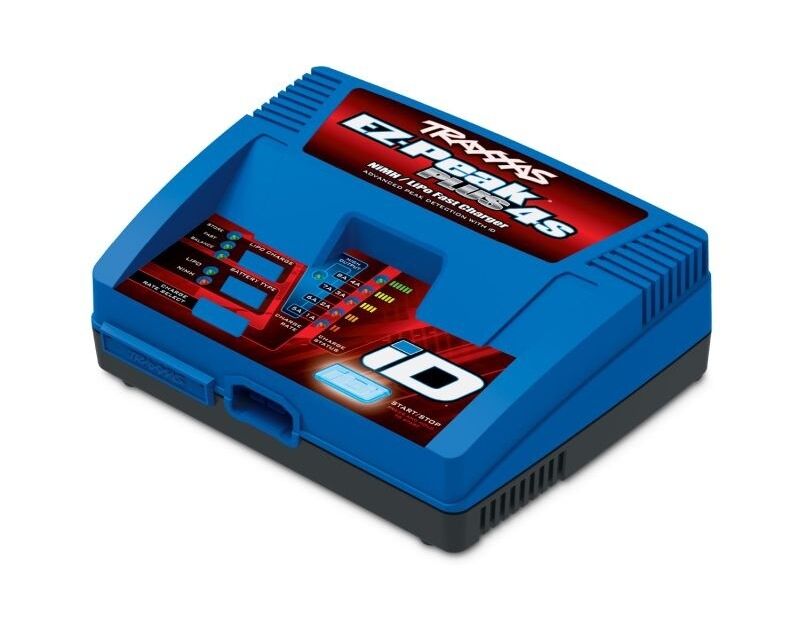

EZ-Peak Plus 4s Charger (#2981) - Front ViewThere has never been an easier or safer way to charge your batteries than the Traxxas iD® system. Just plug a Traxxas iD-equipped battery into the EZ-Peak® Plus 4s and press Start - that’s all there is to it! Traxxas pioneered this exclusive iD technology to eliminate complicated charger programming. The iD system detects which Traxxas iD-equipped battery you are using and automatically configures the charger’s settings for the optimal charge. An LED progress bar and audible alerts keep you informed while the advanced high-resolution peak detection delivers a perfect charge every time. One-button Storage Mode protects your LiPo battery investment by safely preparing the batteries for extended storage. With up to 8 amps of charging power, the EZ-Peak Plus 4s is the fastest, easiest, and most convenient way to charge your Traxxas batteries.

Diagram - 4s Traxxas High-Current Connector

Power and Convenience
The faster your batteries charge, the sooner you’re back out having fun. No one understands this better than Traxxas which is why we outfitted the EZ-Peak Plus 4s with 8 full amps (75 watts) of charging power. The charger automatically detects the type of iD-equipped battery you are using and then configures the settings for the fastest charge possible. NiMH batteries charge faster than ever with 4 amps of charging power. LiPo batteries charge even faster with up to 8 full amps. A large 40 mm cooling fan keeps the temperatures down inside the charger for powerful charging sessions. A balance port is built into the charger for older-style LiPo batteries with external balance leads. The EZ-Peak Plus 4s combines EZ-Peak power with the safety of Traxxas’ exclusive iD technology in one convenient and easy-to-use package.

Traxxas iD® Battery Type Capacity EZ-Peak Plus 4s Maximum Charge Rate
6-cell NiMH 1200-1800mAh 2A
3000-4200mAh 4A
4300-5000mAh 5A
7-cell NiMH 3000-4200mAh 4A
4300-5000mAh 5A
8-cell NiMH 4300-5000mAh 5A
2-cell LiPo, 7.4v 4000-10000mAh 8A
3-cell LiPo, 11.1v 4500-8400mAph 6.7A
4-cell LiPo, 14.8v 3400-6700mAh 5A

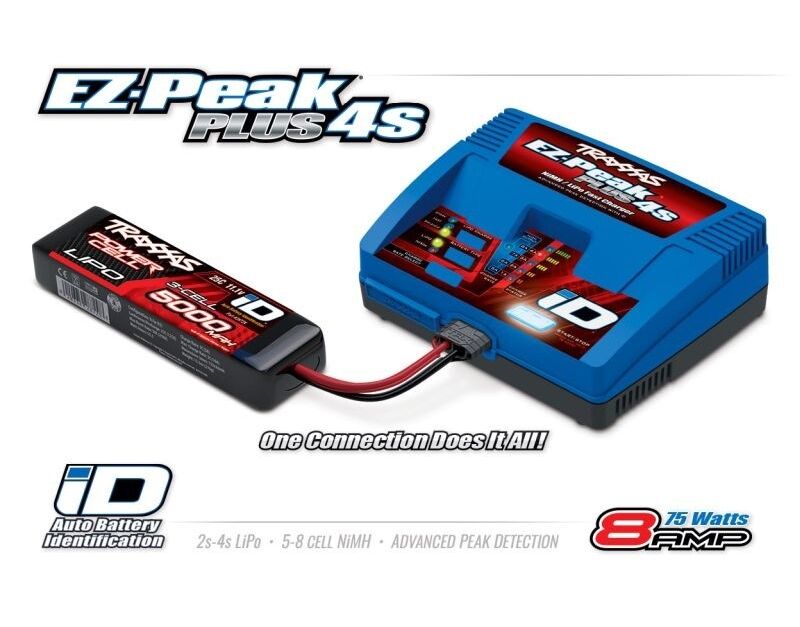

EZ-Peak Plus 4s Charger (#2981) - LiPo Battery Plugged In
Quick Features on EZ-Peak Plus 4s Charger
75-Watt 8-amp high output
Easy to use interface with charge progress indicator and audible alerts
Automatically recognizes Traxxas iD® batteries for optimal charger settings
Optimized for faster LiPo balance charging
One-button LiPo storage charge protects your battery investment
Advanced high-resolution peak detection delivers a perfect charge
Built-in cooling fan
Advanced Mode for full manual control of charger settings
Built-in balance port for conventional LiPo batteries
Charges 5-8-cell NiMH batteries
Charges 2S, 3S, and 4S LiPo Batteries
EZ-PEAK PLUS 4S (#2981) SPECIFICATIONS
AC Input: 100-240V, 50-60Hz, 1.2A
Charge Current Range: Up to 8A
Discharge Current Range: 500mA
Current Drain for Balance Ports: 500mA
NiMH Battery Cell Count: 5-8 Cells
LiPo Cell Count: 2-4 Cells
Net Weight: 365g
Dimensions: 121 x 161 x 54 mm
EZ-Peak Plus 4s Charger (#2981) - Top View

Compatible ConnectorsCompatible High-Current Connectors

MODEL 2981: EZ-Peak Plus 4s 8-amp NiMH/LiPo Fast Charger with iD® Auto Battery Identification
