TLR04009 Losi TRUGGY 8IGHT-XT/XTE EP/GP 4WD 1:8 KIT

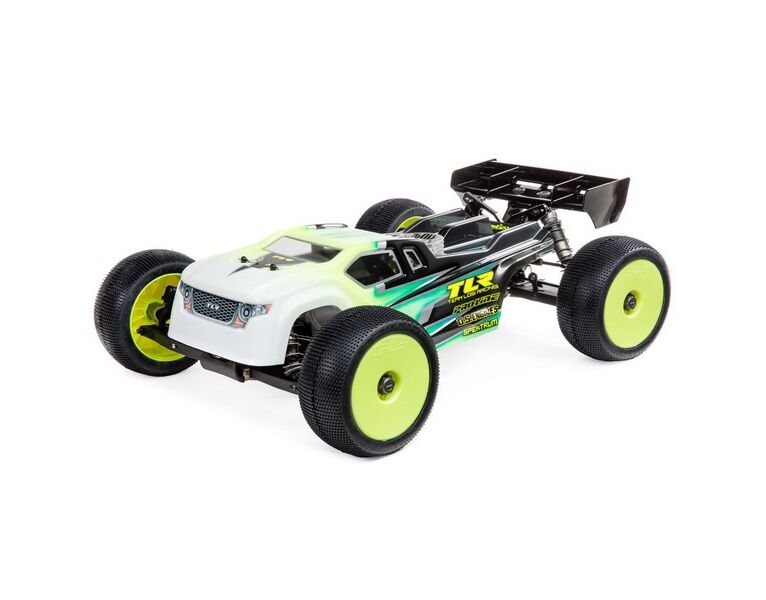

The new TLR 8IGHT-XT Next Generation Truggy builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain as well as the chassis layout that make it both easier to drive and tougher to beat.

Key Features

Nitro and Electric Parts Included

Ackerman Adjustable Draglink Steering Rack

Shorter Wheelbase

Flex Tune Suspension Arms

LiPo/LiIon Compatible Battery Box

In The Box

(1) TLR 8IGHT XT/XTE Nitro/Electric Truggy Race Kit

(1) Product Manual

Needed to Complete

(1) Transmitter and Receiver

(1) Steering Servo

(1) Compatible Battery Charger

(1) Tire Glue

(4) Tires

Polycarbonate Paint

Tools (Please reference the manual for more details)

For Electric Power:

(1) Brushless Motor

(1) Brushless ESC

(1) 4S 14.8V LiPo Battery

For Nitro Power:

(1) Nitro Engine and Tuned Pipe

(1) Receiver Battery

(1) Receiver Switch

(1) Throttle Servo

(1) Fuel Bottle

(1) 20-30% Nitro Fuel

(1) Starter Box

Features

Nitro and Electric Parts Included

Improved Suspension Geometry

Flex Tune Suspension Arms

Wider 3mm Chassis

Larger Pinion Bearing

Cab Forward Style Body

Chassis Side Guards

Large Footprint Nitro Engine Mount

One Piece Electric Motor Mount

Adjustable Caster Blocks

Bleeder Shock Caps

Balanced Chassis

Ackerman Adjustable Draglink Steering Rack

Machined Aluminum Shock Towers

Better Diff Access

Sway Bar System

Equalized Driveline

Updated Radio Tray

Optimized Shocks

Ball Bearing Throttle and Brake Actuator

Large Bearing Spindles and Carriers

Shorter Wheelbase

LiPo/LiIon Compatible Battery Box

Overview

The new Team Losi Racing® 8IGHT-XT/XTE Next Generation Truggy builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain as well as the chassis layout that make it both easier to drive and tougher to beat. Plus, it includes Nitro and Electric in one box! The 8IGHT-XT/XTE has a combination of features second-to-none including large footprint engine mount, 3mm chassis, cab forward body, machined aluminum shock caps, and so much more. Designed to win straight out of the box, the 8IGHT-XT/XTE expands performance and is ready for the winner's circle.

Needed to Complete:

Motor

Electronic Speed Control

Servo

Radio System

Charger

Battery

Paint

Tools

CA Glue

What's in the Box?

(1) TLR 8IGHT XT/XTE Nitro/Electric Truggy Race Kit

(1) Product Manual

Nitro and Electric parts included Nitro and Electric parts included

All of the items to run either nitro or electric included in one box.

Improved Suspension Geometry Improved Suspension Geometry

The 8IGHT-XT/XTE Next Gen suspension geometry has been completely revamped making a truck that is fast, nimble, and easy to drive. This includes a myriad of updates including wider front pivot with less scrub radius, narrower rear pivot, longer front and rear arms, and updated hub offset.

Suspension Arms Flex Tune Suspension Arms

All new suspension arms have been designed to accept stiffener plates that will allow racers to tune the flex of the suspension. The kit will include molded plates with optional carbon fiber plates available separately.

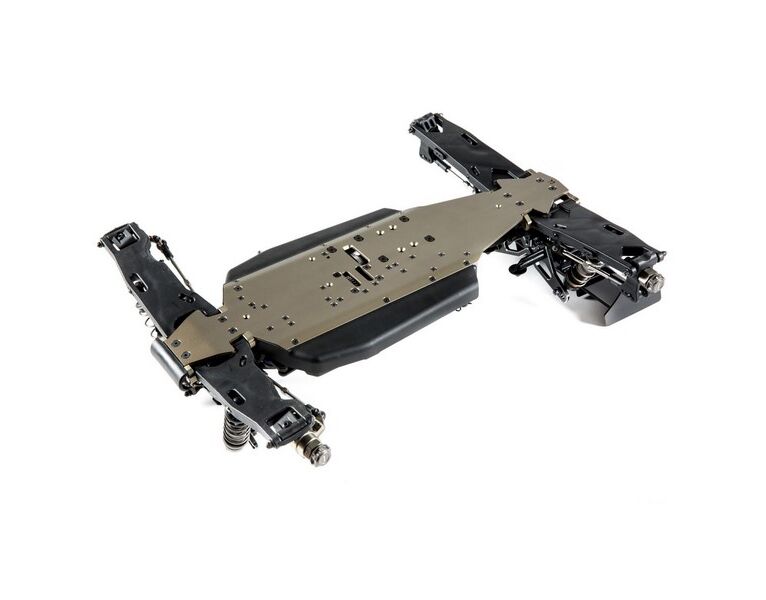

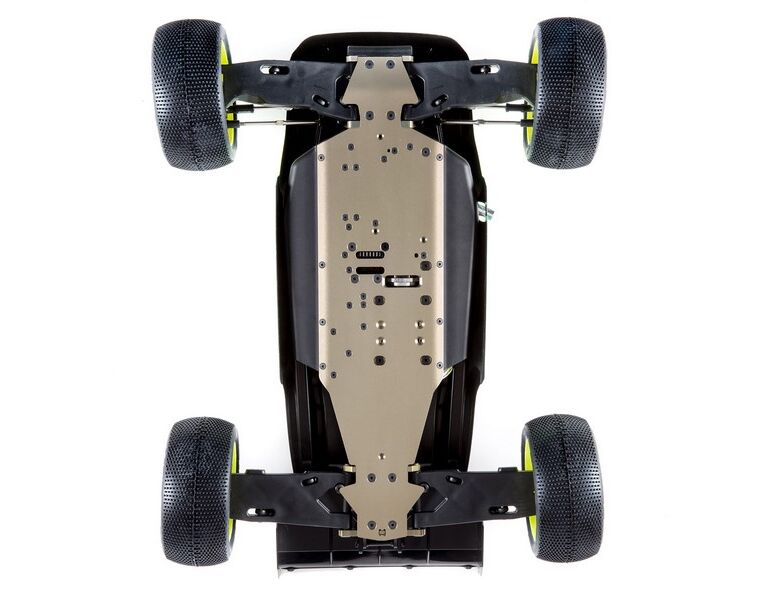

Wide 3mm Chassis Wider 3mm Chassis

Chassis width has been increased to aid in stability and give the truggy a more neutral feel as well as equalized side to side for equal torsional flex and thinned down to 3mm for weight savings.

Larger Pinion Bearing Larger Pinion Bearing

The internal pinion bearing size in the front and rear has been increased for added durability.

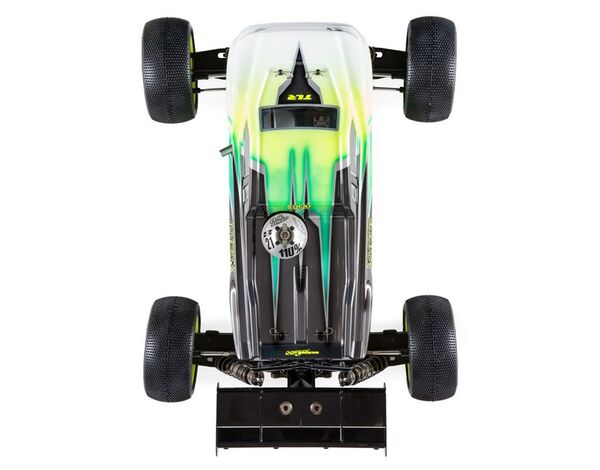

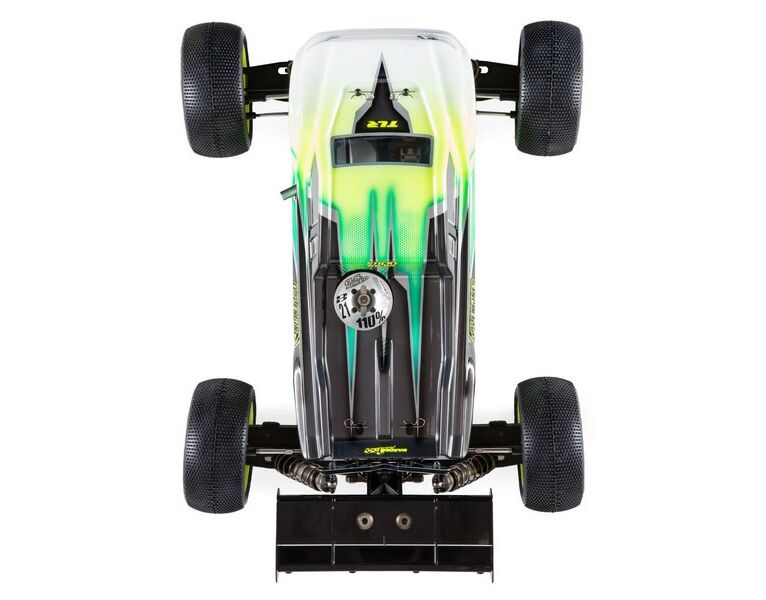

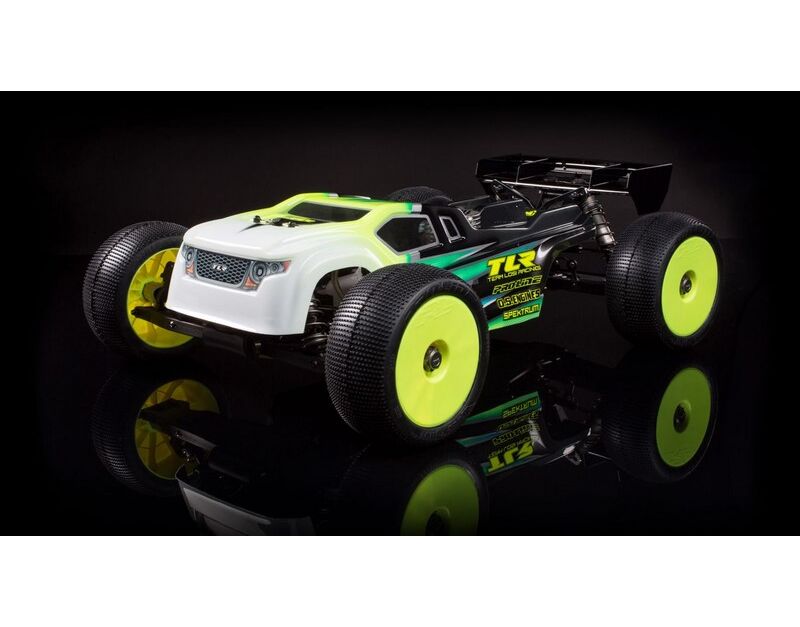

Cab Forward Style Body Cab Forward Style Body

Cab forward design helps with overall down force, which improves steering and overall stability.

Chassis Side Guards Chassis Side Guards

New chassis side guards that have an improved fit onto the chassis.

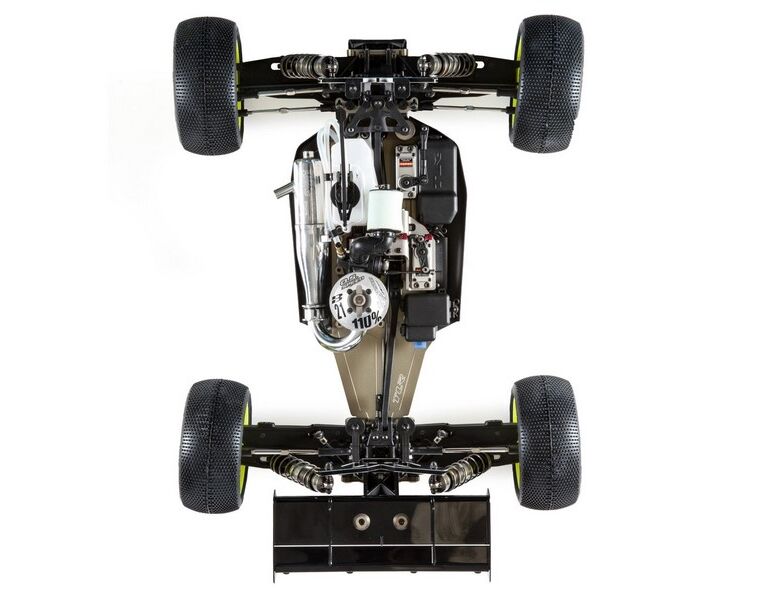

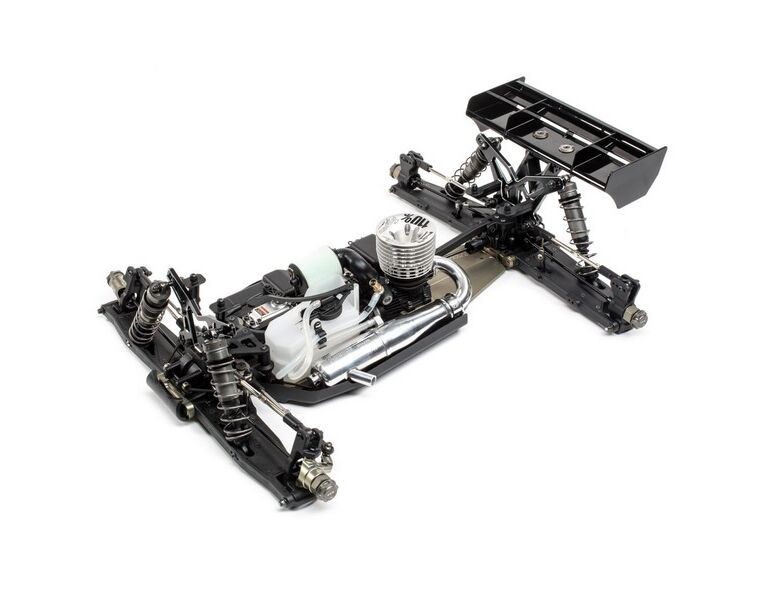

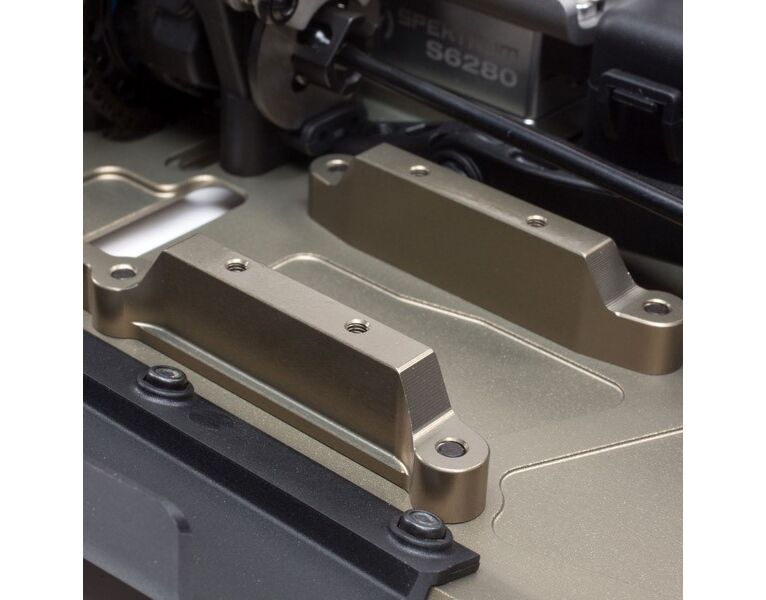

Large Footprint Engine Mount Large Footprint Nitro Engine Mount

Lightweight large footprint engine mount that reduces flex underneath the engine to eliminate chassis fatigue on high traction race surfaces for nitro.

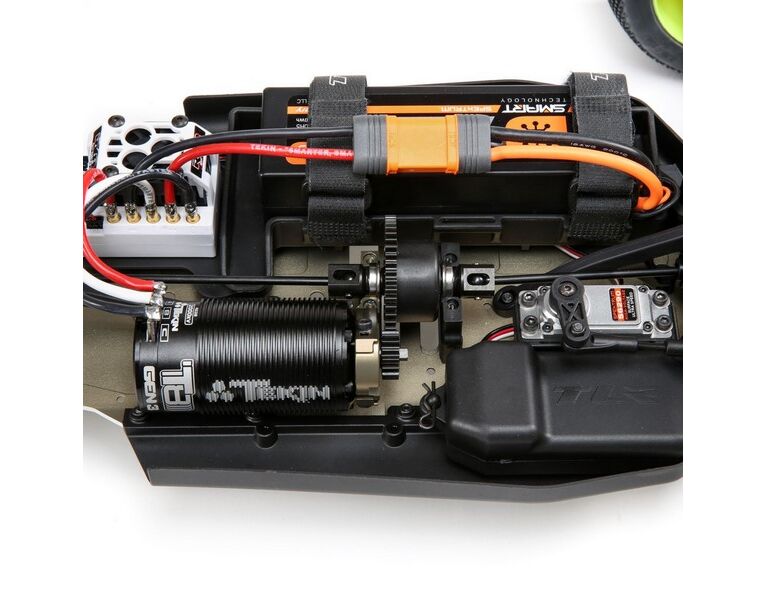

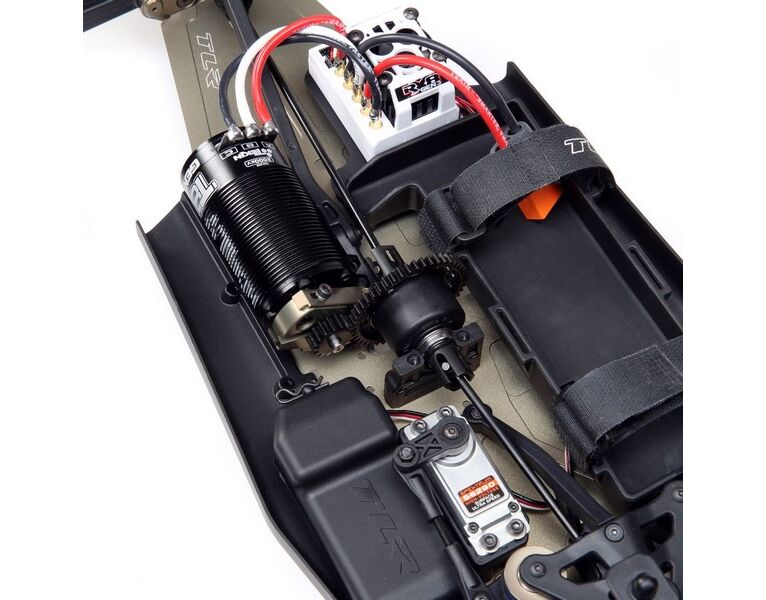

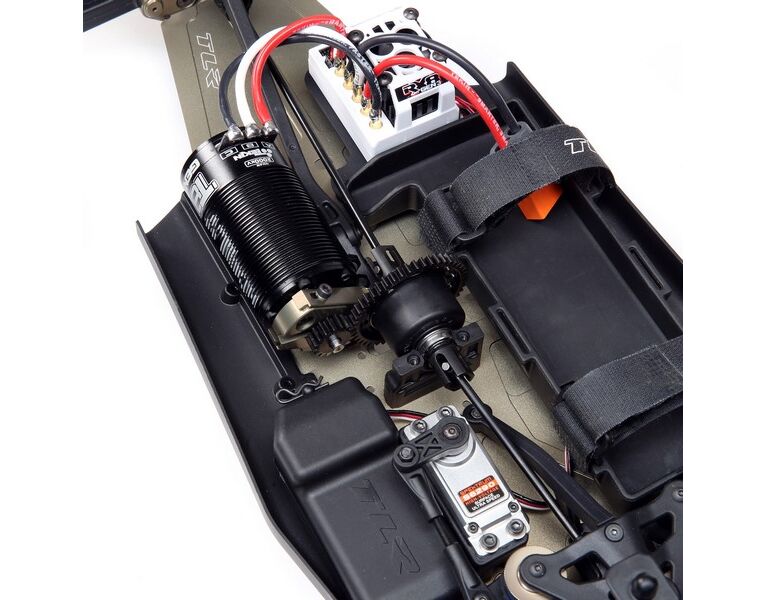

One Piece Motor Mount One Piece Electric Motor Mount

One piece aluminum motor mount that is easy to adjust pinion sizing for electric motors.

Adjustable Castor Blocks Adjustable Caster Blocks

17.5 deg caster blocks that allow the height of the spindle to be adjusted.

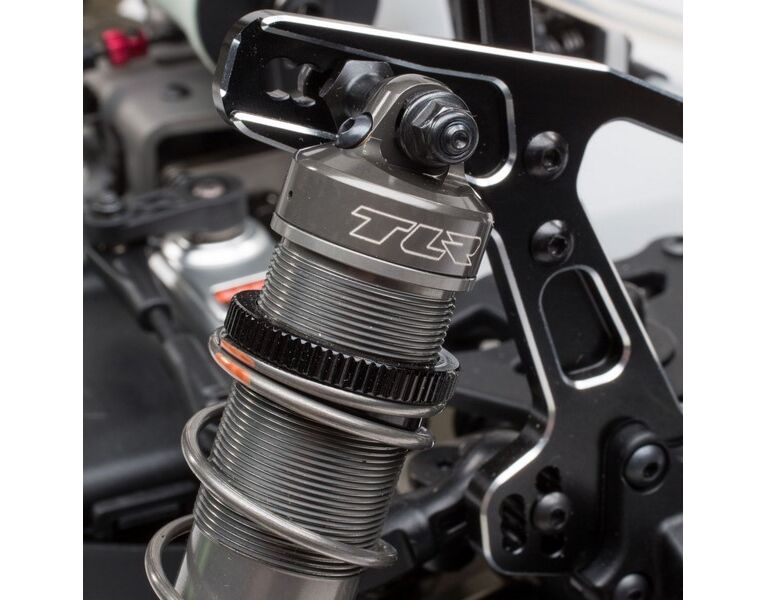

Bleeder Shock Caps Bleeder Shock Caps

Machined aluminum shock caps with threaded bleeder holes for easy and consistent bleeding of oil.

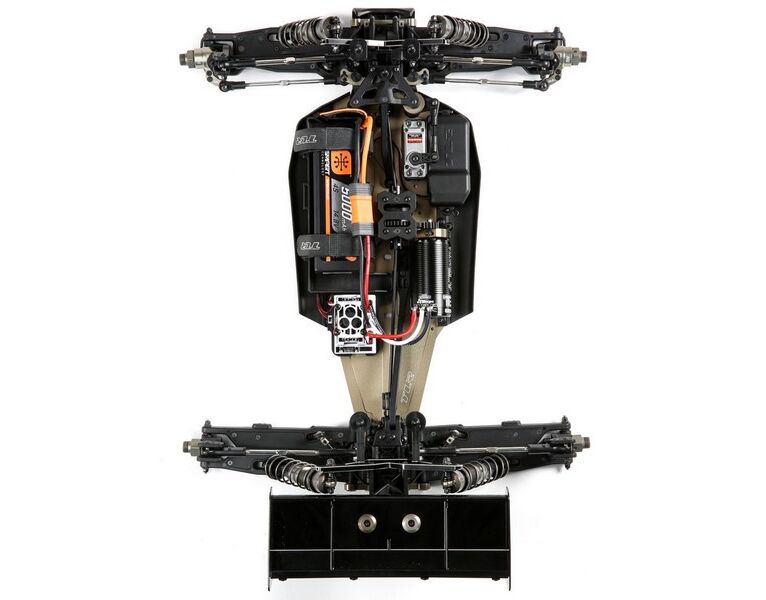

Chassis Balance Balanced Chassis

The weight has been moved forward in the chassis to provide a better driving balance to the vehicle and less parts needed to carry.

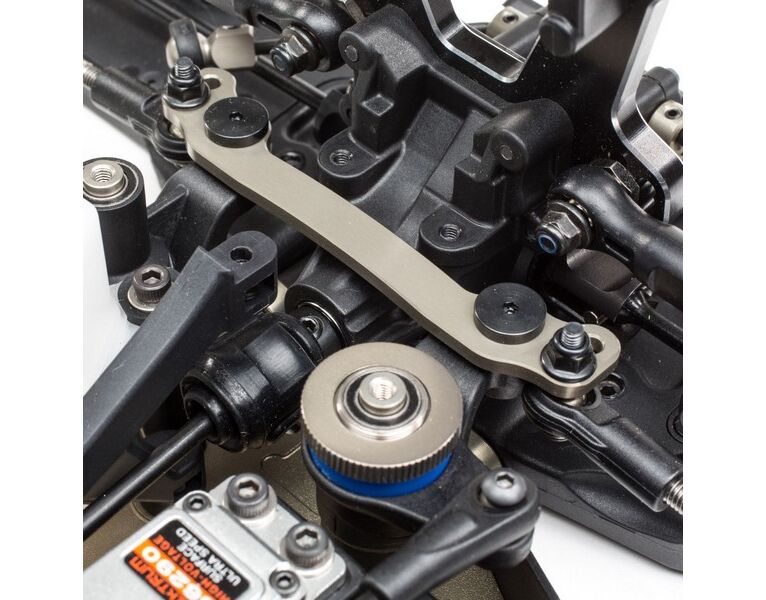

Steering Rack Ackerman Adjustable Steering Rack

Redesigned steering rack which will allow more ackerman adjustments and an improved servo saver to eliminate bellcrank bind during high loads.

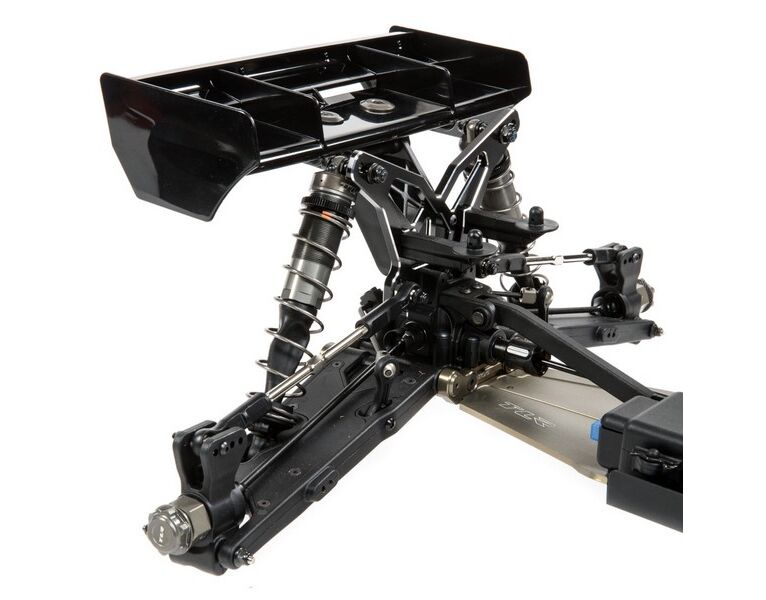

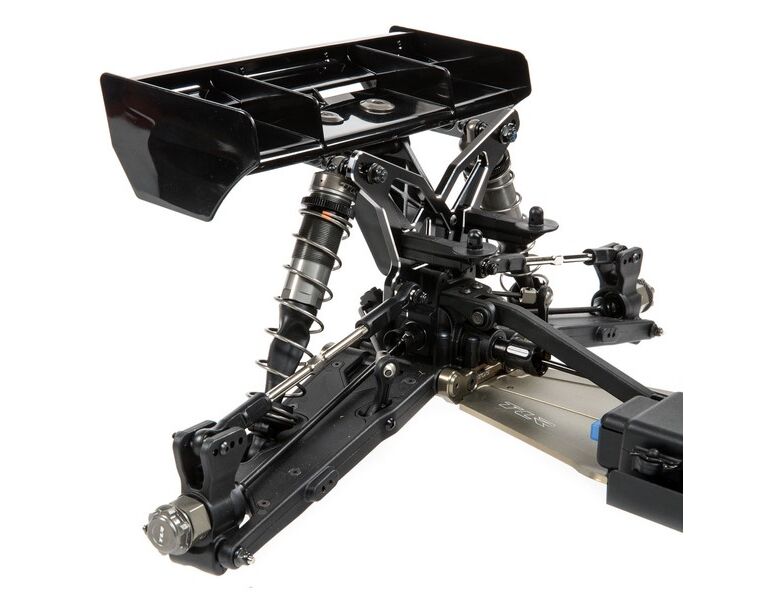

Shock Towers Machined Aluminum Shock Towers

Redesigned machined 7075-T6 aluminum shock towers with updated camber link holes.

Better Diff Access Better Diff Access

The front and rear diff case have been altered to allow easier access to the differentials without removing the bulkheads from the vehicle.

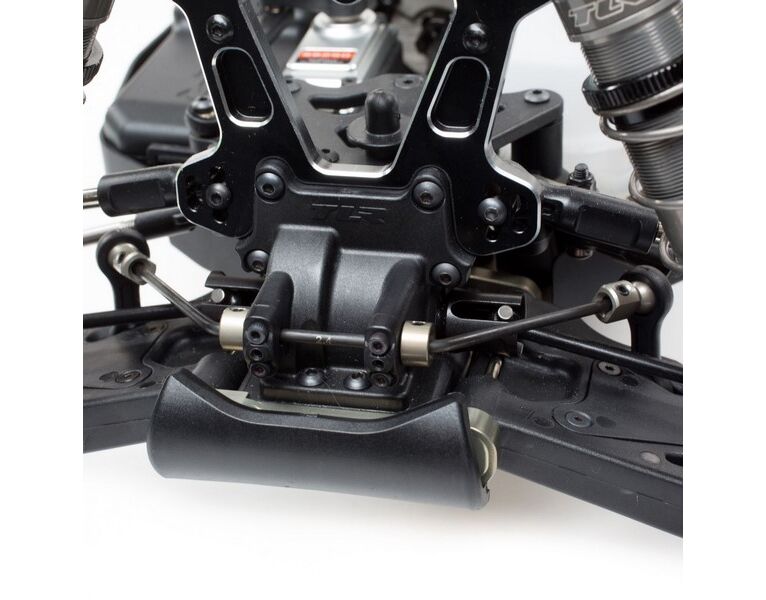

Sway Bar System Sway Bar System

New sway bar system that has adjustable length links to allow better equalization of each side of sway bar as well as collars that keep the sway bars centered.

Equalized driveline Equalized driveline

The center drive shaft angles have been modified so they are equal front to rear allowing for a more 4wd feel to the vehicle.

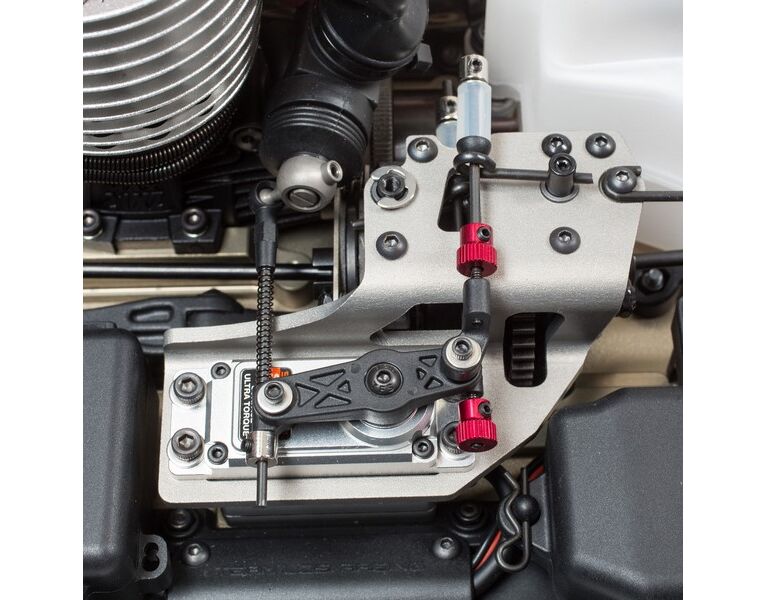

Updated Radio Tray Updated Radio Tray

An updated radio tray now puts the throttle servo near the engine to eliminate additional linkage. The updated radio tray will ensure the throttle servo is rigidly mounted to avoid any flex by floating the servo off of the center differential.

Optimized Shocks Optimized Shocks

The 8IGHT-X shocks are optimized and lightened to decrease the center of gravity and lower the weight of the car.

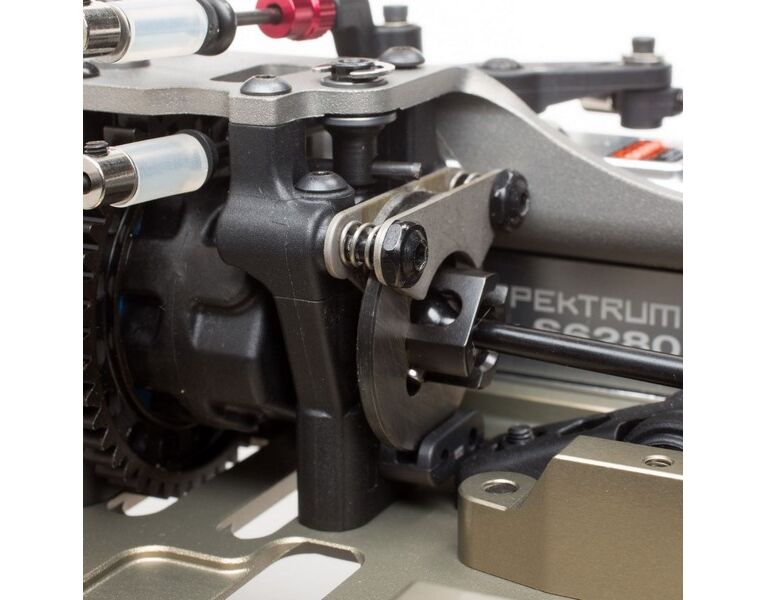

Ball Bearing Throttle and Brake Actuator Ball Bearing Throttle and Brake Actuator

The throttle and brake actuator uses ball bearings in order to give a super smooth feel on the throttle.

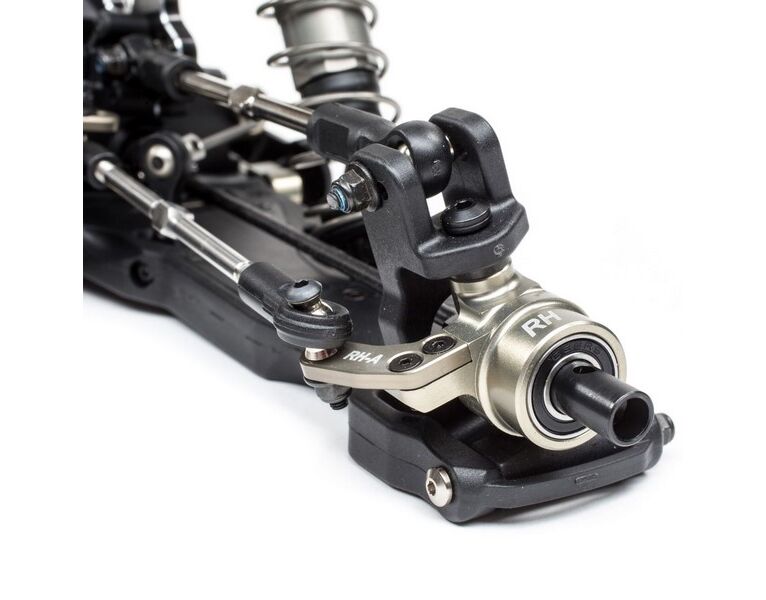

Large Bearing Spindles and Carriers Large Bearing Spindles and Carriers

All four corners of the vehicle have been updated to use large ball bearings and the same bearings.

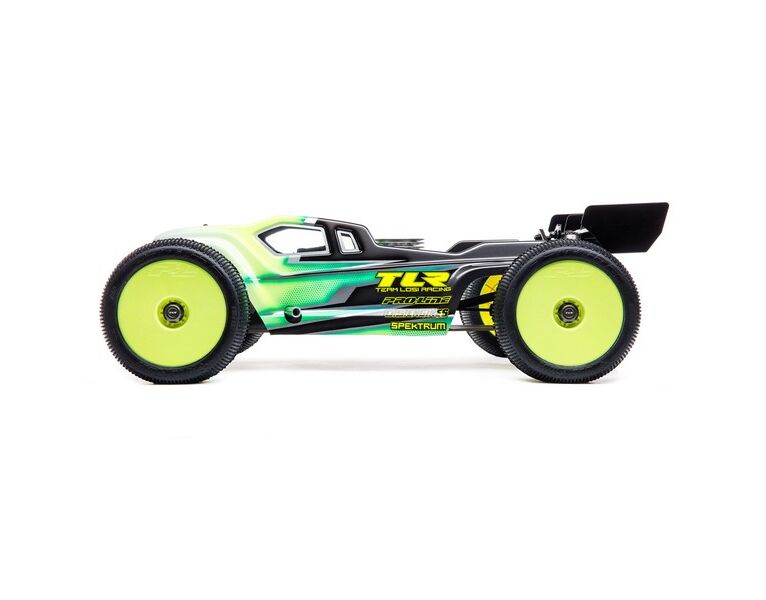

Shorter Wheelbase Shorter Wheelbase

The wheelbase has been shortened to aid in grip as well as provide more agile handling.

Lipo/LiIon Compatible Battery Box LiPo/Li-Ion Compatible Battery Box

The battery box has been designed so that you can now fit either common LiPo receiver packs or Li-Ion receiver packs.

Produkt Eigenschaften

Approximate Assembly TimeApproximately 3-5 hours

Ball BearingsFull set

BatterySold Separately

BodyUnpainted

BrakesBall bearing equipped brake actuator

ChargerSold Separately

Chassis0.12" (3mm ) 7075-T6 hard anodized aluminum

Completion LevelKit

Differential3 sealed viscous filled gear diffs

Drivetrain4WD

Drive TypeForward/Reverse

Engine Size.21 cu in (3.4cc) sold separately

Final Drive Ratio16.6:1

Front Track15.8" (402mm)

Fuel Tank Capacity5.1oz (150cc)

Power TypeElectric

Gear Pitch1.0 Mod

Gear Ratio4.5:1

Ground Clearance1.6" (40mm)

Internal Gear Ratio4.5:1

Max Battery Dimensions5.4 x 1.8 x 1.5" (138 x 47 x 40mm)

Product Height7.3" (185 mm)

Product Length21.1" (536 mm)

Product Weight9.0

Product Width16.6" (422 mm)

RadioSold Separately

Rear Track15.8" (402mm)

ReceiverSold Separately

Scale1/8

ServosSold Separately

Shock TypeAluminum body, oil-filled

Speed ControlSold Separately

Spur Gear48T

SuspensionIndependent

Track Surface15.8" (402mm) front and rear

Vehicle TypeTruggy

Water-ResistantYes

Wheelbase14.7" (373mm)
