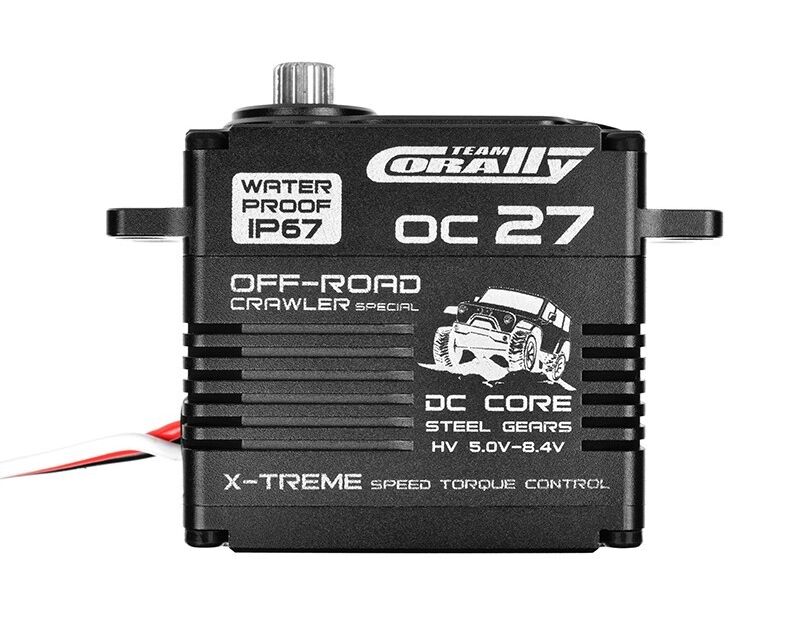

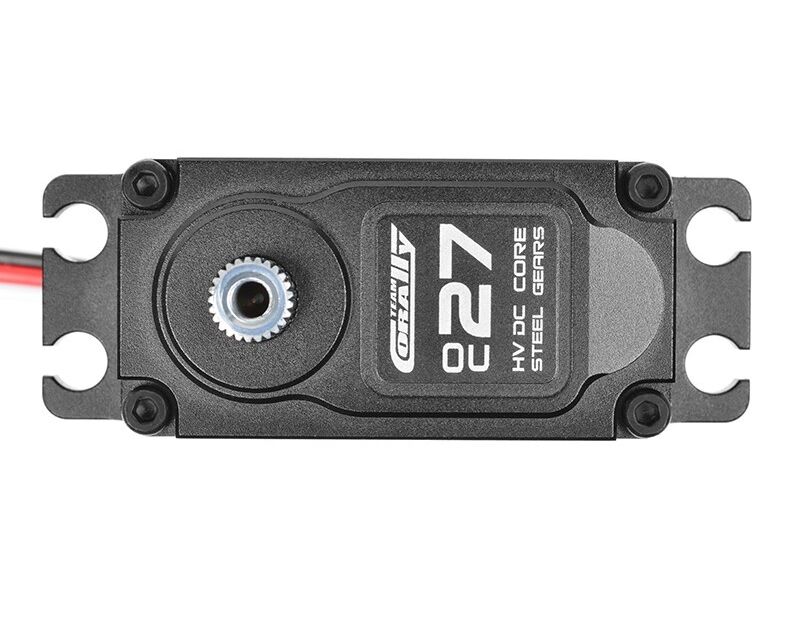

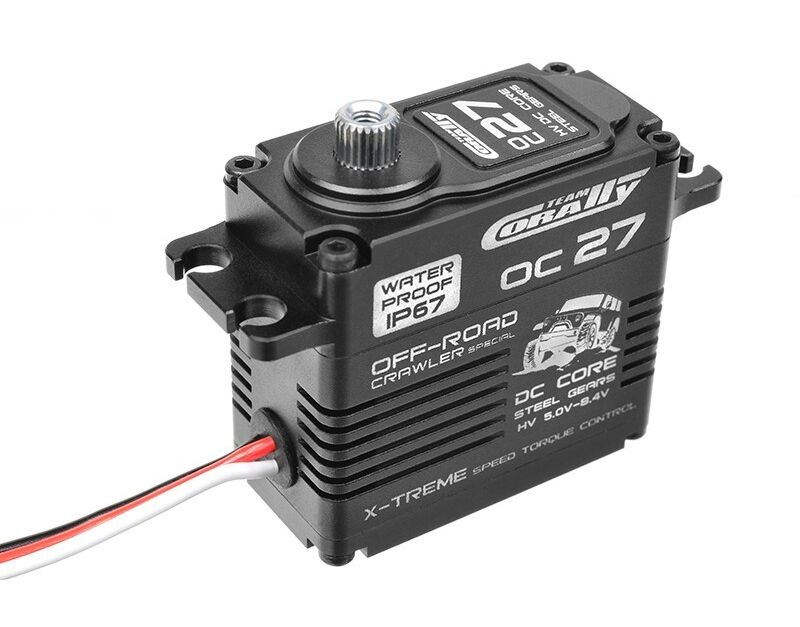

Team Corally - OC-27 HV Digital Servo 27kg / 0.11sec. 8.4V - WP - Stahl Zahnräder - Alu Gehäuse

C-52015 Team Corally - OC-27 HV Digital Servo - 8.4V - IP-67 - Core DC Motor - Stahl Zahnräder - Kugelgelagert - Aluminium Gehäuse

Scale - Crawler

You are looking for some powerful control

We developped these servos with the basher in mind, ultimate digital power, precision and reliable.

Check out these awesome features

Features:

- Full CNC machined alloy case

- Digital LHV 5.0 - 8.4V

- Metal gears

- Ball Raced

- Core DC motor

- High speed and torque

- IP67 Waterproof

Tech. Specs:

Voltage range 5.0 - 8.4V

Speed @ 6.0V 0.15 sec/60°

Speed @ 7.4V 0.13 sec/60°

Speed @ 8.4V 0.11 sec/60°

Torque @ 6.0V 17.7 kg/cm

Torque @ 7.4V 23.6 kg/cm

Torque @ 8.4V 27.3 kg/cm

Dimensions (mm) 40.4x20.4x36.7

Weight 75g / 2.55oz

Technische Daten

Brandname

TC - Corally

Servo Technology

Digital Ultra High Voltage

Input Voltage (V)

6.0V - 8.4V

Servo Type / Size

Standard

Water Protection

Waterproof IP67

Motor Type

Core Motor

Gear Material

Steel Gears

Ball Beared

Ball Beared

Servo Case

CNC alloy

Servo Power - Torque Kg/cm

> 25 Kg/cm

Servo Speed 60°/sec

0.11 - 0.15 Sec/60°

Length (mm)

40,4 mm

Width (mm)

20,4 mm

Height (mm)

36,7 mm

Weight (g)

75 g

Speed 60°/Sec @ 6.0V

0,15 sec/60°

Speed 60°/Sec @ 7.4V

0,13 sec/60°

Speed 60°/Sec @ 8.4V

0,11 sec/60°

Torque kg/cm @ 6.0V

17.7 Kg/cm

Torque kg/cm @ 7.4V

23.6 Kg/cm

Torque kg/cm @ 8.4V

27.3 Kg/cm

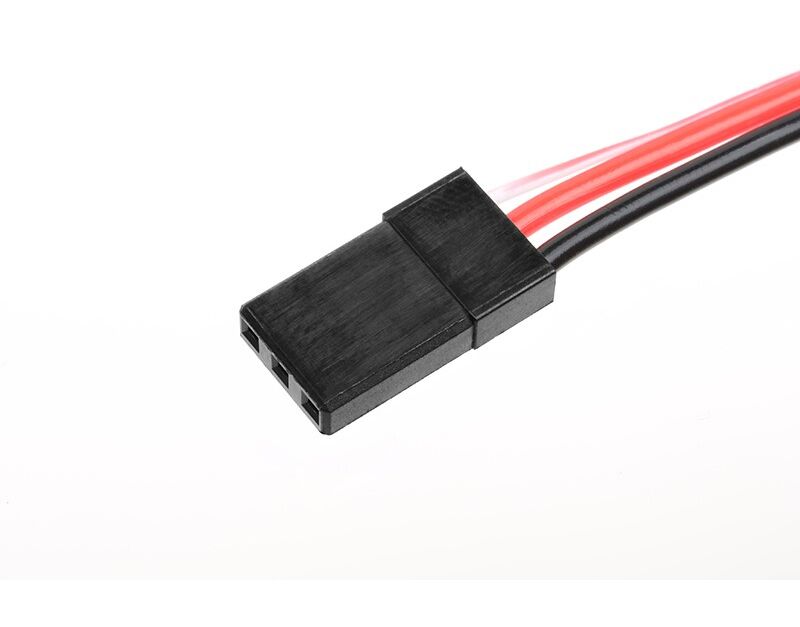

Connector type

JR

Spline size

25T Spline

Control system

PWM control

Pulse Width Range

500 - 2500 µs

Neutral Position

1500 µs

Operating Travel

180° (500 - 2500 µs)

Maximum Travel

180° (500 - 2500 µs)

Refresh Rate

200Hz
