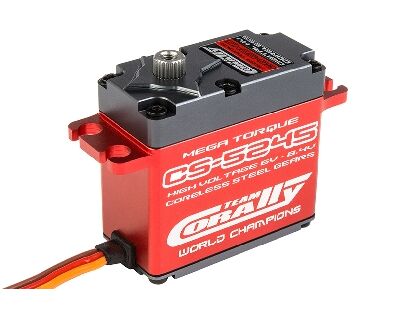

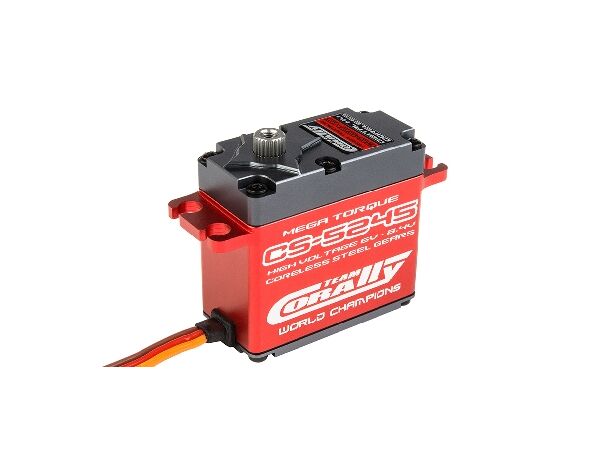

Team Corally CS-5245 HV Ultra High Torque Servo 0.10sec. / 47kg - Top beliebt bei 1/8 Basher

C52005 Team Corally - CS-5245 HV Ultra High Torque Servo - High Voltage - Glockenankermotor - Stahl Zahnräder - Kugelgelagert - Aluminium Gehäuse

0.10sec. / 47kg Stahl Getriebe - max. 8.4V - Wassserdicht - 25 Zähne

Stärkere Alternative zu dem Team Corally CS-5226 HV High Speed Servo

You are looking for some powerful control

We developped these servos with the racer in mind, ultimate digital power, precision and reliable.

Check out these awesome features

Features:

- Full CNC machined alloy case

- High Voltage 6.0 - 8.4V

- Steel gears

- Ball Raced

- Coreless motor

- Ultra high speed and torque

- Water resistant

Technische Daten

Brandname

TC - Corally

Servo Technology

Digital Ultra High Voltage

Input Voltage (V)

6.0V - 8.4V

Servo Type / Size

Standard

Application

RC Car, RC Airplane

Water Protection

Waterproof

Motor Type

Coreless Motor

Gear Material

Steel Gears

Ball Beared

Ball Beared

Servo Case

CNC alloy

Servo Power - Torque Kg/cm

> 25 Kg/cm

Servo Speed 60°/sec

0.05 - 0.10 Sec/60°

Length (mm)

40.0 mm

Width (mm)

20.0 mm

Height (mm)

37.0 mm

Weight (g)

73 g

Speed 60°/Sec @ 6.0V

0.12 Sec/60°

Speed 60°/Sec @ 7.4V

0.11 Sec/60°

Speed 60°/Sec @ 8.4V

0.10 Sec/60°

Torque kg/cm @ 6.0V

37.5 Kg/cm

Torque kg/cm @ 7.4V

Kg/cm

Torque kg/cm @ 8.4V

46.9 Kg/cm

Connector type

JR

Spline size

25T Spline
