Team Corally CS-5016 HV High Speed Servo 0.05sec. / 16.5kg Titan Getriebe - max. 8.4V - Wassserdicht - 25 Zähne

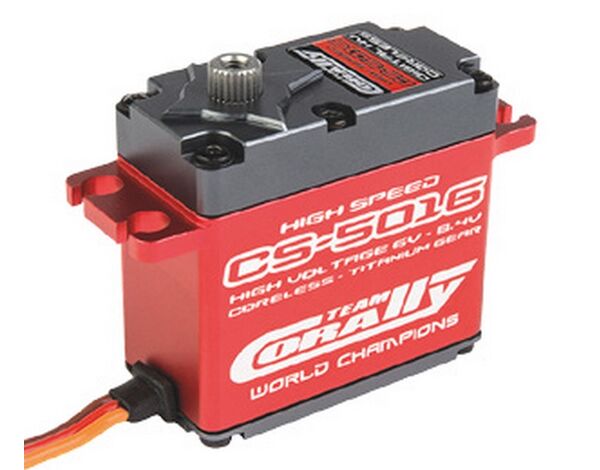

C52000 Team Corally - CS-5016 HV High Speed Servo - High Voltage - Coreless Motor - Titanium Gear - Ball Beared - Full Alloy Case

0.05sec. / 16.5kg Titan Getriebe - max. 8.4V - Wassserdicht - 25 Zähne

You are looking for some powerful control

We developped these servos with the racer in mind, ultimate digital power, precision and reliable.

Check out these awesome features

Features:

- Full CNC machined alloy case

- High Voltage 6.0 - 8.4V

- Titanium gears

- Ball Raced

- Coreless motor

- Ultra high speed and torque

- Water resistant

Tech Specs:

Voltage range 6.0 - 8.4V

Speed @ 6.0V 0.07 sec/60

Speed @ 7.4V 0.06 sec/60

Speed @ 8.4V 0.05 sec/60

Torque @ 6.0V 11.8 kg/cm

Torque @ 7.4V 14.4 kg/cm

Torque @ 8.4V 16.5 kg/cm

Dimensions (mm) 40.5x20.5x36

Weight 72g

Servo Technology: Digital Ultra High Voltage

Input Voltage (V): 6.0V - 8.4V

Servo Type / Size: Standard

Motor Type: Coreless Motor

Length (mm): 40.5 mm

Gear Material: Titanium Gears

Width (mm): 20.5 mm

Ball Beared: Ball Beared

Height (mm): 36.0 mm

Servo Case: CNC Alloy

Servo Power - Torque Kg/cm: 16 - 25 Kg/cm

Servo Speed 60?/sec: 0.05 - 0.10 Sec/60?

Protection: Waterproof

Thermal Protection Temperature: Waterproof

Weight (g): 72 g

Speed 60?/Sec @ 6.0V: 0.07 Sec/60?

Speed 60?/Sec @ 7.4V: 0.06 Sec/60?

Speed 60?/Sec @ 8.4V: 0.05 Sec/60?

Torque kg/cm @ 6.0V: 11.8 Kg/cm

Torque kg/cm @ 7.4V: 14.4 Kg/cm

Torque kg/cm @ 8.4V: 16.5 Kg/cm

Connector type: JR

Spline size: 25T Spline
