SP-860011-03 30KG S3000B

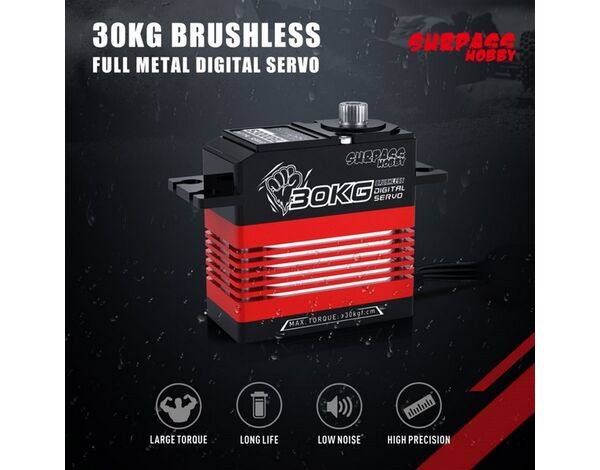

Item Type: 30KG Digital Servo
Material: Aluminum Alloy
Model: S3000BL
Color: Black Red
Locked-Rotor Torsion: 32.kgf.cm at 7.4V
Working Voltage: 6.0-8.4V DC
No-Load Speed: 0.12sec./60° at 7.4V
Rated Torsion: 7kgf.cm at 7.4V
Working Stroke Angle: 180°10 10° (500-2500μs)
Mechanical Limit Angle: 210°
Rotation Direction: CCW (1000-2000μs)
Shell Material: Aluminum Alloy Shell
Gear Set Material: Metal Gear
Motor Type: Brushless Motor
Size: Approx. 40.8 x 40 x 20mm/1.6 x 1.57 x 0.8in
Compatible: Fit for 1/8 car model boat robot
Installation:
1. Install the servo to the servo base first, without installing the servo arm or servo protection. Only fix the servo to frame. Then connect the servo to the receiver. Generally, the three wires of the CH1 or ST jack are divided into: bottom wire, VCC, and signal/PWN.
2. After the servo is fixed, turn on the remote control and turn on the ESC after setting it, and then the servo will stop at a fixed position
3. Without turning off the remote control and the servo, install the servo protector or the servo arm to the servo output gear

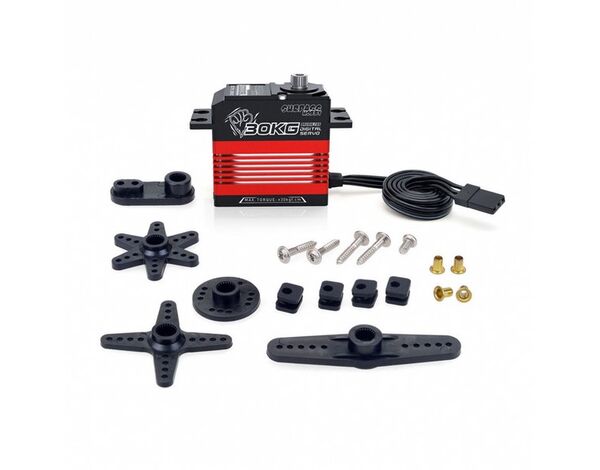

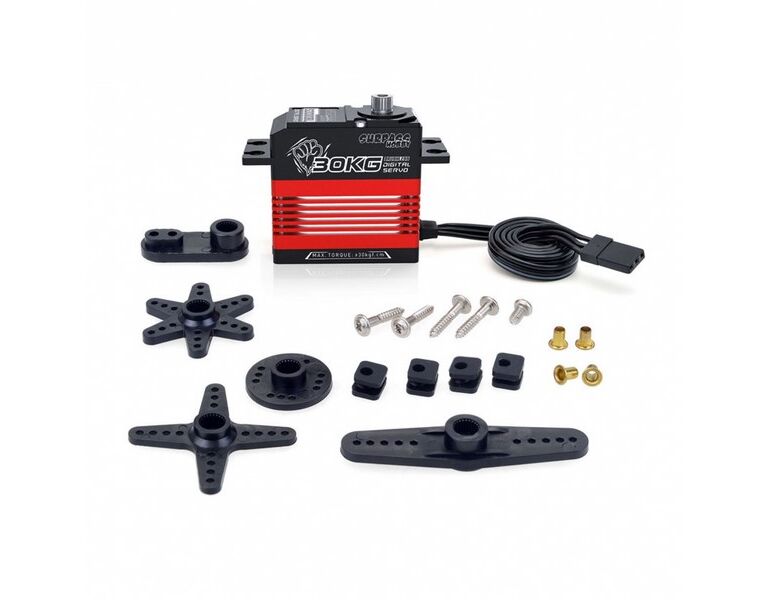

Package List:
1 x 30KG Digital Servo
5 x Servo Arms
5 x Screws
8 x Accessories
1 x Manual
