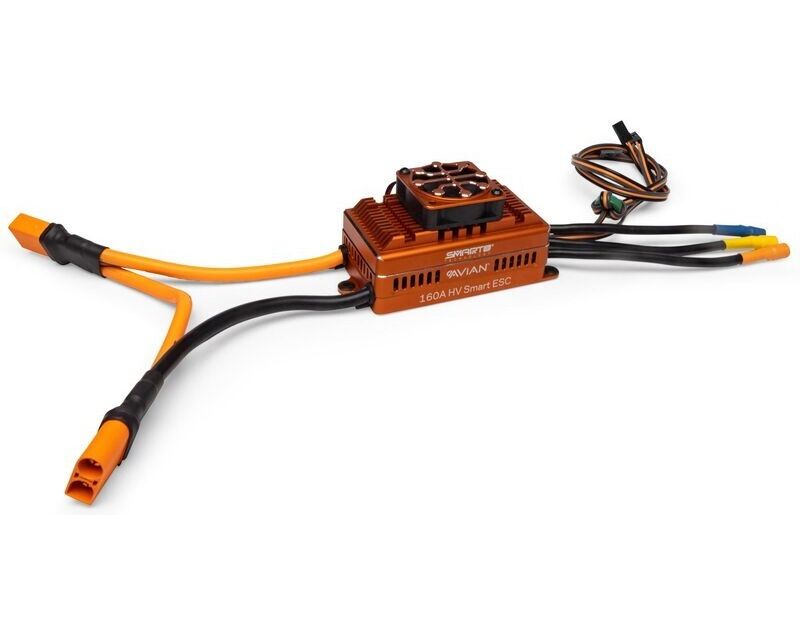

Spektrum REGLER AVIAN HV BL Smart ESC 160A

SPMXAE1160HV Spektrum REGLER AVIAN HV BL Smart ESC 160A

Key Features

Smart All-in-one Telemetry

Fast, Powerful 32-bit ARM M4 Processor

Compact For Easy Installation In Most Applications

Ready To Install — No Soldering Required

Limited 1-year Warranty

In The Box

(1) Spektrum™ Avian™ Smart 160A HV Brushless ESC

(1) Spektrum Smart Sticker Sheet

(1) Product Manual

Needed to Complete

Spektrum™ Aircraft Receiver

Spektrum Smart Technology LiPo Battery

Spektrum Transmitter

Features

Smart all-in-one telemetry

Fast, powerful 32-bit ARM M4 processor

Multiple options for easy programming:

Smart ESC Programming Box

SmartLink USB Updating and Programmer application

Throttle stick programming

Multi-point protection:

Over-current protection

Automatic LiPo low-voltage cutoff

Thermal protection

Failsafe protection

Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

Compact for easy installation in most applications

Ready to install — no soldering required

Heat dissipating design

Dual BEC power connectors

Firmware updatable through the Smart ESC Programming Box and SmartLink PC application

High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

Limited 1-year warranty

Overview

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

EC3™/EC5™ Backwards Compatible

Avian ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3 or IC5 connector-equipped Spektrum Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.

Smart Technology Battery Data

When used with a Spektrum Smart LiPo battery, your Avian ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.

Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.

On-Screen ESC Programming

Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency, right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.

Produkt Eigenschaften

Maximum Burst Current200A

Maximum Continuous Current160A

Motor TypeBrushless

Product Width1.96" (50 mm)

TechnologySmart

ForwardYes

ReverseYes

ProgrammableYes

ApplicationAir Motor

Auto CutoffYes

BEC Continous Current10A

Low-Voltage Cutoff ProgrammableYes

Overload ProtectionYes

Product Weight376g (13.3oz)

Connector TypeIC5

Product Length3.5" (89 mm)

BECYes

BEC Maximum Burst Current25A

BEC Voltage6.0V/7.4V/8.4V

Input Voltage6S - 14S LiPo

Product Height1.4" (36 mm)

BEC TypeAdjustable
