Spektrum MOTOR FIRMA 750KV 4-Pole BL 5687 Key Features 8S LiPo Capable Low Cog 4-Pole... mehr
Produktinformationen "Spektrum MOTOR FIRMA 750KV 4-Pole BL 5687 Brushless - 8S"

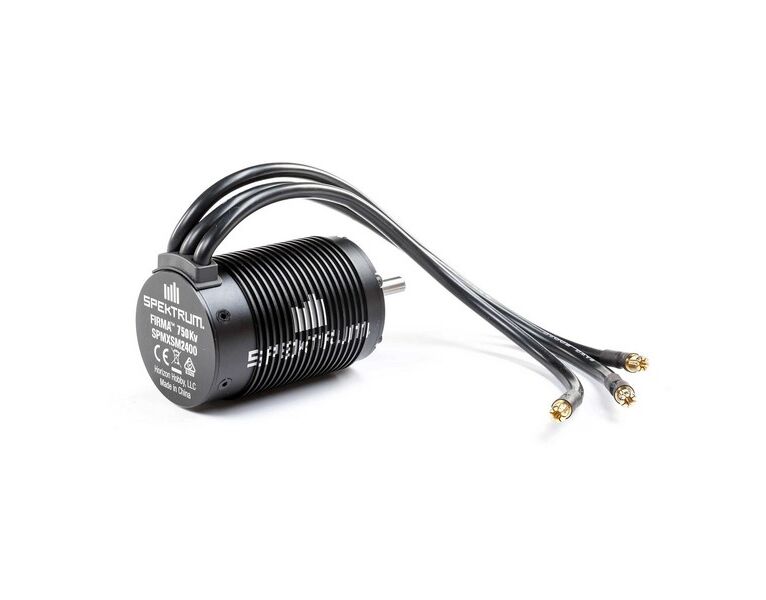

Spektrum MOTOR FIRMA 750KV 4-Pole BL 5687
Key Features
8S LiPo Capable
Low Cog 4-Pole 8-Magnet Rotor Design
Alloy steel 8mm Output Shaft
In The Box
Firma 5687 - 750Kv 4-Pole Brushless Motor
Needed to Complete
150A ESC
Overview
The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
High efficiency design
8S LiPo power capable
High-quality 4-pole sintered rotor
6.5mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 8mm shaft
Produkt Eigenschaften
Maximum Continuous Current 80A
Motor Type Brushless
Motor Design Inrunner
Application 1/6 scale buggies, truggies or monster trucks with 3S-8S Lipo powered setup
Number of Poles 4
Output 3950W
Product Weight 2.08lbs (947g)
Shaft Diameter 0.314" (8 mm)
Outer Diameter 2.2" (56 mm)
Input Voltage 3S - 8S LiPo
RPM/Volt (Kv) 750Kv
Sensored No
Connector Type 6.5mm Bullet
Efficiency 87%
Motor Size 5687
Product Length 3.43" (87 mm)
Key Features
8S LiPo Capable
Low Cog 4-Pole 8-Magnet Rotor Design
Alloy steel 8mm Output Shaft
In The Box
Firma 5687 - 750Kv 4-Pole Brushless Motor
Needed to Complete
150A ESC
Overview
The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
High efficiency design
8S LiPo power capable
High-quality 4-pole sintered rotor
6.5mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 8mm shaft
Produkt Eigenschaften
Maximum Continuous Current 80A
Motor Type Brushless
Motor Design Inrunner
Application 1/6 scale buggies, truggies or monster trucks with 3S-8S Lipo powered setup
Number of Poles 4
Output 3950W
Product Weight 2.08lbs (947g)
Shaft Diameter 0.314" (8 mm)
Outer Diameter 2.2" (56 mm)
Input Voltage 3S - 8S LiPo
RPM/Volt (Kv) 750Kv
Sensored No
Connector Type 6.5mm Bullet
Efficiency 87%
Motor Size 5687
Product Length 3.43" (87 mm)
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Max. Betriebspannung: | 29.6 Volt |
Leistung max. Watt ca.: | 4000 |
Drehzahl Kv pro Volt ca.: | 750 |
Anzahl Pole: | 4 |
Lipo Zellenzahl max.: | 8 |
Motor Art.: | Brushless |
Motor Baugrösse: | 1/5 - 1/6 Big Block |
Anschluss Motor: | 6.5 mm |
Regler Art: | Brushless Sensorless |
Welle Durchmesser mm: | 8 mm |
Länge mm ca.: | 87 |
Durchmesser mm ca.: | 56 |
Artikel Eigenschaften "Spektrum MOTOR FIRMA 750KV 4-Pole BL 5687 Brushless - 8S"
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Max. Betriebspannung: | 29.6 Volt |
Leistung max. Watt ca.: | 4000 |
Drehzahl Kv pro Volt ca.: | 750 |
Anzahl Pole: | 4 |
Lipo Zellenzahl max.: | 8 |
Motor Art.: | Brushless |
Motor Baugrösse: | 1/5 - 1/6 Big Block |
Anschluss Motor: | 6.5 mm |
Regler Art: | Brushless Sensorless |
Welle Durchmesser mm: | 8 mm |
Länge mm ca.: | 87 |
Durchmesser mm ca.: | 56 |
