Spektrum Firma Smart 40A Lite WP Brushed ESC Regler

Produkt Bewerten
CHF 51.90
1 Stk. beim Lieferant verfügbar - Versand in ca. 2 - 4 Werktagen
+
SPMXSE40

Hersteller Info: Spektrum - mehr Artikel >

  • Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
  • 30 Jahre RC Modellbau Erfahrung
  • Top Service von Profi Modellbauer
  • Über 500 Hersteller - 200`000 Artikel

Spektrum Firma Smart 40A Lite WP Brushed ESC

Produkt Details:

The Spektrum Firma 40 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.

Key Features.

SMART LITE: INTEGRATED SMART TECHNOLOGY

WATERPROOF: Designed and built to operate in “wet condition” such as puddles, creeks, and snow*

PROGRAM VIA TRANSMITTER: Proprietary Text Gen Programming Allows for programming the esc from Transmitter

In The Box:

(1) Spektrum Firma 40A Brushed Smart ESC

(2) Light Strings (red and white)

(1) Product Manual

Needed to Complete

(1) Spektrum™ Surface Receiver

(1) 540 – 550 size Brushed motor

(1) 2S or 3S Lipo Battery with EC3 or IC3 Connector

(1) Spektrum Transmitter

Firma 40A Lite Brushed Smart ESC, 2S-3S: IC3

Features:

Smart all-in-one telemetry

Smart Lite functionality

Provides Spektrum Smart ESC data such as input voltage, esc temperature, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.

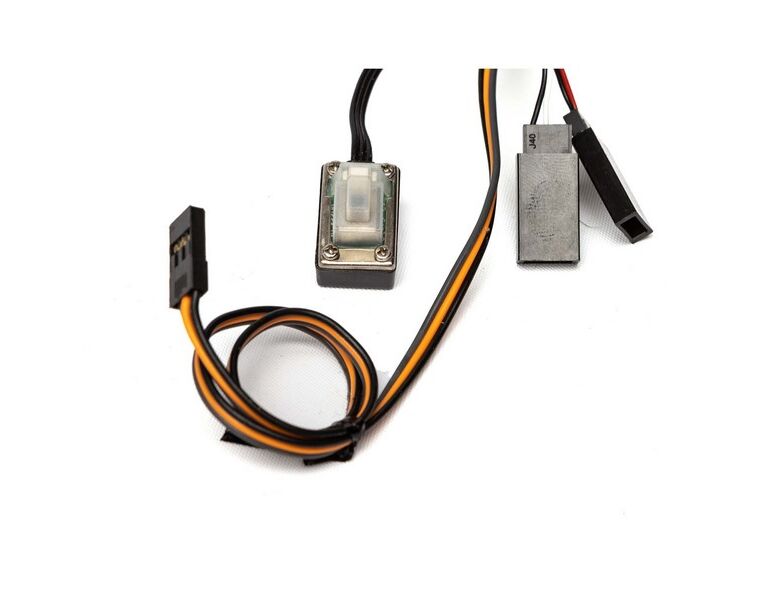

Integrated LED light power outputs for simple installation without the need of additional receiver ports

Includes 2 LED Light Strings (Red and White)

40 Amp continuous power – ideal for 1/10 scale crawlers and scalers

2S-3S LiPo Compatible

Waterproof ESC*

Multiple options for easy programming:

Smart ESC Programming Box

SmartLink USB Updating and Programmer application

Programming from Transmitter via Text Gen Telemetry

Multi-point protection:

Over-current protection

Automatic LiPo low-voltage cutoff

Thermal protection

Failsafe protection

Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

Compact for easy installation in most applications

Ready to install — no soldering required

Aluminum heat sink for high efficiency

Adjustable high-power BEC (6V or 7.4V, 4amp)

Firmware updatable through the Smart ESC Programming Box

High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

Limited 1-year warranty

Overview:

The Spektrum Firma 40 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as motor current, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

PRO-LEVEL DRAG BRAKE ADJUSTMENT

The Spektrum Firma 40 amp Brushed Smart ESC features a huge range of drag brake adjustability, allowing for drivers to expertly tune their models depending on their driven train and vehicle weight. Featuring fine levels of adjustability for Drag Brake Percentage and Drag Brake Rate that is perfect for tuning your crawlers and scalers for expert level rock crawling performance

WATERPROOF WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

MULTIPLE PROGRAMMING OPTIONS MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!

ONE-WIRE TELEMETRY ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including voltage, temperature, and motor current.*

Produkt Eigenschaften:

Auto-AusJa

BECJa

BEC Continous Current4A (Shared Between Receiver and Aux Light Outputs)

BEC Voltage6V / 7.4V User Selectable

Connector Type4mm Bullet, IC3

Input Voltage2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd

Maximaler Dauerstrom40A

Maximum Burst Current160A

Motor Limit540 / 550 Size Motors

MotortypBürstenmotor

Niederspannungsabschaltung ProgrammierbarJa

Product ApplicationCrawling, Surface

Product Height0.71" (18 mm)

Product Length1.41" (36 mm)

Product Weight1.69 oz (48 g)

Product Width1.18" (30 mm)

ProgrammierbarJa

RückwärtsJa

Stromstärke40A

TechnologySmart

TurnsBelow 8.4V; Down to 12T / Below 12.6V; Down to 35T

VorneJa

WasserabweisendJa
