- Artikel-Nr.: 198358288
- Hersteller-Nr.: SPMXSM1100
- Bis 16 Uhr bestellt, Morgen Geliefert!
- 30 Jahre RC Modellbau Erfahrung
- Top Service von Profi Modellbauer
- Über 500 Hersteller - 200`000 Artikel
Spektrum Firma 780Kv Brushless Motor Key Features Heat sinking designed CNC aluminum housing... mehr
Produktinformationen "Spektrum Firma 780Kv Brushless Motor"

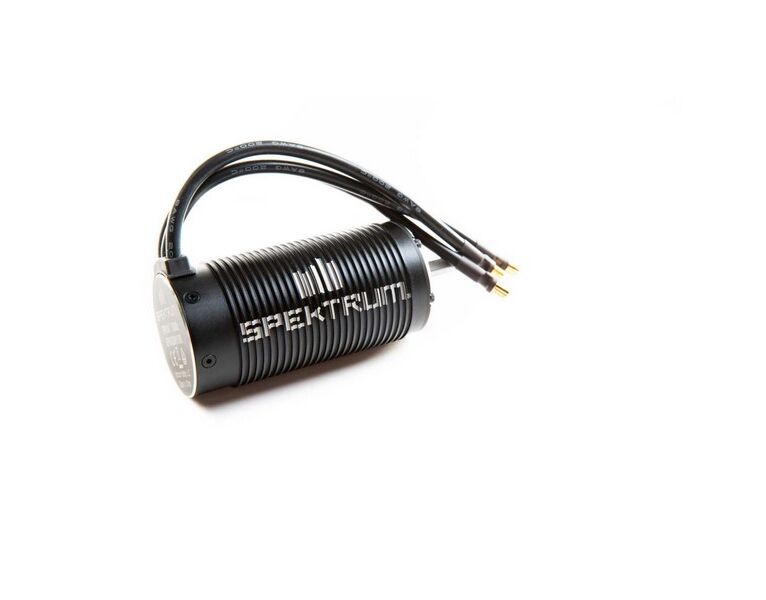

Spektrum Firma 780Kv Brushless Motor
Key Features
Heat sinking designed CNC aluminum housing
8S LiPo power capable
Hgh efficiency design
High-quality 4-pole sintered rotors
Includes 6.5mm gold plated bullet connectors
Precision ball bearings and hardened steel 8mm shaft
Overview
Perfect option for 1/5th scale models looking to run a 8S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.
Needed to Complete
Electronic Speed Control such as the Firma 160 Smart ESC
What's in the box?
Spektrum Firma 5613-780Kv Sensorless 1/5 Brushless Motor with 6.5mm Gold Plated Bullet Connectors
Product Specifications
Bushing Or Bearing Bearing
Cells 4-8S LiPo
Efficiency 90%
Input Voltage 12-35.2V
Maximum Continuous Current 200A
Motor Design Inrunner
Motor Type Brushless
Number of Poles 4
Outer Diameter 2.2 in (56mm)
Output 7000W
Overall Length 4.4" (113mm)
Product Weight 43oz (1220g)
Recommended Speed Control Spektrum Firma 160 Smart ESC
RPM/Volt (Kv) 780Kv
Shaft Diameter 5/16" (8mm)
Wire Gauge 10 AWG
Key Features
Heat sinking designed CNC aluminum housing
8S LiPo power capable
Hgh efficiency design
High-quality 4-pole sintered rotors
Includes 6.5mm gold plated bullet connectors
Precision ball bearings and hardened steel 8mm shaft
Overview
Perfect option for 1/5th scale models looking to run a 8S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.
Needed to Complete
Electronic Speed Control such as the Firma 160 Smart ESC
What's in the box?
Spektrum Firma 5613-780Kv Sensorless 1/5 Brushless Motor with 6.5mm Gold Plated Bullet Connectors
Product Specifications
Bushing Or Bearing Bearing
Cells 4-8S LiPo
Efficiency 90%
Input Voltage 12-35.2V
Maximum Continuous Current 200A
Motor Design Inrunner
Motor Type Brushless
Number of Poles 4
Outer Diameter 2.2 in (56mm)
Output 7000W
Overall Length 4.4" (113mm)
Product Weight 43oz (1220g)
Recommended Speed Control Spektrum Firma 160 Smart ESC
RPM/Volt (Kv) 780Kv
Shaft Diameter 5/16" (8mm)
Wire Gauge 10 AWG
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Max. Betriebspannung: | 29.6 Volt |
Leistung max. Watt ca.: | 7000 |
Drehzahl Kv pro Volt ca.: | 750 |
Anzahl Pole: | 4 |
Lipo Zellenzahl max.: | 8 |
Motor Art.: | Brushless |
Motor Baugrösse: | 1/5 - 1/6 Big Block |
Anschluss Motor: | 6.5 mm |
Regler Art: | Brushless Sensorless |
Welle Durchmesser mm: | 8 mm |
Länge mm ca.: | 113 |
Durchmesser mm ca.: | 56 |
Gewicht g ca.: | 1220 |
Artikel Eigenschaften "Spektrum Firma 780Kv Brushless Motor"
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Max. Betriebspannung: | 29.6 Volt |
Leistung max. Watt ca.: | 7000 |
Drehzahl Kv pro Volt ca.: | 750 |
Anzahl Pole: | 4 |
Lipo Zellenzahl max.: | 8 |
Motor Art.: | Brushless |
Motor Baugrösse: | 1/5 - 1/6 Big Block |
Anschluss Motor: | 6.5 mm |
Regler Art: | Brushless Sensorless |
Welle Durchmesser mm: | 8 mm |
Länge mm ca.: | 113 |
Durchmesser mm ca.: | 56 |
Gewicht g ca.: | 1220 |
