Spektrum MOTOR FIRMA 2800Kv BRUSHLESS MOTOR BL Sensored Crawler Motor 3.5mm Goldstecker
Key Features
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
Perfect for high speed off-road applications such as rock bouncers and rock racers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.
3.5mm Gold Plated Bullet Connectors

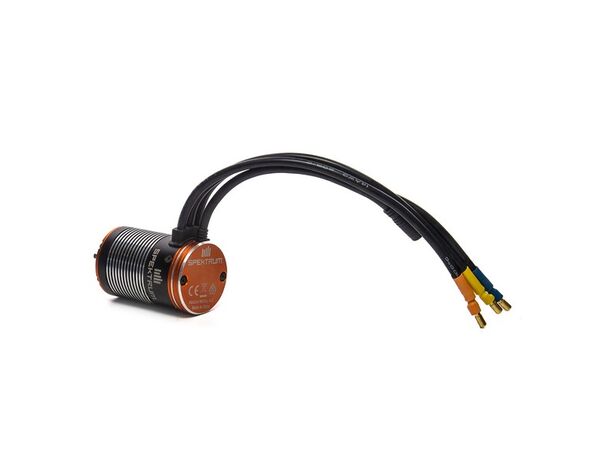

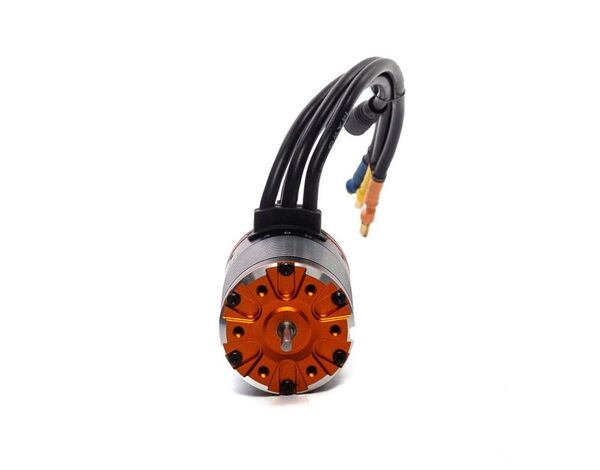

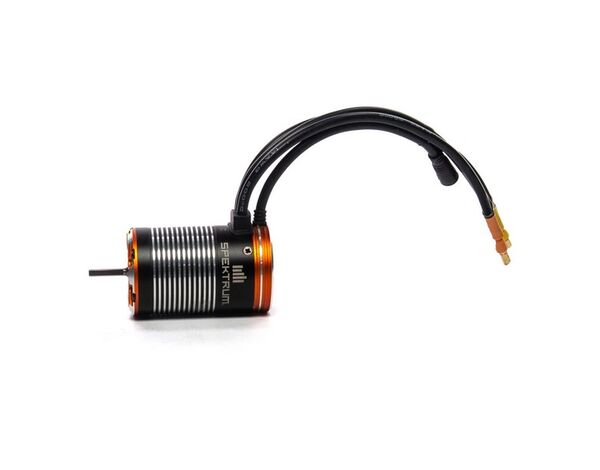

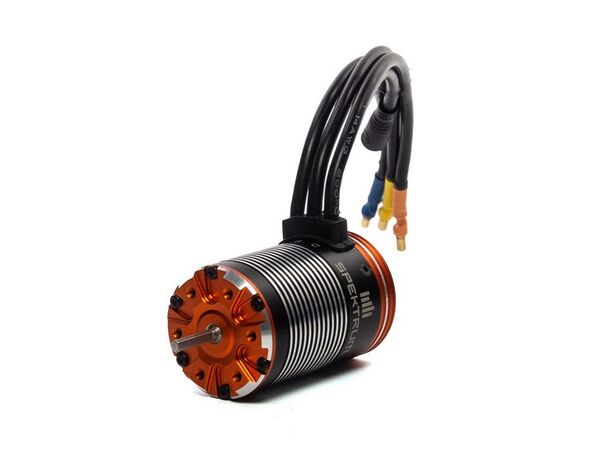

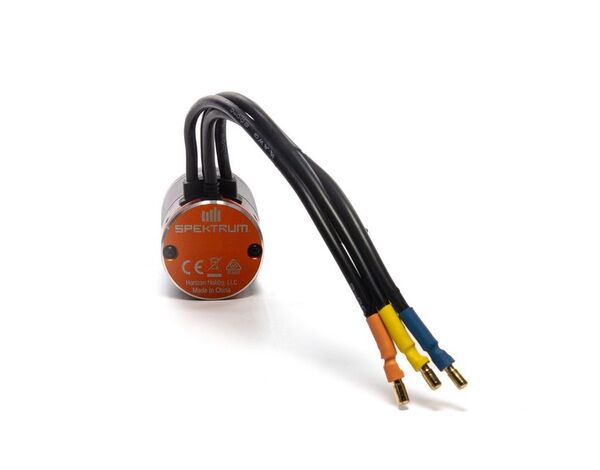

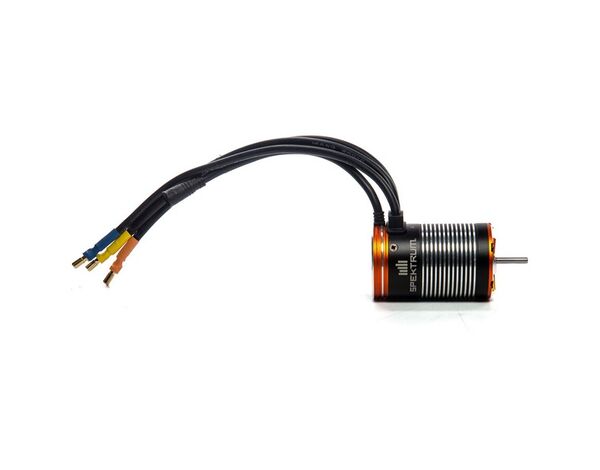

Firma 2800Kv Brushless Sensored Crawler Motor
Overview
The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The
Features
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
Perfect for high speed off-road applications such as rock bouncers and rock racers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors

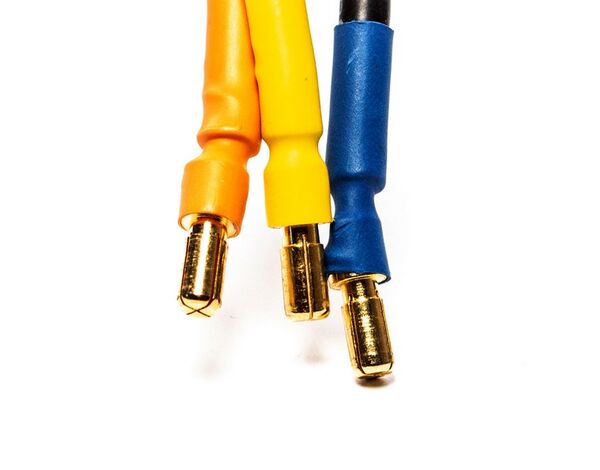

3.5mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Produkt Eigenschaften
Connector Type3.5mm Bullet
Motor Class1/10 Scale
Motor Size540-2800Kv Brushless Sensored
Product Length2.27" (58 mm)
Bushing Or BearingBearing
ForwardYes
ReverseYes
Constant Wattage500-749W
Maximum Continuous Current50A
Integrated ESCNo
Outer Diameter1.42" (36 mm)
Input Voltage7.4 - 11.1V
Kv Rating2500-2999Kv
Motor Output Lead3.5mm
Product ApplicationCrawling, Surface
Recommended Speed ControlSpektrum Firma 60A Sensored Brushless Smart Crawler ESC
RPM/Volt (Kv)2800Kv
SensoredYes
Sensor TypeSensored FOC
Application1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Number of Poles4
Shaft Diameter0.125" (3 mm)
Water-ResistantYes
Motor TypeBrushless
