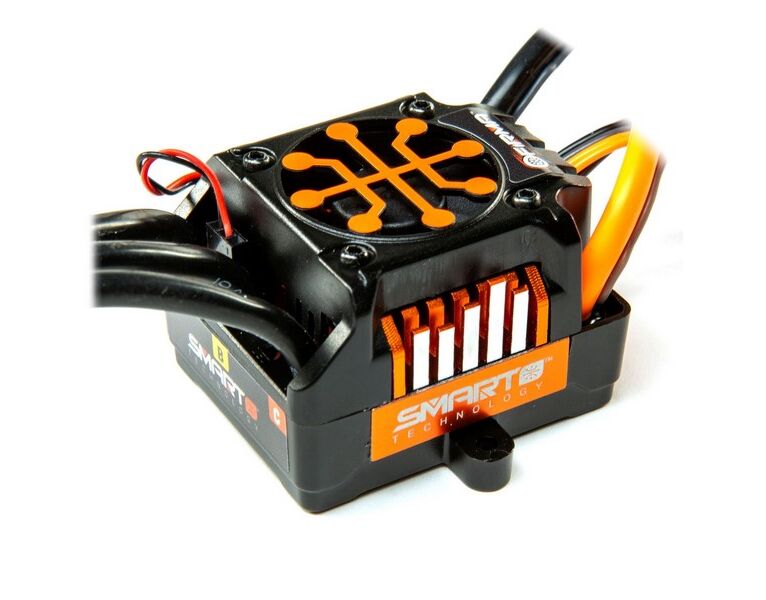

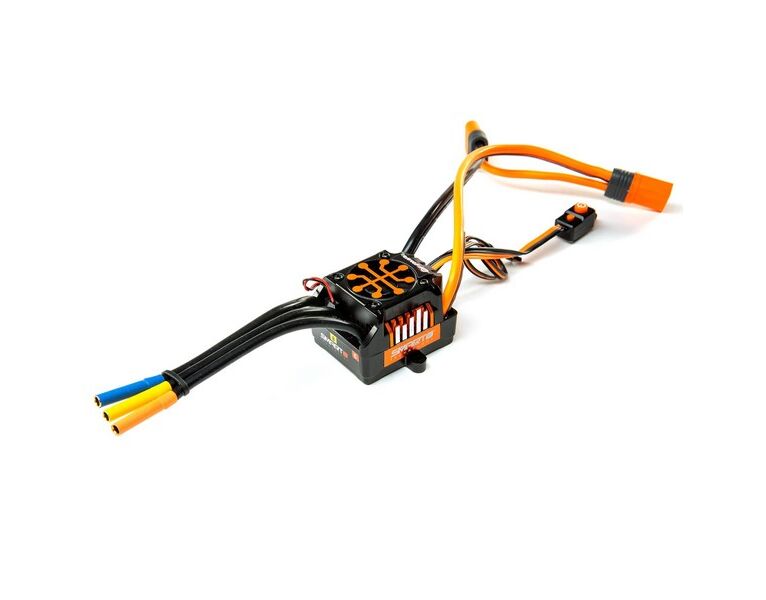

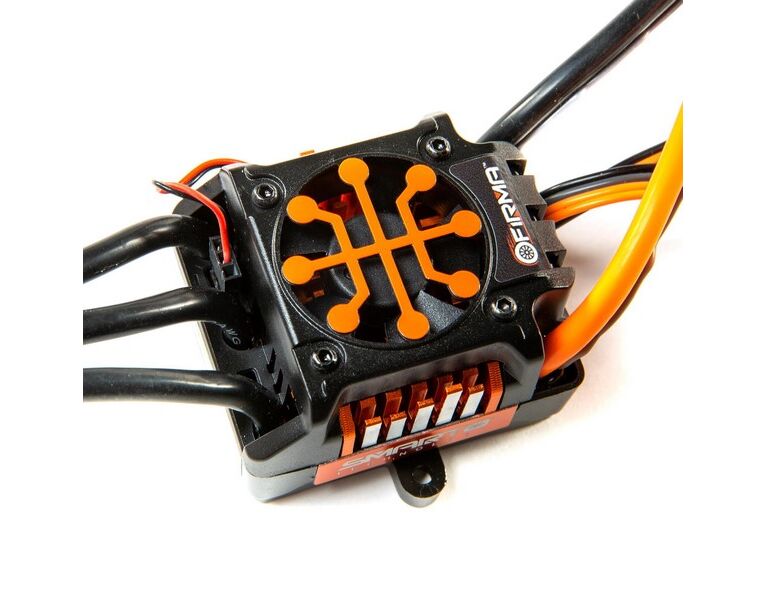

Spektrum Firma 150A V2 Brushless Fahrtenregler Smart ESC 6S Orange Sensorless - IC5

SPMXSE1155 Spektrum REGLER CAR 150A V2 BRUSHLESS SMART mit 2x IC5 Stecker Seriell

In The Box

(1) Spektrum™ Firma™ Smart ESC

(1) Spektrum Smart Sticker Sheet

(1) Product Manual

Needed to Complete

Spektrum™ Surface Receiver

Spektrum Smart Technology LiPo Battery

Spektrum Transmitter

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable. This 150A brushless ESC gives your large-scale vehicle the ultimate drive while feeding real-time telemetry straight to your radio. Install a Firma Smart ESC and take your driving experience to a new level!

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

Smart all-in-one telemetry

Fast, powerful 32-bit ARM M4 processor

Waterproof

Multiple options for easy programming:

Button programming

Smart ESC Programming Box

SmartLink USB Updating and Programmer application

Multi-point protection:

Over-current protection

Automatic LiPo low-voltage cutoff

Thermal protection

Failsafe protection

Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

Compact for easy installation in most applications

Ready to install — no soldering required

Rugged plastic case with mounting tabs

Aluminum heat sink for high efficiency

Cooling fan

Adjustable high-power BEC

Firmware updatable through the Smart ESC Programming Box

High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

Limited 1-year warranty

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

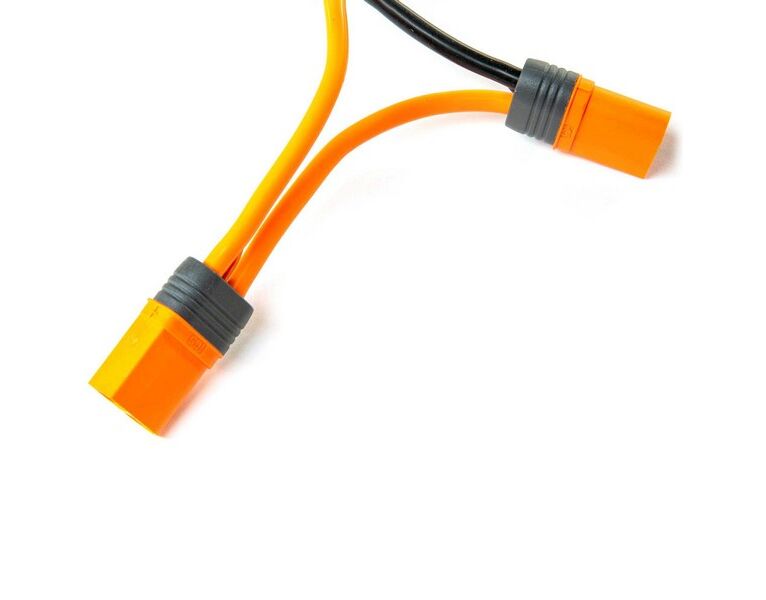

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.* *See the compatibility chart for more information.

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Produkt Eigenschaften

Akku EingangskabelIC5

Amperage120A or larger

AnwendungOberfläche

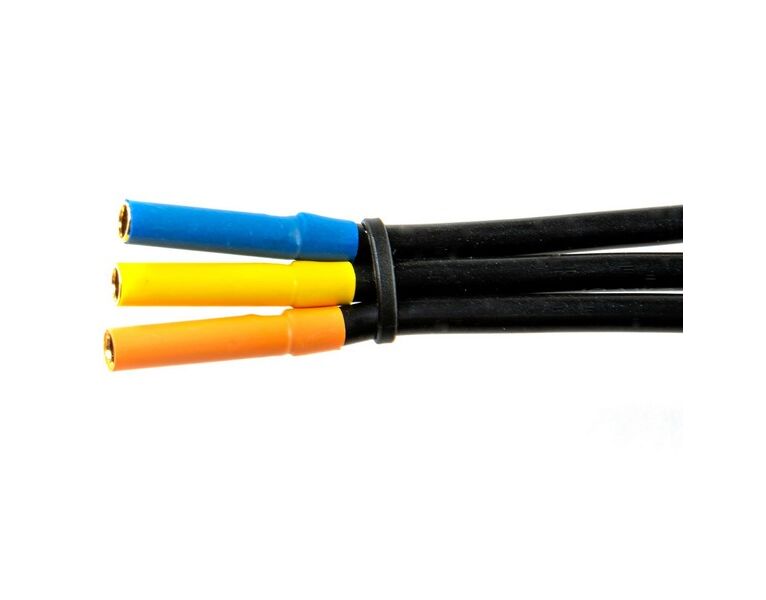

Ausgangsanschluss4mm Bananenstecker

Auto-AusJa

BECJa

BEC TypeLinear

BEC Voltage6V

BremsenJa

Input Voltage3S - 6S LiPo

Maximum Burst Current950A

Maximum Continuous Current150A

MotortypBrushless

Niederspannungsabschaltung ProgrammierbarJa

Product Height1.5" (38 mm)

Product Length2.3" (58 mm)

Product Weight8.4oz (238g)

Product Width1.9" (48 mm)

ProgrammierbarJa

Programming OptionsButton, Programming Box, Smartlink App, On Screen Text Gen

RückwärtsJa

TechnologySmart

ÜberladeschutzJa

VerbindertypIC5

VorneJa

WasserabweisendJa
