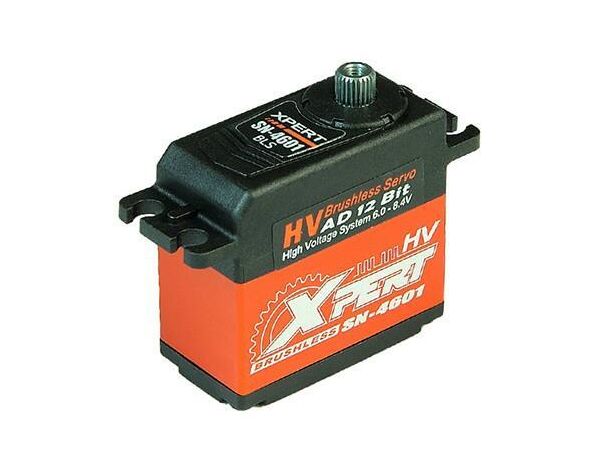

SN4601HV Xpert Servo HV 8.4V 19.9kg/0.1sec.

SN-4601-HV Xpert Servo High-Voltage Standard

8,4V Torque 19,91 Kg-cm, Speed 0,106 sec/60°

25 Zähne Verzahnung

Features

Brushless motor design provides extremely high speed, top efficiency, and low power consumption.

4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.

Aluminum middle case for optimized thermal dissipation.

Strong Metal Gear

Glitch-free

Sophisticated error correction

High-Speed, High-precision 12-bit AD converter and CPU calculation

Fail safe

Over current protection

Over temperature protection

Start sonorant

Type Standard

Product Name SN-4601-HV

Part Name SN-4601-HV

Power Supply 6.0V~8.4V

Speed (sec/ 60°) @6.0V: .148 sec/60° @7.4V: .120 sec/60° @8.4V: .160 sec/60°

Torque (oz/in) @6.0V: 197.37 oz-in @7.4V: 243.46 oz-in @8.4V: 276.35 oz-in

Torque (kg/cm) @6.0V: 14.22 kg-cm @7.4V: 17.54 kg-cm @8.4V: 19.91 kg-cm

Dimensions 40x37.80x20 mm

Weight 66.3 g

Frequency 200/333 HZ

Range 50~400 Hz

Center Position 1520 μs

Applications Car / Helicopter

Uper and Bottom Case XP-01

Hardware Parts Xpare-01

Gear Set XGS72910
