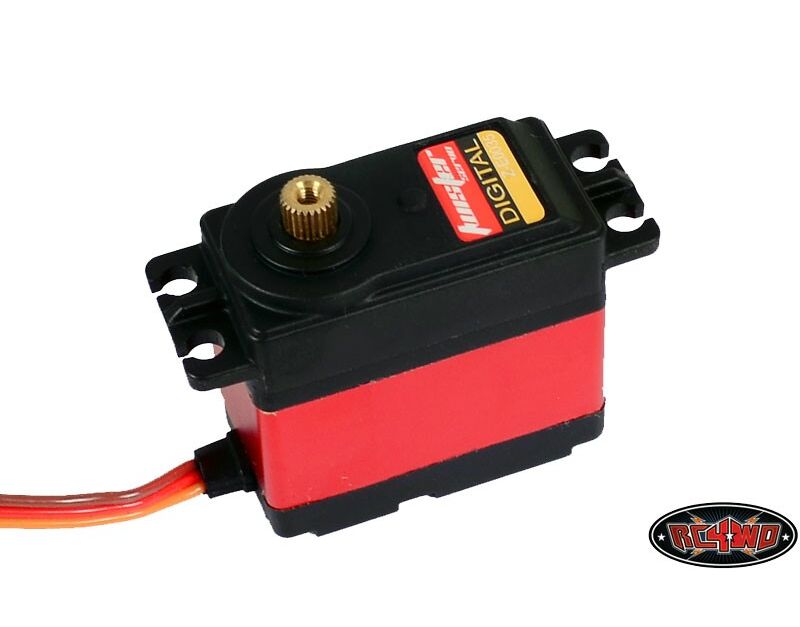

RC4WD Twister High Torque Metal Gear Digital Servo

Z-E0035 RC4WD Twister High Torque Metal Gear Digital Servo

The Twister High Torque Metal Gear Digital Servo is built to provide the help you need with many different applications. Can be used for Steering, Throttle, Winch and other areas. Metal gears to give you worry free construction. The aluminum case design not only looks good but also allows for cooler and smoother operating temps.

Specifications:

Dimensions (mm): 40.8 x 20.1 x 40.0 / (inch): 1.6 x .80 x 1.57
Weight (g): 62 / (oz): 2.18
Speed (@4.8V sec/60): .15
Torque (@4.8V oz-in): 118
Speed (@6.0V sec/60): .13
Torque (@6.0V oz-in): 153
Current (4.8v to 6.0v)
Unload Current: 300mA / 4.8V; 400mA/6V
Full Load Current: 1000mA / 4.8V; 1200mA/6V
Gear: Metal
Bearing: 2BB
Center Case: Aluminum
Servo-motor lock-rotor protection
High efficiency, low power consumption
Metal gears ensure long life and durability
Waterproof

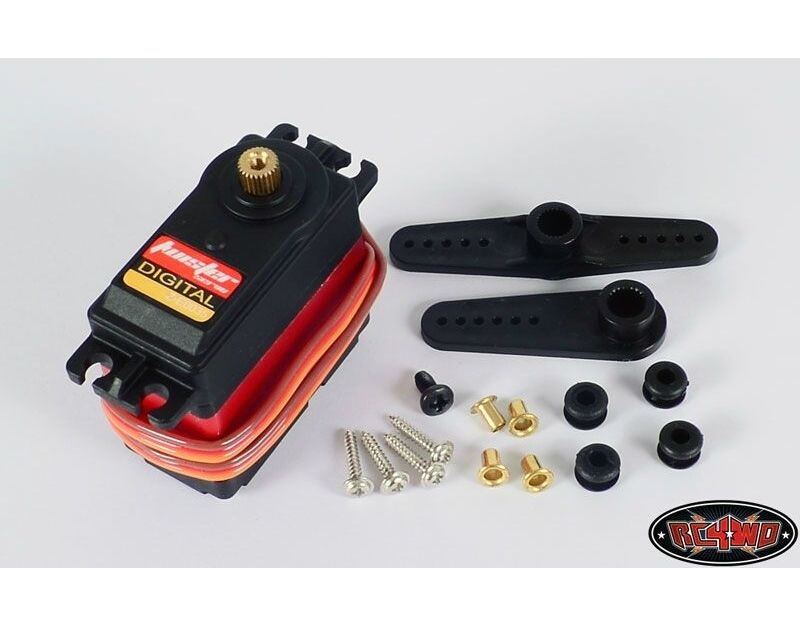

What's Included:

1x Twister High Torque Metal Gear Digital Servo
2x Servo Arms
4x Mounting Screws
1x Servo Horn Screw
4x Brass Mount Bushings
4x Rubber Mounting Tabs
