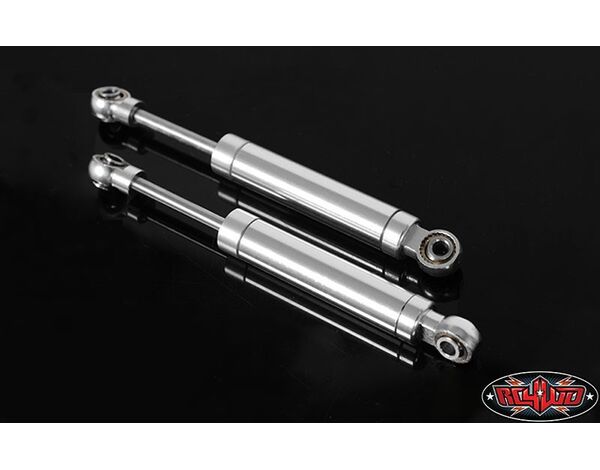

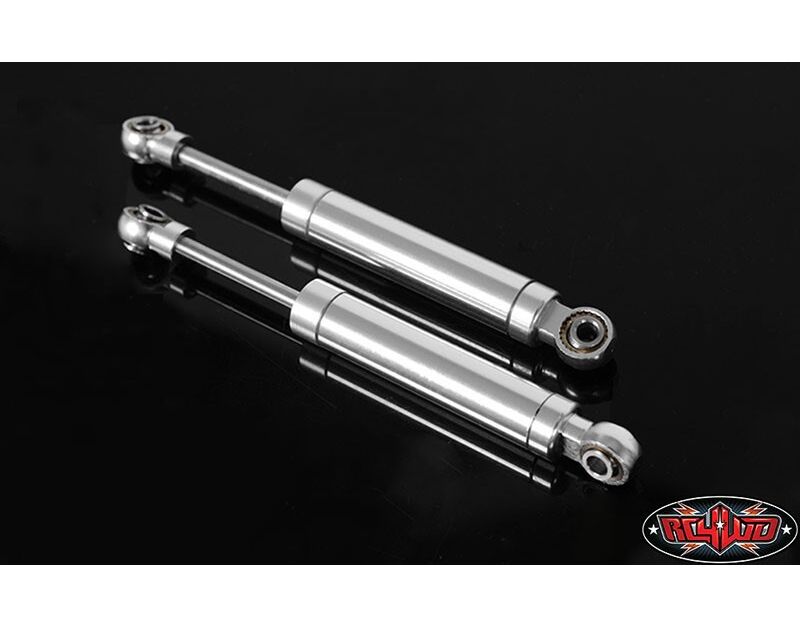

RC4WD The Ultimate Scale Shocks 90mm (Silver)

Z-D0001 RC4WD The Ultimate Scale Shocks 90mm (Silver)

At 9mm OD, this is the most Scale and precision made Suspension Shocks Available on the market. Along with our next gen fine tuned super soft internal Springs.

Specifications:

CNC Machined
Billet Aluminum
Heat Treated
Ball Width: 0.25in / 6.45mm
Ball Lip OD: 0.19in / 4.8mm
Ball Inner OD: 0.12in / 3.1mm
Hole to Hole (Compressed): 2.68in / 68mm
Hole to Hole (Uncompressed): 3.66in / 90mm
Overall Length: 3.94in / 100mm
Travel Length: 0.94in / 24mm
Shock Body OD: 0.35in / 8.8mm
Shaft OD: 0.12in / 3mm
Each Weight: 0.40oz / 11g

What's Included:

2x RC4WD Ultimate Scale Shocks Absorbers (90mm)

Notes:

Fits Gmade Sawback
For complete you need 2 set of this product
These shocks do not use oil. Use a small amount to keep the shaft lubricated only.
These shocks have very small threads on the shock cap. You can easily install the cap wrong and cause the threads to strip. Please pay careful attention when removing and installing the shock cap.
Fits RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 "Disc") (Front / Rear)
Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") (Rear)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
