RC4WD Superlift Superide 90mm Scale Shocks

Z-D0015 RC4WD Superlift Superide 90mm Scale Stossdämpfer

Specifications:

CNC Machined

Billet Aluminum

Smooth White Painted Finish

Internal Spring Design

New Internal Design

Included Superlift Decal

Uses Shock Boots (details below)

Hole to Hole (Compressed): 2.63in / 67 mm

Hole to Hole (Uncompressed): 3.54in / 90mm

Overall Length: 3.89in / 99mm

Travel Length: 1.02n / 26mm

Shock Body: 0.39in / 10mm

Shaft Diameter: 0.13in / 3.4mm

Decal Size (Length): 1.14in / 29mm

Decal Size (Width): 0.33in / 8.6mm

Each Weight: 0.45oz / 13g

What's Included:

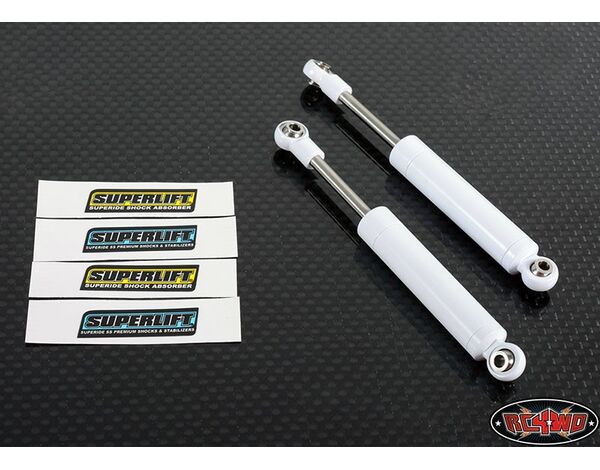

2x RC4WD Superlift Superide 90mm Scale Shock Absorbers

2x Superlift Superide SS Decal 9.3mm x 28mm (Blue)

2x Superlift Superide Decal 9.3mm x 28mm (Yellow)

2x Superlift Superide Decal 5.6mm x 19mm (Blue)

2x Superlift Superide Decal 5.6mm x 19mm (Yellow)

1x Superlift Decal Sheet

Optional Parts:

Internal Springs for ARB and Superlift 90mm Shocks (Z-S1181)

Notes:

Fits Gmade Sawback

Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes

For Black Rubber Boot Z-S0891

For Red Rubber Boot Z-S0948

For Yellow Rubber Boot Z-S0962

For Blue Rubber Boot Z-S0961
