RC4WD R4 Ultimate Scale Single Speed Transmission

Z-U0031 RC4WD R4 Ultimate Scale Single Speed Transmission

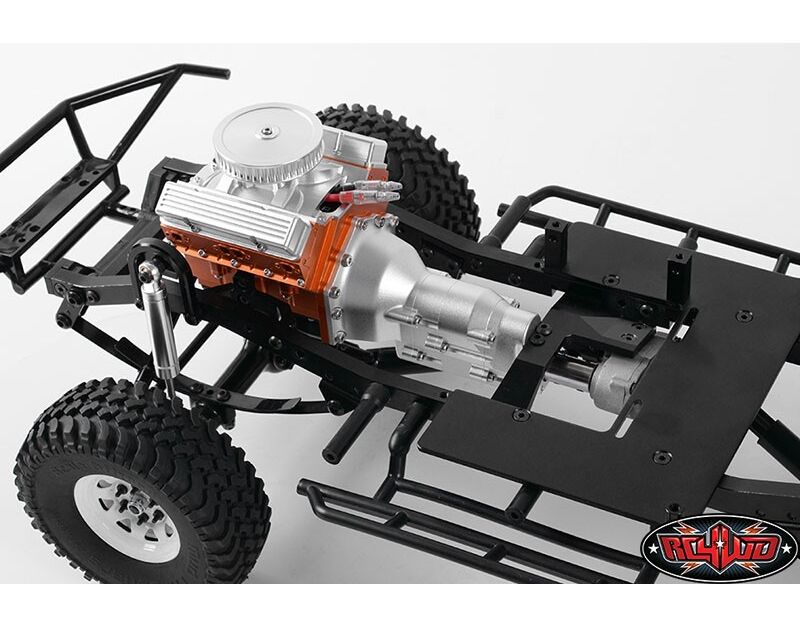

This is the RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission. This transmission will be sure to add a whole new level of realism to your build. Pair it with our RC4WD 1/10 V8 Engine to complete your build.

Specifications:

CNC Machined
Billet Aluminum
Body Width: 1.99in / 50.6mm
Body Length: 3.07in / 78mm
Body Height: 2.36in / 60mm
Output Shaft Length: 0.33in / 8.5mm
Output Shaft OD: 0.19in / 5mm
Gear Ratio: 10.1:1
Weight: 5.86oz / 166g

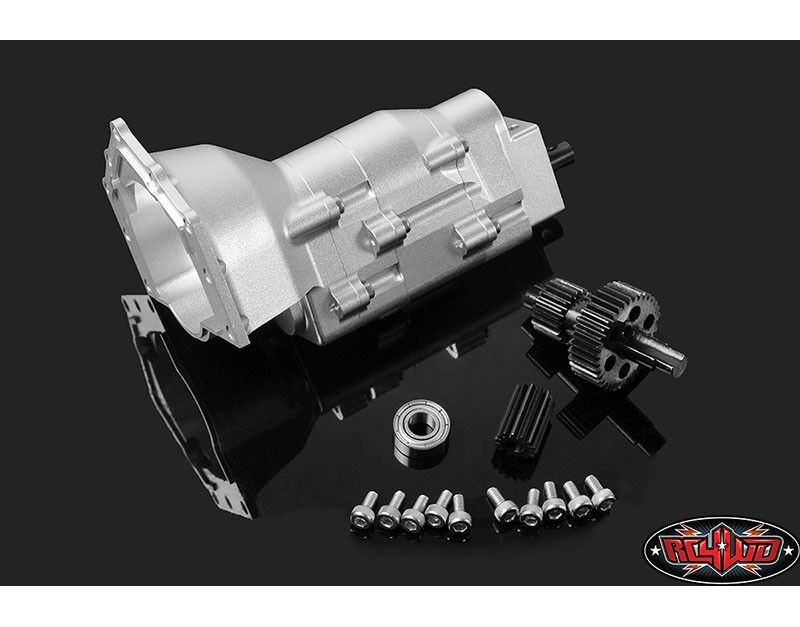

What's Included:

1x RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
1x 14T 48P Pinion Gear
1x 36T / 20T 48P Gear
10x M2.5 x 5mm SHCS (Silver) (Z-S1207)
1x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
1x TCI Transparent Decal Sheet
1x TCI Small Decal Sheet


Required Parts:

1/10 V8 Engine (Z-S1043)

Optional Parts:

Trail Finder 2 V8 Engine Mounts (Z-S1239)
Motor Mount for R4 Transmission (Z-S1627)
