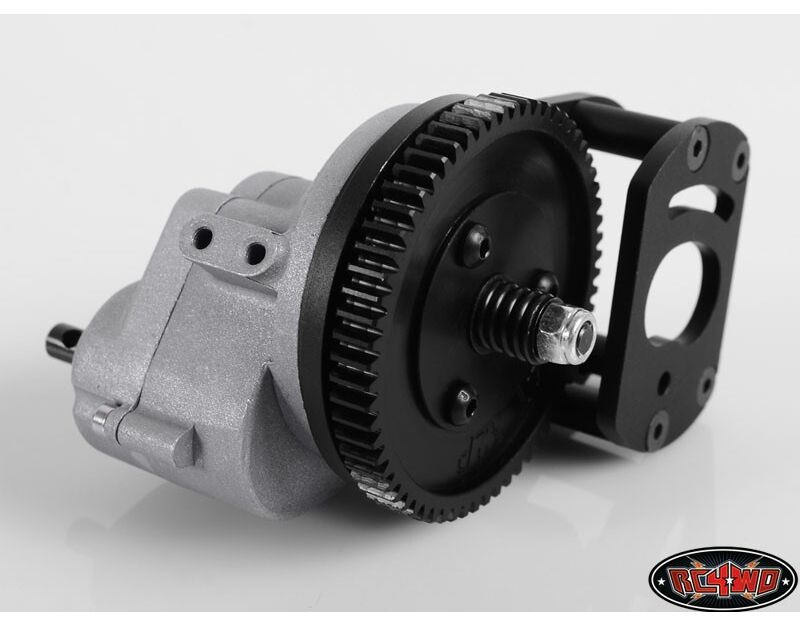

RC4WD R3 Scale Single Speed Transmission

Z-U0028 RC4WD R3 Scale Single Speed Transmission

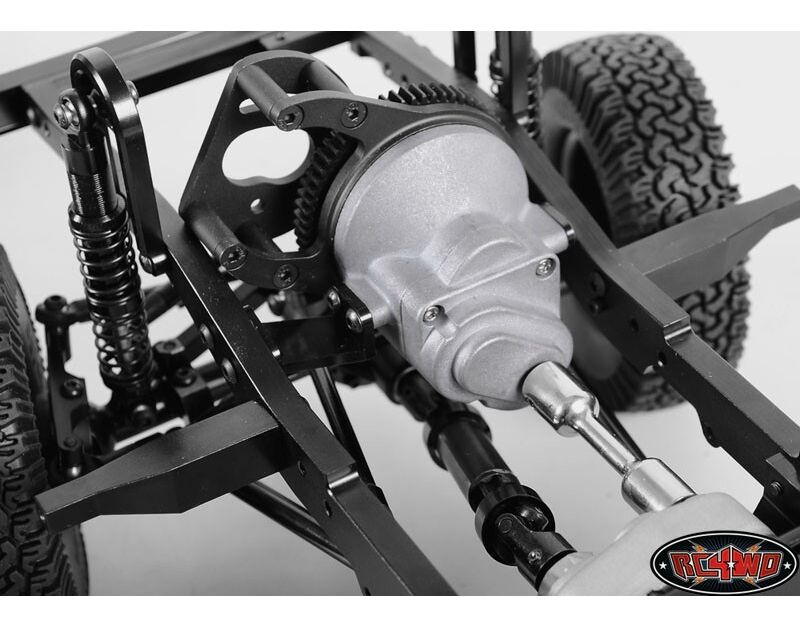

This is the all new R3 Scale Single Speed transmission that is used in the Gelande 2.

Specifications:

Cast Metal Casing
Clockable Motor Mounting (10 different positions)
CNC Aluminum Motor Mount
Single Speed
Internal Gear Ratio: 1.78:1
Gear Ratio w/64t spur and 14t pinion: 8.13:1
Wide Steel .8 Mod Pinion Gears
Delrin Spur Gear
Slipper Clutch Design
Changeable Gearing Options
Compatible With Other Brand Pinions and Spur Gears
Output Shaft OD: 0.19" / 5mm

What's Included:

1x R3 Scale Single Speed Transmission
1x 14t .8 Mod Hardened Steel Pinion Gear (Z-S0430)
1x M3 x 3mm Set screw (Z-S0124)

Required Parts:

R3 Single Speed Transmission Mounts (Z-S0802)

Optional Parts:

Metal Drive Coupling for Gelande 2 (Z-S0803)
RC4WD V8 Engine Cover with Metal Intake Set for R3 Transmission (Z-S1749)
