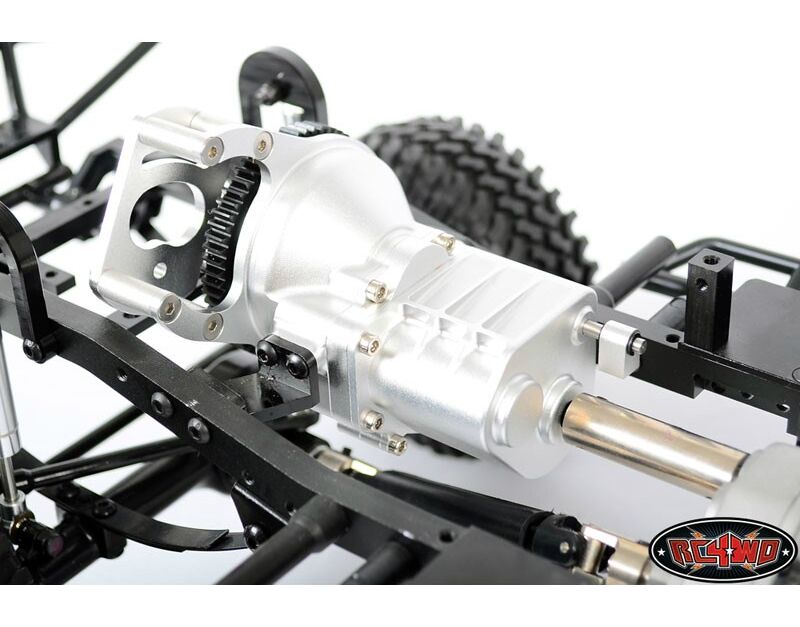

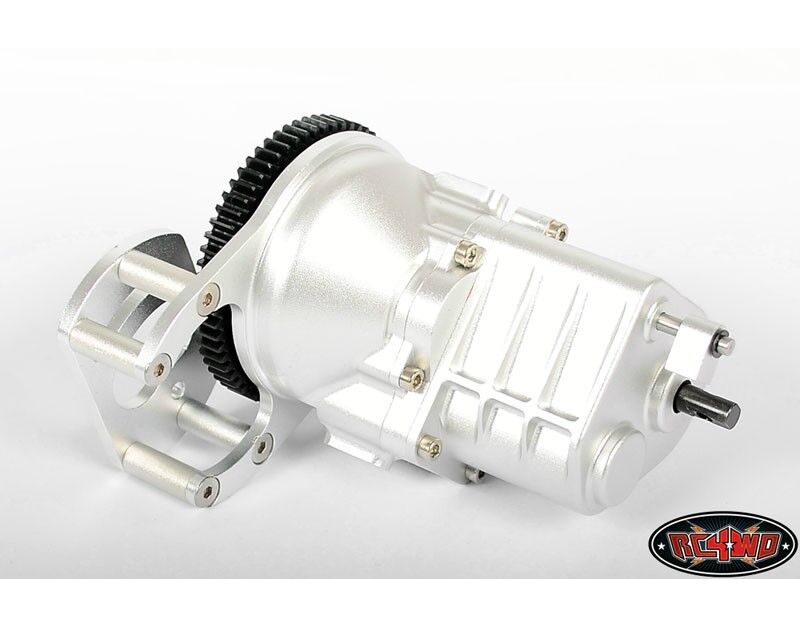

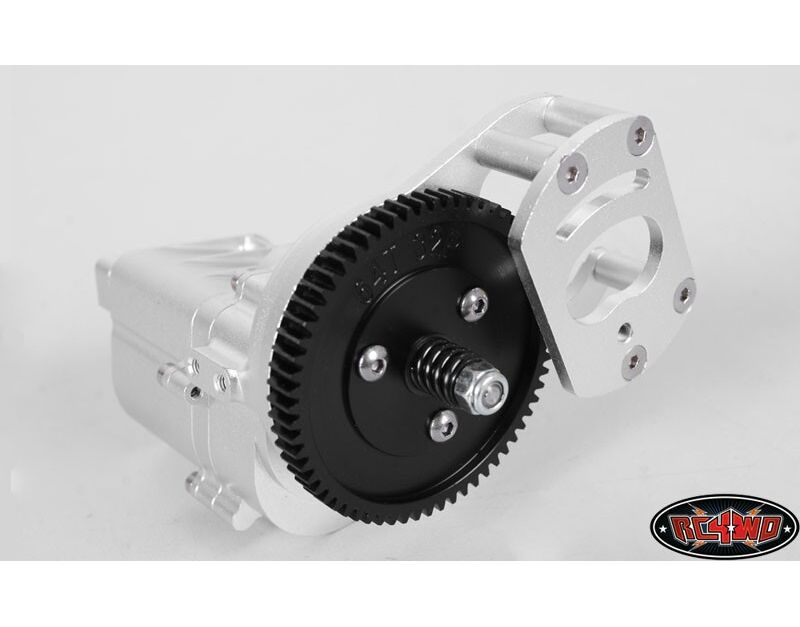

RC4WD R3 Scale 2 Speed Transmission

Z-U0025 RC4WD R3 Scale 2 Speed Transmission

Specifications:

CNC Machined Billet Aluminum Case

Clockable Motor Mounting (10 different positions)

2 Speed

Gear Ratios Pinion / Spur 14/64 = 4.57:1

1st gear = 3.47:1

2nd gear = 1.27:1

Wide Steel 32 pitch gears

Delrin Spur Gear

Slipper Clutch Design

Changable Gearing Options

Compatible With Other Brand Pinions and Spur Gears

Output Shaft OD: 0.19" / 5mm

Height: 2.44in / 62mm

Length: 4in / 101.6mm

Width: 2.91in / 74mm

Weight: 9.7oz / 275g

What's Included:

1x R3 Scale 2 Speed Transmission

1x 14t 32p Hardened Steel Pinion Gear (Z-S0430)

1x M3 x 3mm Set screw (Z-S0124)

Replacement Parts:

R3 2 Speed Transmission Shafts (Z-S0689)

R3 2 Speed Transmission Shift Clutch (Z-S0009)

R3 Motor Mount Plate (Z-S0733)

R3 Shift Rod Linkage Mount Ver II (Z-S0675)

Shift Fork for R3 2 Speed Transmission (Z-S0637)

Replacement Gears for R3 2 Speed Transmission (Z-G0056)

14t 32p Hardened Steel Pinion Gear (Z-S0430)

Metal Drive Coupling for Trail Finder 2 (Z-S0599)

Optional Parts:

RC4WD V8 Engine Cover with Metal Intake Set for R3 Transmission (Z-S1749)

Required Parts:

R3 Tranny Mounts For Trail Finder 2 (Z-S0677)

TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
