RC4WD King Off-Road Dual Spring Shocks (100mm Med)

Z-D0063 RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (2)

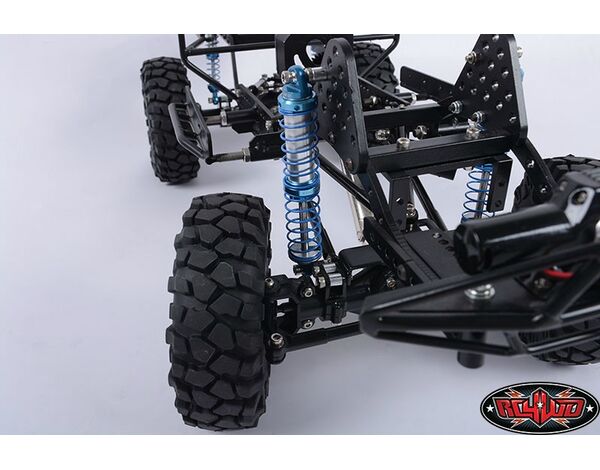

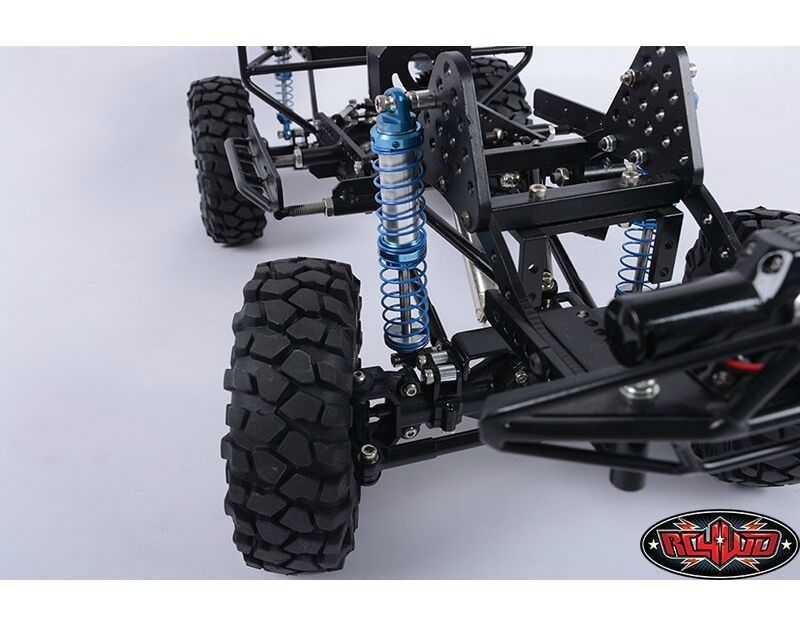

This is the all new Licensed Dual Spring Shock to hit the market. Licensed from King Off-Road shocks. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks.

Now in a larger body diameter.


Specifications:

Machined Billet Aluminum
King on Top and Retainer Ring
Dual Spring Design
Steel Rod End Ball
Ball Width: 0.25in / 6.3mm
Ball Lip Diameter: 0.19in / 4.8mm
Ball ID: 0.12im / 3mm
Hole to Hole (Compressed): 2.75in / 70mm
Hole to Hole (Uncompressed): 3.93in /100mm
Overall Length: 4.3in / 109.3mm
Travel Length: 1.18in / 30mm
Shock Body OD: 0.49in / 12.6mm
Shaft OD: 0.15in / 3.97mm
Spring Body OD: 0.66in / 16.98mm
Spring Body ID: 0.58in / 14.8mm
Each Weight: 0.91oz / 26g

What's Included:

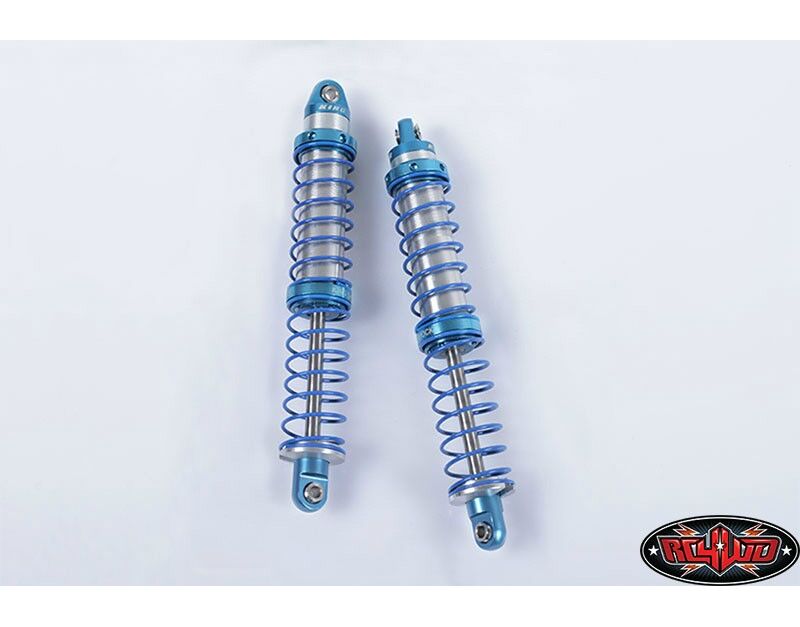

2x RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD)
1x King Decal Sheet
