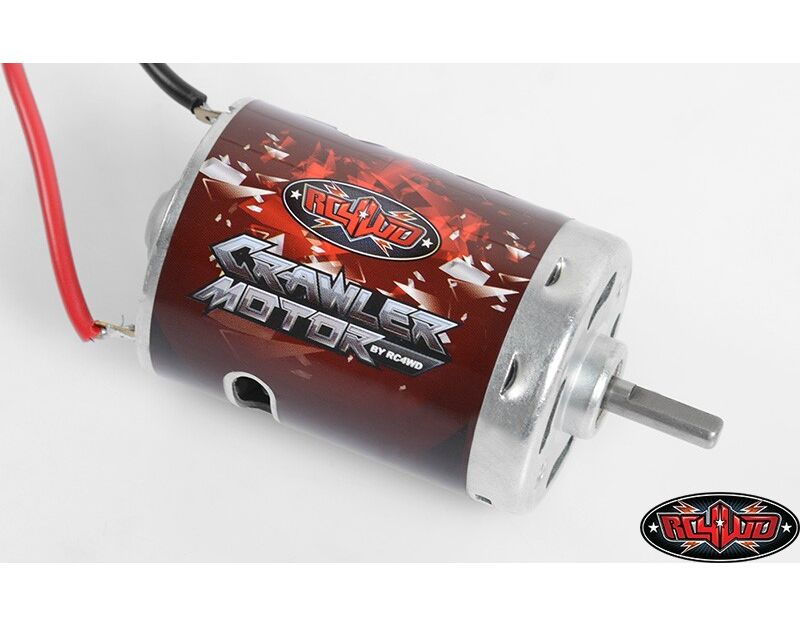

RC4WD 750 Crawler Brushed Motor

Z-E0074 RC4WD 750 Crawler Brushed Motor

Larger Can size 750 Brushed Motor that can be used in multiple applications.

Specifications:

Custom Made 750 Steel Case
Chrome Plated Case
Build in Capacitor for Minimizing Glitch
High Torque Magnet and Rotor
Tuned for Rock Climbing and Scale Driving

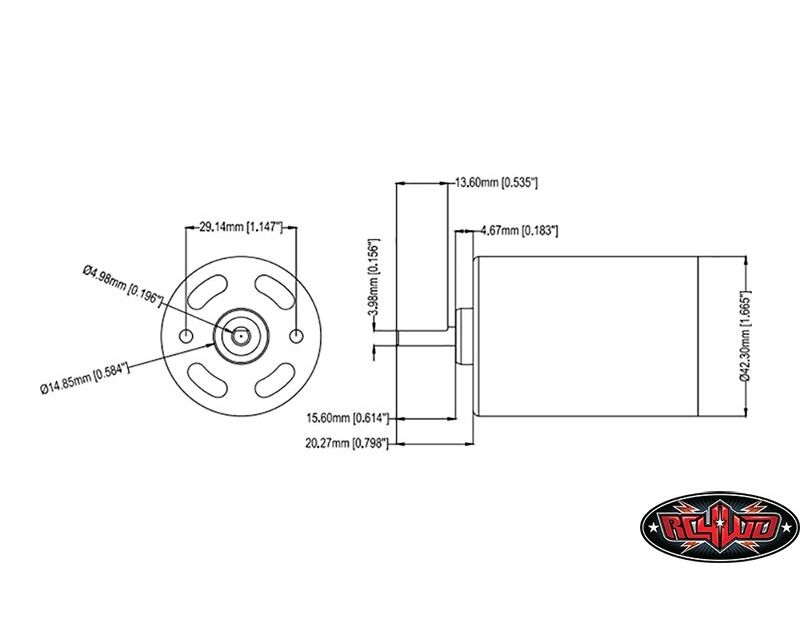

Body OD: 1.65in / 42mm
Length: 2.36in / 60mm
Output Shaft Length: 0.67in / 17mm
Output Shaft OD: 0.2in / 5mm
Min and Max Voltage Range: 2.4V-30V
Weight: 9.52oz / 270g


At No Load

RPM: 15050
Current: 1.88 AMPS


At Stall (Extrapolated)

Torque: 2100 mN-m
Current: 30.8 AMPS


At Maximum Efficiency

Efficiency: 56.41%
Torque: 416.0 mN-m
Speed: 12067 RPM
Current: 7.61 AMPS
Output: 51.5 Watts


At Maximum Power Output

Output: 81.8 Watts
Torque: 1049.5 mN-m
Speed: 7525 RPM
Current: 16.34 AMPS

What's Included:

1x RC4WD 750 Crawler Brushed Motor

Notes:

Perfect fit for the Killer Krawler II Axles
