ProTek RC High Voltage Low Profile High Torque Metallgetriebe-Servo 140T High Voltage
- Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
- 30 Jahre RC Modellbau Erfahrung
- Top Service von Profi Modellbauer
- Über 500 Hersteller - 200`000 Artikel
Bitte melden Sie sich an, damit wir Sie über eine Antwort benachrichtigen können

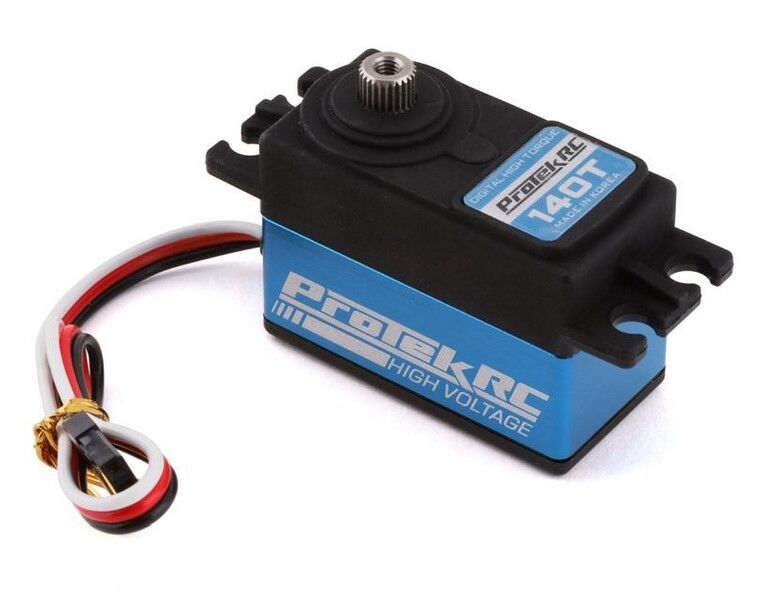

ProTek RC High Voltage Low Profile High Torque Metallgetriebe-Servo 140T High Voltage
Features:
Low-Profile case saves space and weight
Ideal for any 1/12 to 1/10 scale vehicle application
Plastic case with aluminum center band
High voltage circuitry
0.10 transit speed, and 185 oz-in of torque @ 6.0V
0.08 transit speed, and 215 oz-in of torque @ 7.4V
0.07 transit speed, and 230 oz-in of torque @ 8.4V
Full metal gears and dual ball bearings
160mm long 22awg connector wire
Coreless motor
Servo Model: 140T
Recommended Application1/12 to 1/10 scale Surface
Operating Voltage4.8V - 8.4V
Operating Temperature14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V0.10/60° sec
Operating Speed @ 7.4V
0.08/60° sec
Operating Speed @ 8.4V
0.07/60° sec
Dynamic Torque @ 6.0V
185 oz-in (13.3 kg-cm)
Dynamic Torque @ 7.4V
215 oz-in (15.5 kg-cm)
Dynamic Torque @ 8.4V
230 oz-in (16.6 kg-cm)
Motor Type
Coreless Motor
Output Shaft25 Tooth
GearsMetal
Weight49.8g
Pulse/Frequency
1520Us / 333hz
Dimensions39.5x30.5x20mm
Akku
Einsatzbereich:
- Competition Wettbewerb
Breite mm ca.:
- 40
Höhe mm ca.:
- 20
Gewicht g ca.:
- 50
Ladegeräte
Max. Eingangsspannung:
- 8.4 Volt
Material Gehäuse:
Kunstoff / Metall
Motoren Elektro
Motor Art.:
Brushless
Reifen
Modulation:
Digital
Fernsteuerung
Anwendungsbereich:
- Fahrzeuge
- Flugmodelle
Servos
Gehäuse Grösse:
- Low Profile Servo
Stellkraft kg:
- 16
Getriebe:
Metall
Servohörner
Länge mm ca.:
- 30
Balancer Verlängerungen
Passend für Modelltyp:
- 3Racing AuperdD RWD Drift
- 3Racing Cactus 2WD Buggy
- 3Racing M4
- 3Racing Sakura Advance
- 3Racing Sakura Advance S
- 3Racing Sakura D3 Drift
- 3Racing Sakura D4 Drift
- 3Racing Sakura D5S Drift
- 3Racing Sakura Ultimate
- 3Racing Sakura XI Sport
- Asso ProSC10 - Short Course
- Asso RC10 B4 - 2WD Buggy
- Asso RC10 B44 - 4WD Buggy
- Asso RC10 B5 - 2WD Buggy
- Asso RC10 B6 - 2WD Buggy
- Asso RC10 B74 - 4WD Buggy
- Asso RC10 SC6 - Short Course
- Asso RC10 T5 - 2WD Truck
- Asso RC10 T6 - 2WD Truck
- Awesomatix A800
- Awesomatix A800FX FWD
- Carisma CRF-1 F1 Pan Car 1/10
- Carisma CRF-GT Touring 1/10
- CARTEN M210 1/10 M-Chassis
- CARTEN T410 1/10 Touring
- Element Enduro Gatekeeper Rock Crawler - 1/10 - 3S
- Element Enduro Sendero - 1/10 - 2S
- Element Enduro Trail Truck - 1/10 - 3S
- Element Enduro Trailrunner - 1/10 - 2S
- Element Enduro Trailwalker - 1/10 - 2S
- HB D216 2WD Buggy - 1/10
- HB D418 4WD Buggy - 1/10
- Infinity IF11 F1
- Infinity IF14 Touring
- Kyosho Lazer ZX5
- Kyosho Lazer ZX6
- Kyosho Lazer ZX7
- Kyosho Ultima RB5
- Kyosho Ultima RB6
- Kyosho Ultima RB7
- Losi 22S ST
- Losi TLR 22 2WD Buggy 1/10
- Losi TLR 22T Truck 1/10
- Losi TLR TEN-SCTE 2WD Short Course 1/10
- Losi TLR X22-4 4WD Buggy 1/10
- Mugen MTC-2 FWD Touring
- Mugen MTC1
- Mugen MTC2
- Roche Rapide F1
- Roche Rapide P10 Pan Car
- Schumacher Cat 4WD Buggy
- Schumacher Cougar 2WD Buggy
- Schumacher Mission FT
- Schumacher Storm ST 2WD Truck
- Serpent F110 - SF4 - 1/10
- Serpent Medius X20 - 1/10
- Serpent Natrix 748-e - 1/10
- Serpent Project 4X - 1/10
- Serpent Spyder SCT SRX2 - 1/10
- Serpent Spyder SDX4 - 1/10
- Serpent Spyder SRX2 - 1/10
- Sworkz S12
- Sworkz S14
- Team Corally - SBX-410
- Team Corally FSX-10 Formel - 1/10 - F1
- Team Corally SSX-10 1/10 - Pan Car
- Team Magic E4D-MF Pro
- Xray T4
- Xray T4F
- Xray X1
- Xray X10
- Xray XB2
- Xray XB4
- Xray XT2
- Xray XT4
- Yokomo BD10
- Yokomo BD9
- Yokomo YZ-2 2WD Buggy 1/10
- Yokomo YZ-2T 2WD Truck 1/10
- Yokomo YZ-4 4WD Buggy 1/10
Akkustecker
Stecker:
- JR Uniplug
Werkzeug
Wassergeschützt:
Nein
Servohorn Aufnahme:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
