MV30001 ESC MSC-30BR-WP Brushed Fahrtenregler

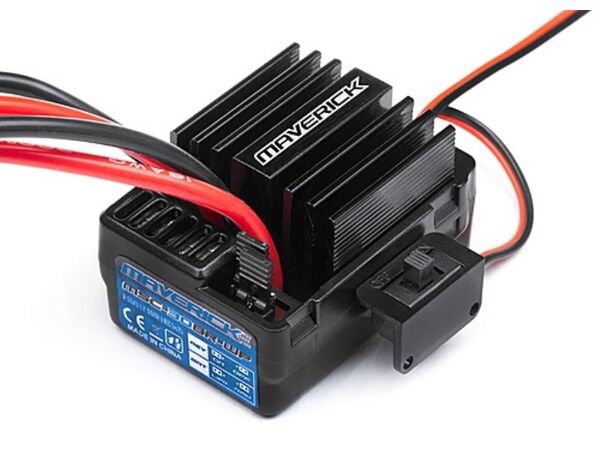

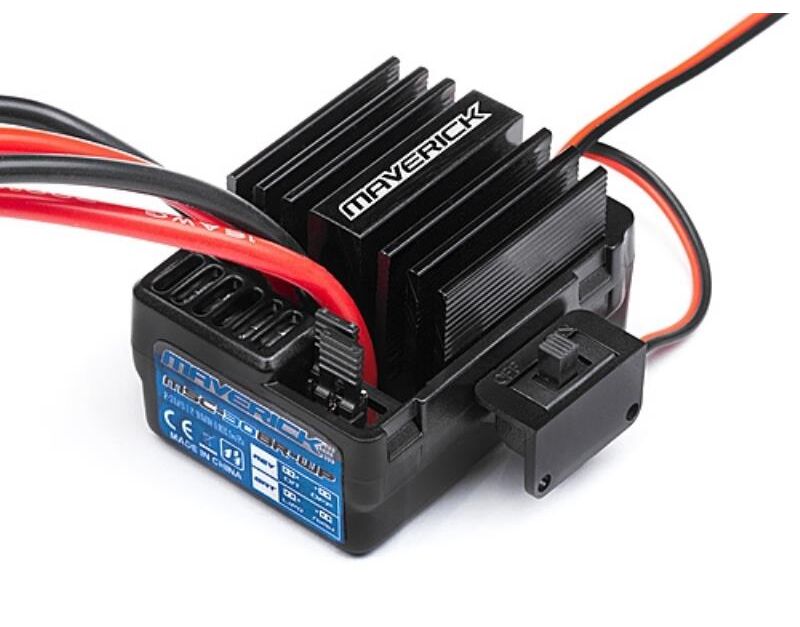

MV30001 Maverick ESC MSC-30BR-WP


The MSC-30BR-WP is a durable speed controller that is suitable for RC vehicles of all type! Whether you've got a touring car, buggy or truck, this is the ideal unit to control the power for any vehicle equipped with a brushed motor of 12 turns or more. The MSC-30BR-WP is also fully waterproof, making it the a great choice for anyone who enjoys playing in wet conditions.

The MSC-30BR-WP can handle LiPo power of 2S and 3S or between 5 and 9 NiMH cells, and features a safety cut-off to protect your LiPo batteries.

Features

2S or 3S LiPo with voltage protection
5-9 cell NiMH or NiCd
Suitable for all types of 1/10th scale vehicles

Specification:

Forward Continuous Current: 40A
Forward Burst Current: 180A
Reverse Continuous Current: 20A
Reverse Burst Current: 90A
Input: 2-3S LiPo, 5-9 cell NiMH/NiCd
Applications: 1/10 on-road, off-road buggy, short course truck, truggy, crawler, tank, boat
Motor Limit: 2S LiPo or 6 cell NiMH: 540 or 550-size motor great than or equal to 12 turn, RPM over 30,000 at 7.2v
Motor Limit: 3S LiPo or 9 cell NiMH: 540 or 550-size motor great than or equal to 18 turn, RPM over 20,000 at 7.2v
Resistance: FWD 0.002 Ohm, BWD 0.004 Ohm
PWM Frequency: 1 KHz
Dimensions: 46.5x34x28.5mm
Weight: 65g
