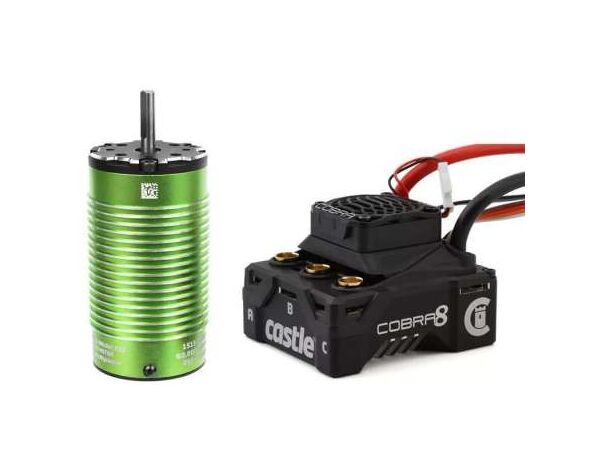

MOTOR/REGLER COBRA 8 1/8 1512 1800kv /COBRA 8 SENS

MOTOR/REGLER COBRA 8 1/8 1512 1800kv /COBRA 8 SENSOR. 25.2V WP

Cobra 8 Key Features:

• 32-Bit Processing power for smoother motor control and improved response time.

• Improved thermal performance with CRYO-DRIVE™ technology.

• Enhanced Data Logging includes:

o Double the maximum sample frequency of older generations.

o 8x increased logging time of older generations.

o Data point for ESC electrical motor timing.

o Data point for acceleration via onboard accelerometer.

o Looping feature prevents interruptions in data log recording.

• Additional tuning features include:

o Improved braking adjustability

o Separate brake and reverse curves

o Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)

• Auxiliary wire functionality for "on-the-fly" adjustments using transmitter.

• Sensored Only, Brushed and SmartSense™ Running Modes

• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)

• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.

• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.

• Mounting holes located in bottom of aluminum case for installation into vehicle.

• The COBRA 8 is proudly designed and manufactured in Olathe, Kansas USA and backed by the Castle Creations one-year warranty.

Cobra 8 Technical Specifications:

Input Voltage ESC: MIN: 2s LiPo, MAX: 6sLiPo 25.2V

Size: 2.36” x 2.04” x 1.69”

Weight: 165.6 g / 5.84 oz

BEC Voltage: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V

Wire and Connectors: 6.5mm female bullets; matching 6.5mm male bullets required.

Running Modes: SmartSense™ Brushless, Sensored Only, Brushed

Cooling Fan: Yes, temperature controlled

Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.

Product Use Statements: Remove cooling fan prior to driving in wet conditions, it is not waterproof.

Application Guidelines: For 1:8th scale vehicles weighing up to 15lbs. Not intended for drag racing applications.

Cobra 8 Purchase Includes: Cobra 8 ESC with 300mm direct connect sensor wire, Cobra Decals, Castle Link V4 USB Adapter, Cobra Quick Start Guide

General Info

Brand

Castle Creations

Item Nr

CC-010-0172-01

Barcode

819326012938

ESC - Application

ESC - Application

1/10 - 1/8 Cars

ESC - Motor Type

SmartSense™ Brushless, Sensored Only, Brushed

ESC - Motor Control

Forward - Brake

ESC - Level

Hobby - Sport - High-End

ESC - Programming

ESC - Firmware Update

Supported

ESC - Telemetrie Aux.

Yes, telemetry aux.

ESC - Data Logging

Yes, stored in ESC

ESC - Real-Time Data

RPM (T/min)

Current (A)

Throttle Status

ESC Status

Voltage (V)

ESC - Dimensions

ESC - Length (mm)

59,95

ESC - Width (mm)

51,8

ESC - Thickness (mm)

42,9

ESC - Wires (AWG) - Battery

ESC - Wires (AWG) - Motor

ESC - Connector - Battery

None

ESC - Weight (g)

166

ESC - Specs

ESC- Input Voltage Range (V)

2S - 6S Li-Po

ESC - Current - Cont. (A)

ESC - Current - Peak (A)

ESC - Current - Burst (A)

ESC - BEC - Voltage (V)

5.0V - 8.0V adjustable in 0.1V increments

ESC - BEC - Cont. (A)

ESC - BEC - Peak (A)

8

ESC - Protection

ESC - Cooling Fan

Yes

ESC - Case Material

Aluminium + Plastic

Motor - Dimensions

Motor - Dia. ø (mm)

40

Motor - Length (mm)

67,7

Motor - Shaft Dia. ø (mm)

5.0 mm

Motor - Shaft Length (mm)

20

Motor - Mounting Holes

M3 / M4 @ 25.4 mm

Motor - Wires (AWG)

10 AWG

Motor - Connector

Bullit 6.5mm

Motor - Ball Bearing - Front

Motor - Ball Bearing - Rear

Motor - Specs

Motor - Size ID

1512

Motor - Type

Brushless - Sensored

Motor - Class

Modified Motor

Motor - Application

1/10 SCT

1/8 Pan Car

1/8 Buggy

1/8 GT - Rally Game

1/8 On-Road

Motor - Compliant

ROAR

Motor - Input Voltage Range (V)

3S - 4S Li-Po

Motor - Turns (T)

Motor - KV (Rpm/V)

1800

Motor - RPM Max.

Motor - Timing

Motor - Poles

4-Pole Rotor
