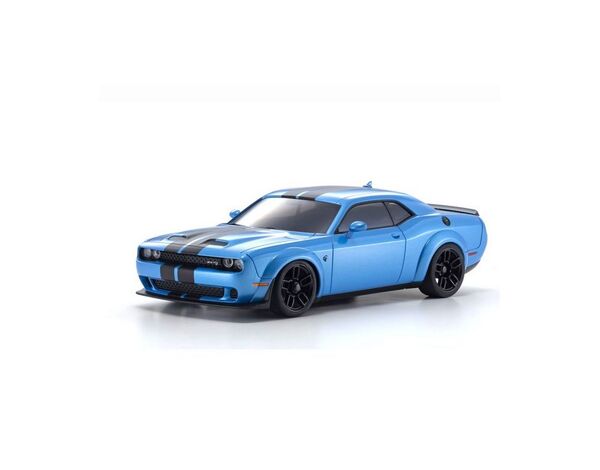

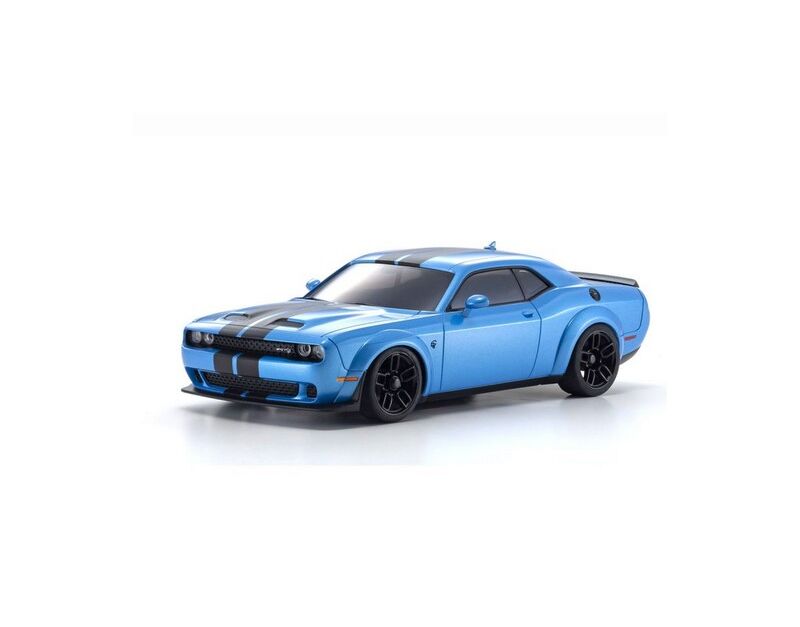

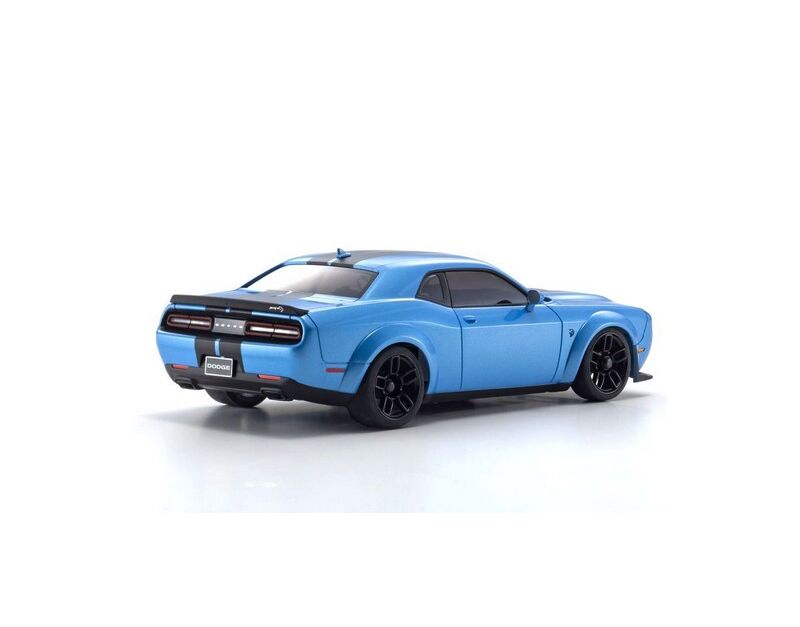

Kyosho Mini-Z AWD Challenger SRT Hellcat Redeye B5 Blau Mini Drifter

Produkt Bewerten
CHF 267.90
Beim Lieferant nicht an Lager. Liefertermin unbekannt. (Lieferzeit min. 4 Wochen)
+
KY32621BL
Lieferumfang: Fahrbereites Micro Car mit Fernsterung
Geschwindigkeit max. ca: 10 km/h

Hersteller Info: Kyosho - mehr Artikel >

  • Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
  • 30 Jahre RC Modellbau Erfahrung
  • Top Service von Profi Modellbauer
  • Über 500 Hersteller - 200`000 Artikel

Kyosho Mini-Z AWD Challenger SRT Hellcat Redeye B5 Blue (MA020/KT531P)



AWD series is a Four Wheel Drive chassis with Drift tires and paired with the Syncro KT-531P Transmitter. Perfect for drifting in small spaces.



To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional MZW446 gyro unit. The gyro can be adjusted by turning a small volume on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.


●MINI-Z AWD Readyset based on MA-020 chassis.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitivity adjustment function.
●Drift tires are installed as standard.
●Readyset requires only batteries to be ready for action!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
●Coil spring on front suspension can be easily replaced without tools.
●wide range of optional parts is available to be installed.
●Note) Optional ICS can NOT be used. Also, this model is specially designed for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is only compatible with the special gyro unit (sold separately).



TECHNICAL DATA

■Length 171.0mm
■Width 75.0mm
■Height 50.0mm
■Chassis MA-020-W
■Wheelbase 98.0mm(LL)
■Tread F : 64.5mm R : 62.0mm
■Tire F : Φ25.0mm×8.5mm R : Φ25.0mm×11.0mm
■Gear ratio 7.23、6.38、5.71、5.97、5.34、4.97、4.5:1
■Front Wheel Offset Narrow +1.5mm
■Rear Wheel Offset Wide +1.5mm
■R/C System Syncro KT-531P
■Weight 193g



KIT CONTENT

<Ready set contents>
● R / C unit built-in complete chassis
● Painted and marked complete body

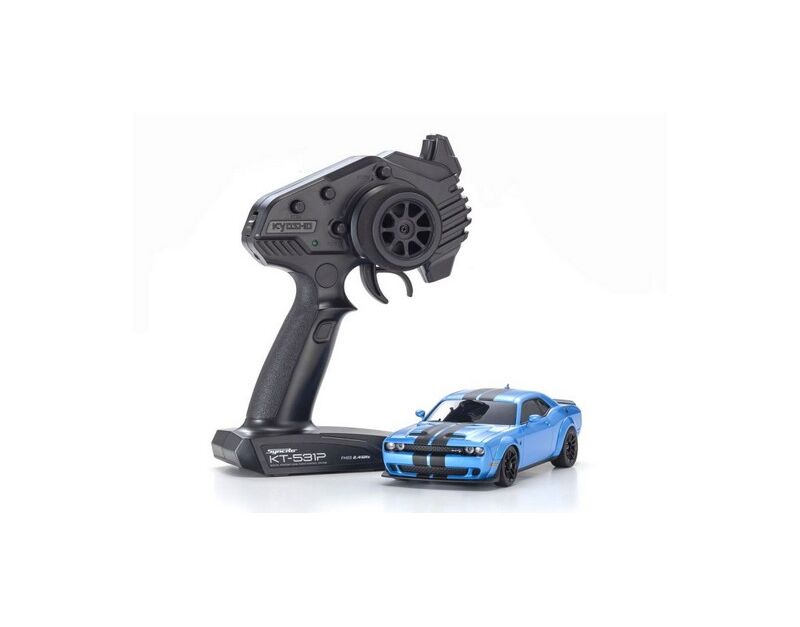

● Syncro KT-531P transmitter
● Mini pylon
● Pinion gear (15T, 17T, 19T, 21T)
● Spur gear (27T, 29T, 31T)
● Spare nut
● Wheel wrench
● Pinion removal tool



REQUIREMENT TO RUN

< Required for Operation >
●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter

Hersteller:
Kyosho

Fahrzeuge (Alle Attribute)

Fahruntergrund:
  • Wohnzimmer
Antriebsart:
  • 4WD
Bodenfreiheit mm ca.:
  • 3

Flugzeuge

Fertigungsgrad:
  • RTR ohne Akku + Ladegerät

Boote

Altersempfehlung (Planet-rc):
  • ab 8 Jahren
Empfohlener Akkutyp:
  • NimH Akku

Akku

Skill Level:
Einsteiger
Breite mm ca.:
  • 77
Höhe mm ca.:
  • 45
Gewicht g ca.:
  • 190

Fahrtenregler

Max. Betriebspannung:
  • 6.0 Volt

Motoren Elektro

Motor Antriebs Typ:
  • Elektro Brushed (Bürstenmotor)
LED Beleuchtung:
Vorbereitet (Optional)
Radstand mm ca.:
  • 98

Brushless Set

Geschwindigkeit km/h ca.:
  • 15

Reifen

Rad Durchmesser mm ca.:
  • 20

Felgen

Farbe:
  • Blau

Karosserien

Baugrösse Massstab:
  • 1/28
Fahrzeugart:
  • Drift Onroad
Radaufnahme / Mitnehmer:
  • Andere

Servohörner

Länge mm ca.:
  • 177

Akkustecker

Stecker:
  • Andere

Werkzeug

Wassergeschützt:
Nein

Zum Betrieb dieses Modells wird folgendes Zubehör benötigt:

  • 4 x AAA-Batterien für den Sender
  • 4 x AAA-Batterien oder Akkus für das Chassis
