Kyosho Mini-Z 4X4 MX-01 Suzuki Jimny Sierra Medium Gray 1/24 Scale Crawler RTR

32523G Kyosho Mini-Z 4X4 MX-01 Suzuki Jimny Sierra Medium Gray (KT531P)

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

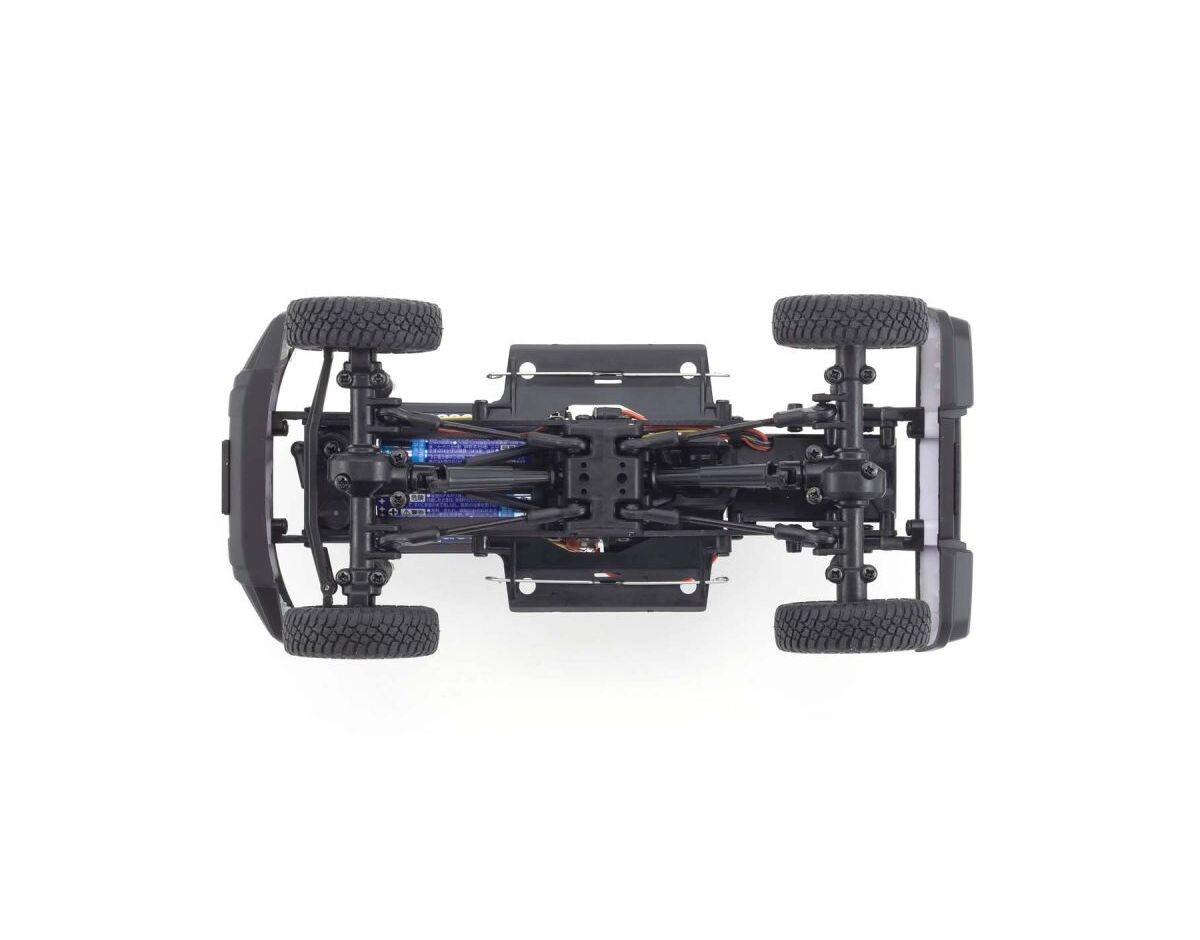

In 2019 the world's most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4x4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4x4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4x4 is the only mini crawler that delivers a full range of crawling performance in a smaller package

Technical datas

■Length 193mm
■Width 84mm
■Height 90.0mm
■Chassis Type MX-01
■Wheel Base 120mm
■Tread F/R:72.7mm
■Weight 242g (excl. battery)
■Motor/Engine 130 Class
■Gear Ratio 55.44：1/46.20：1/39.60：1
                     39.60：1/34.65：1/34.65：1
■Front Tire Diameter Φ37.0mm
■Rear Tire Diameter Φ37.0mm
■Front Tire Width 12mm
■Rear Tire Width 12mm
■Battery 4 x AAA Alkaline
■Transmitter Syncro KT-531P
■Speed：Approx. 2.7km/h〜5.4km/h  (Pinion gears 10T〜 20T)
■Running Time Approx. 60 mins



Kit contents

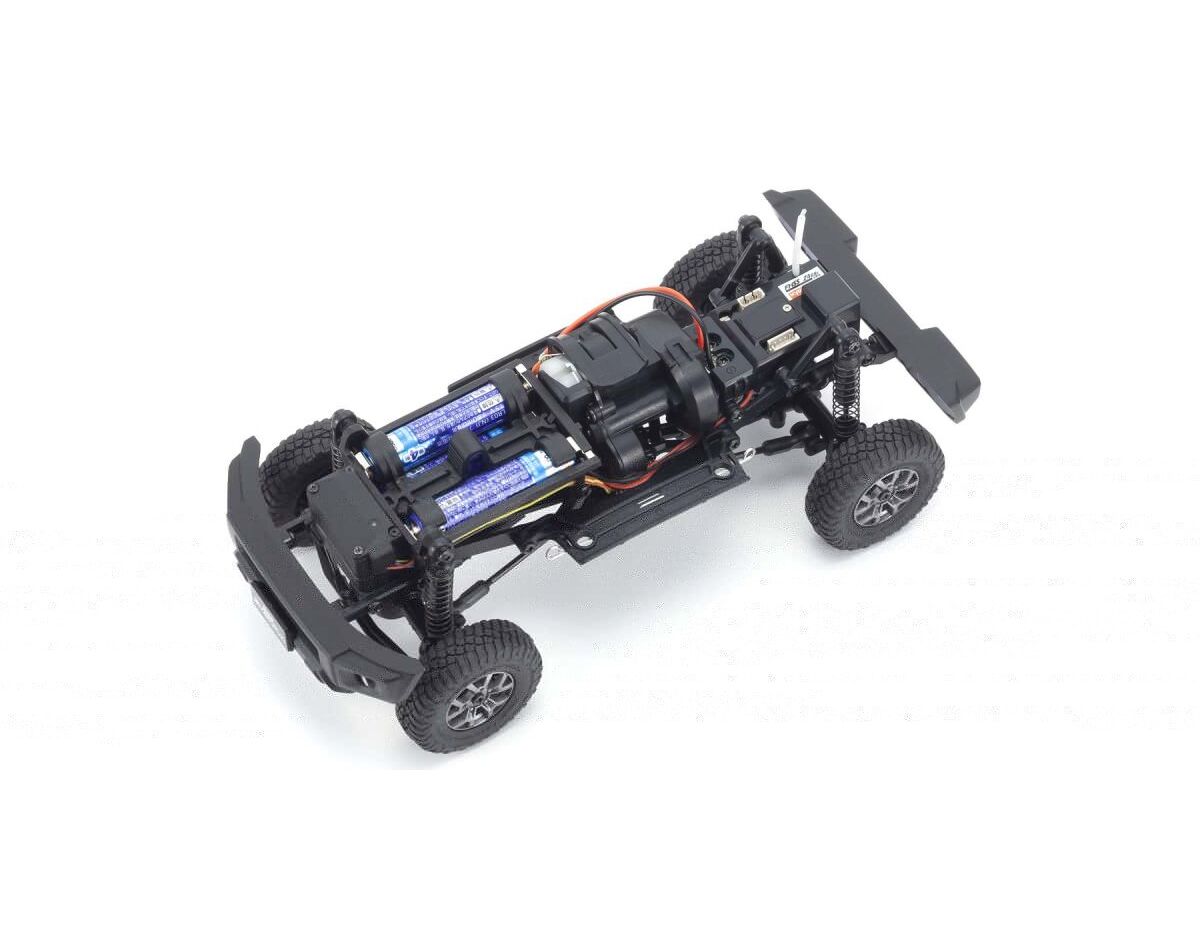

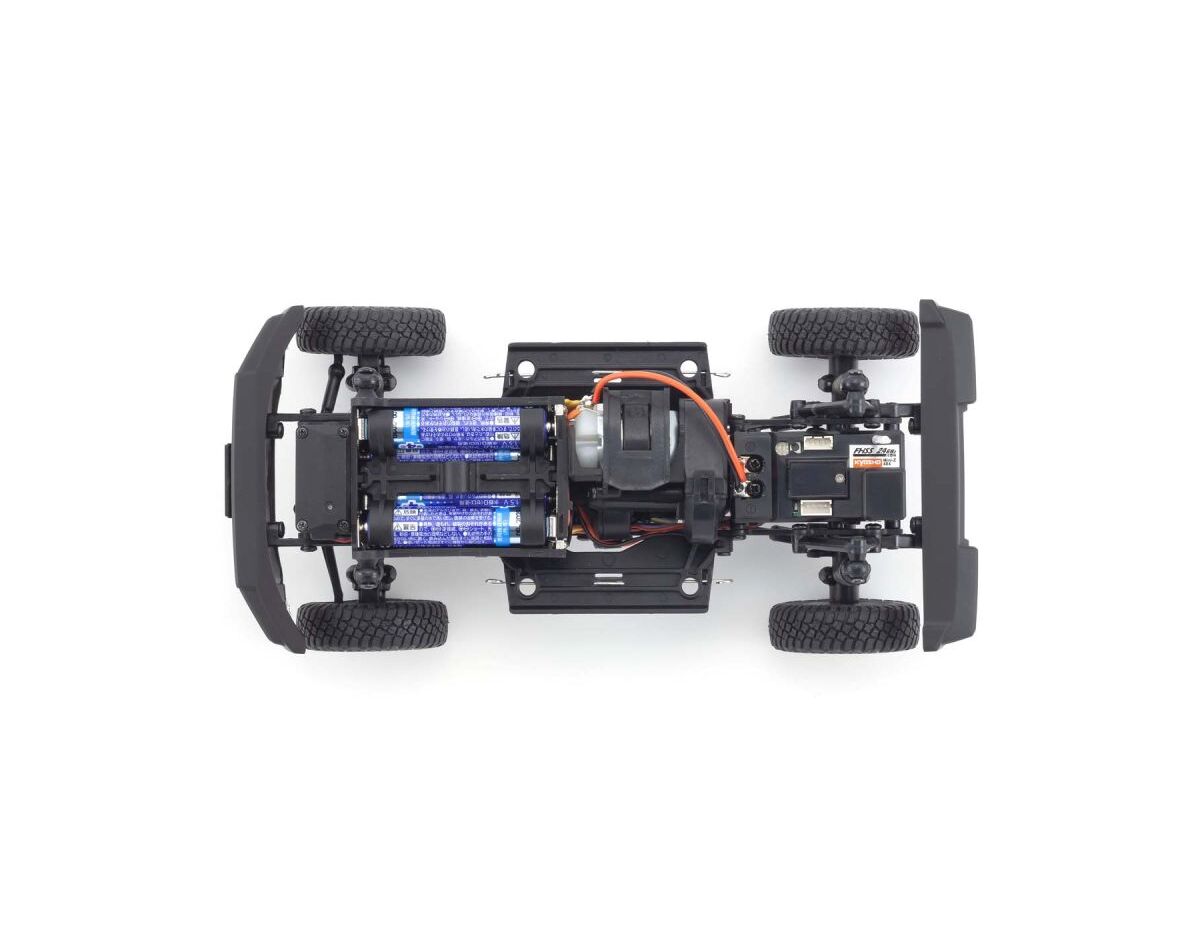

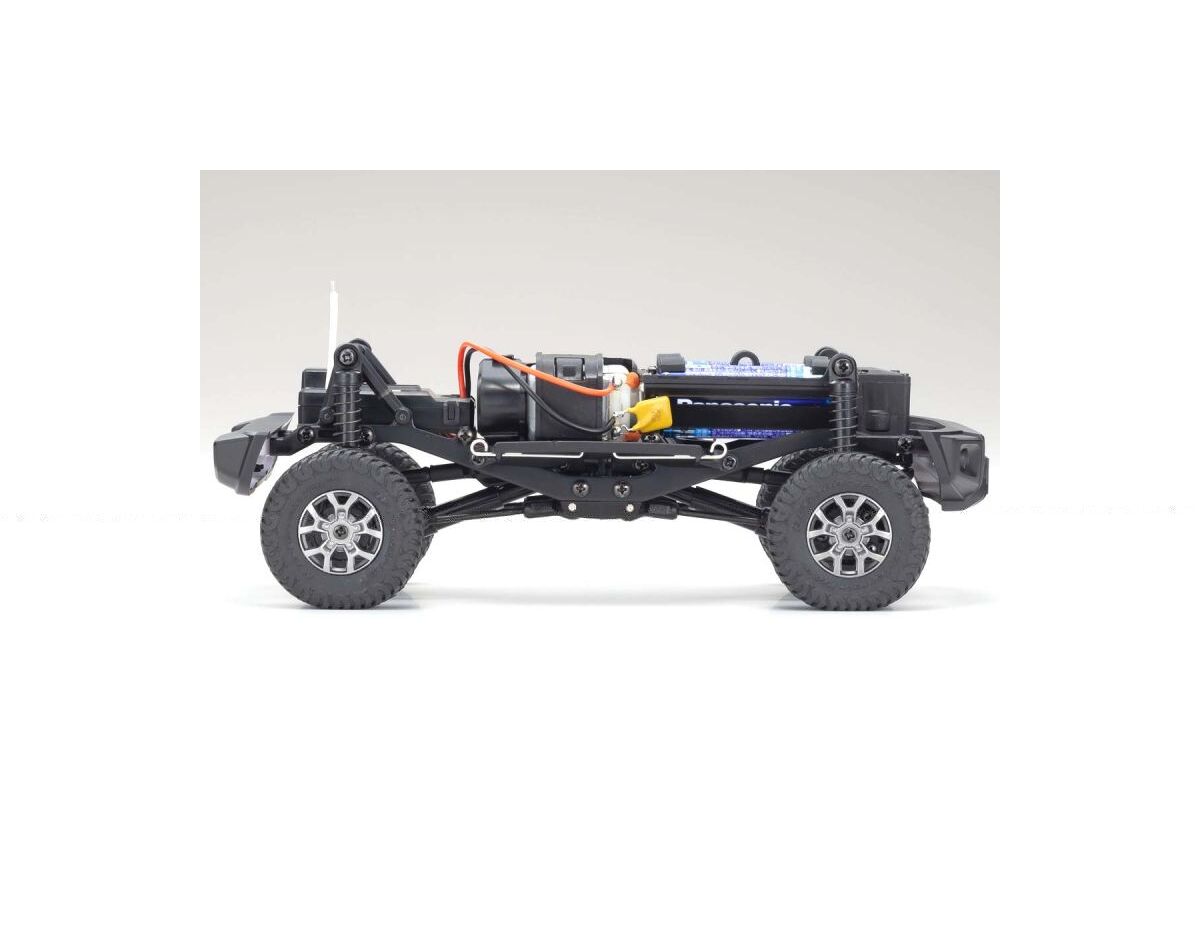

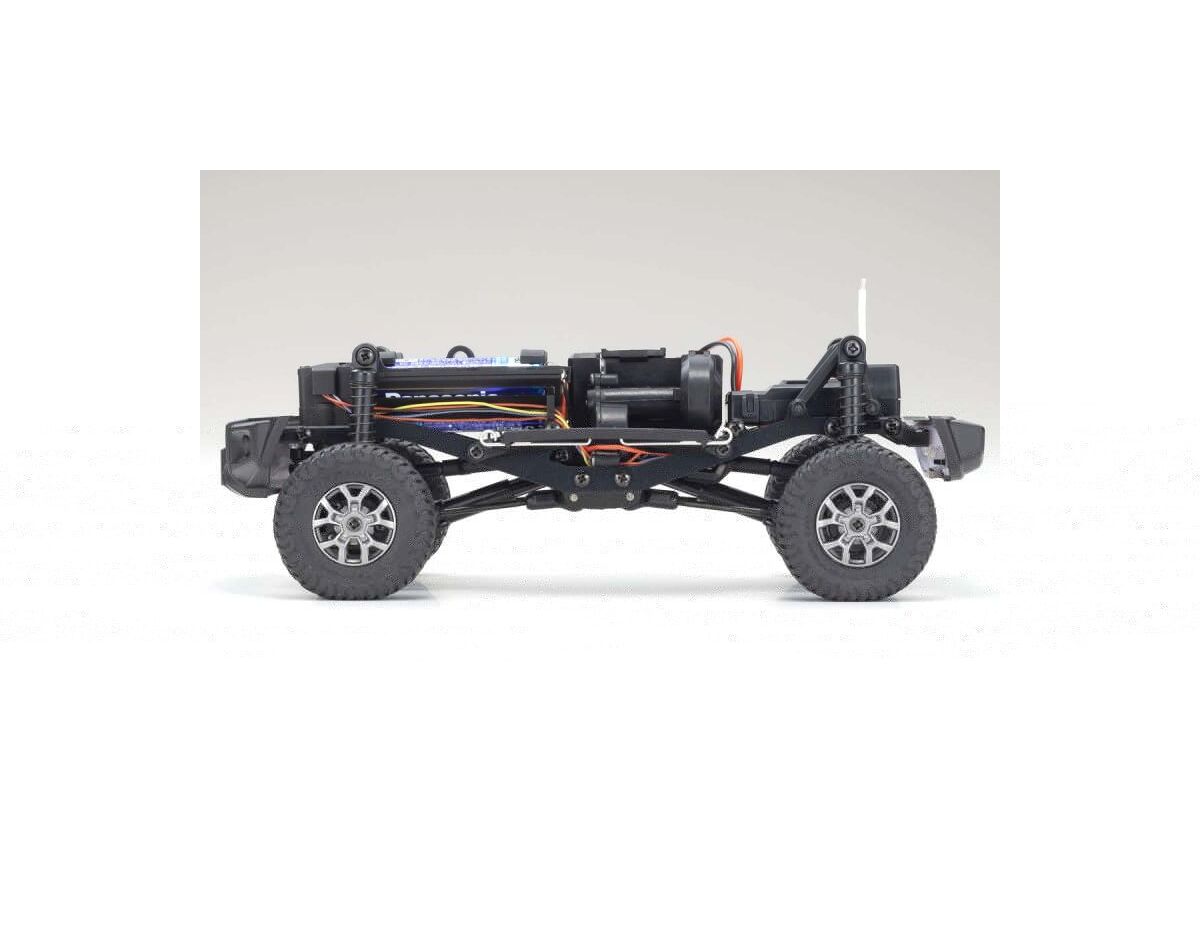

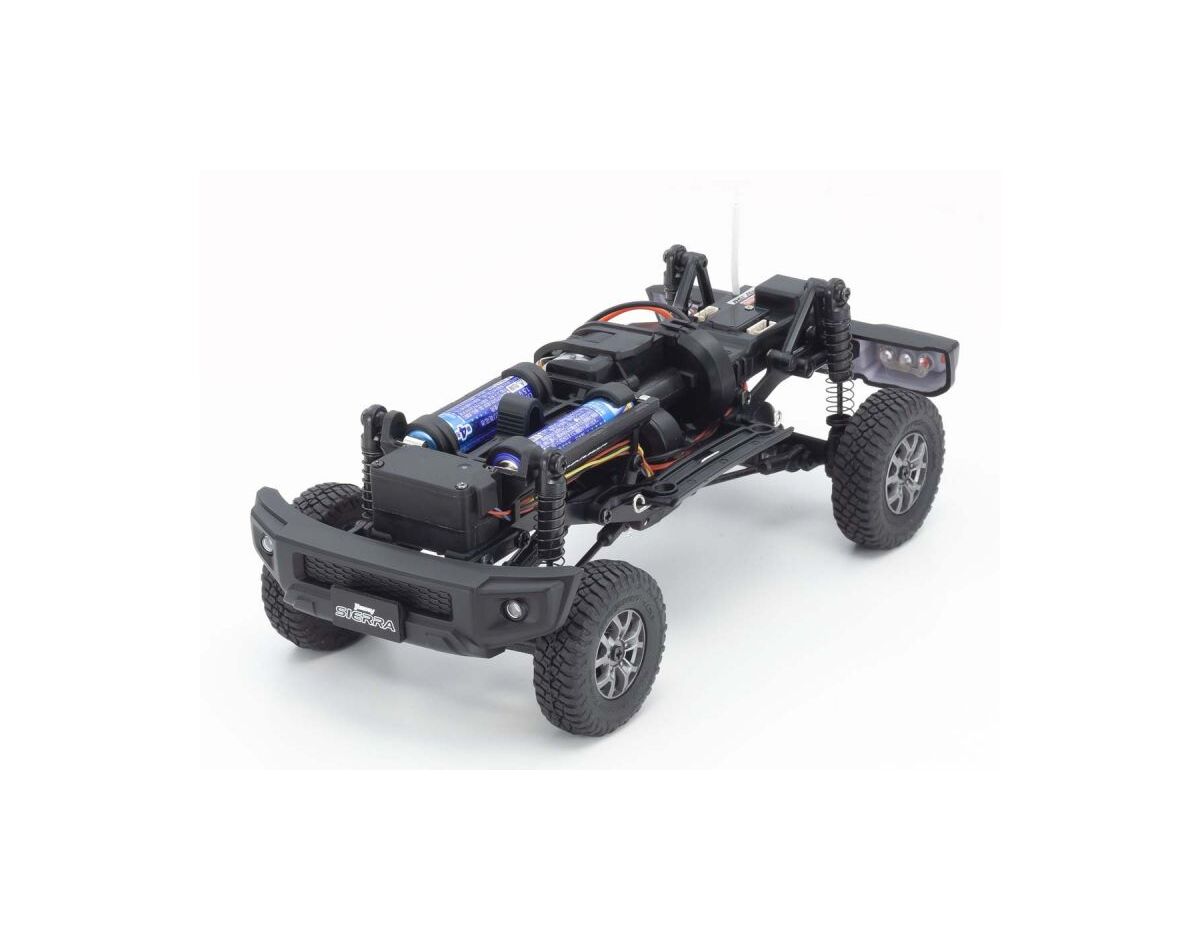

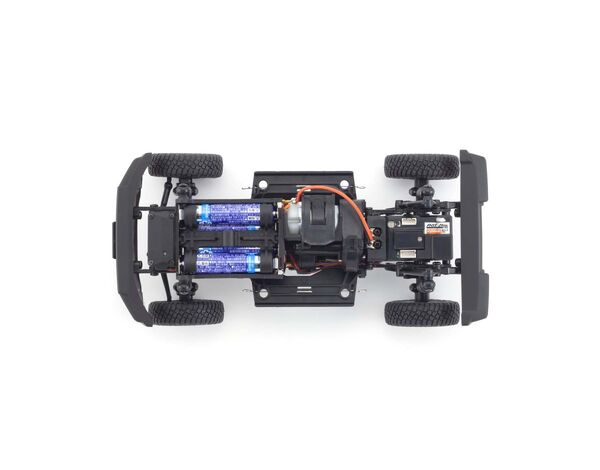

●Complete chassis with built-in electronics.

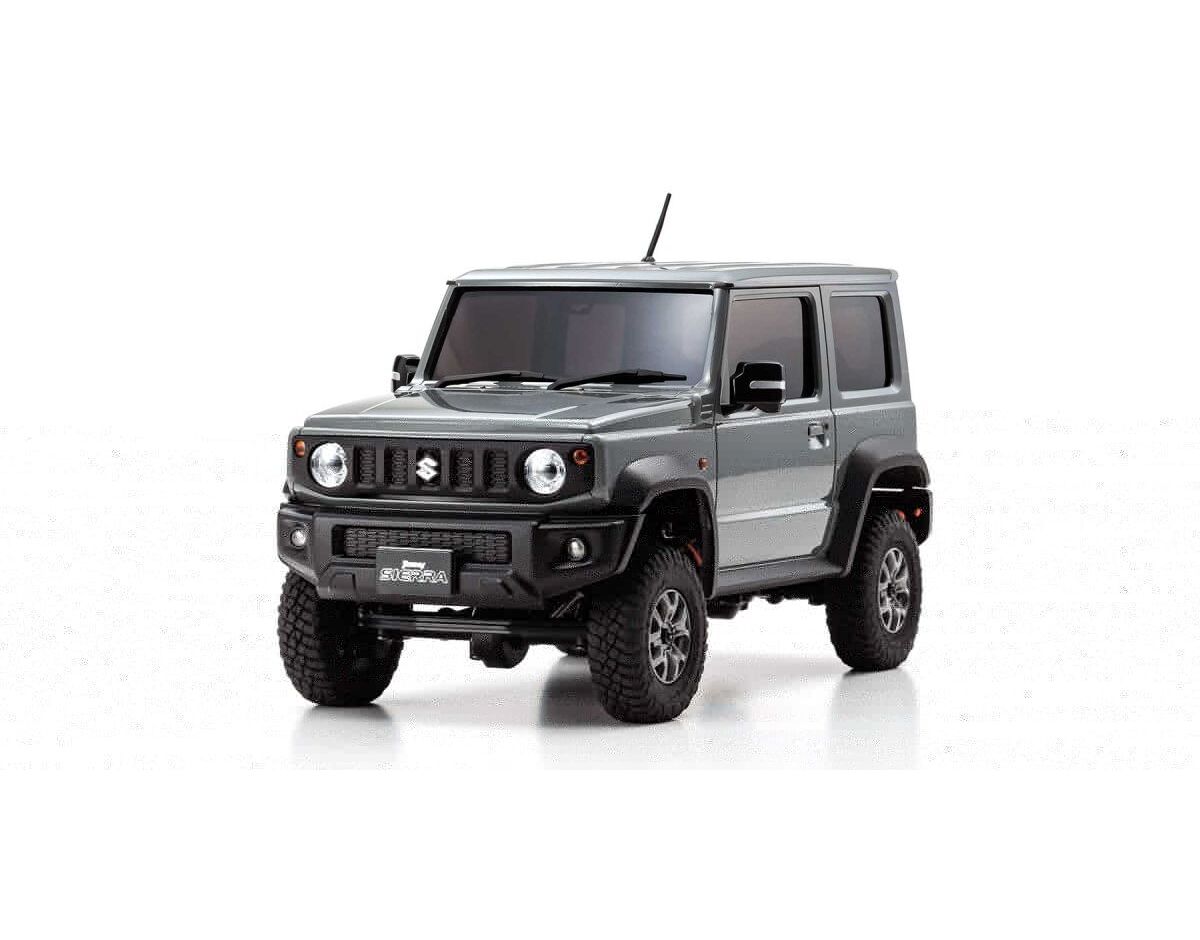

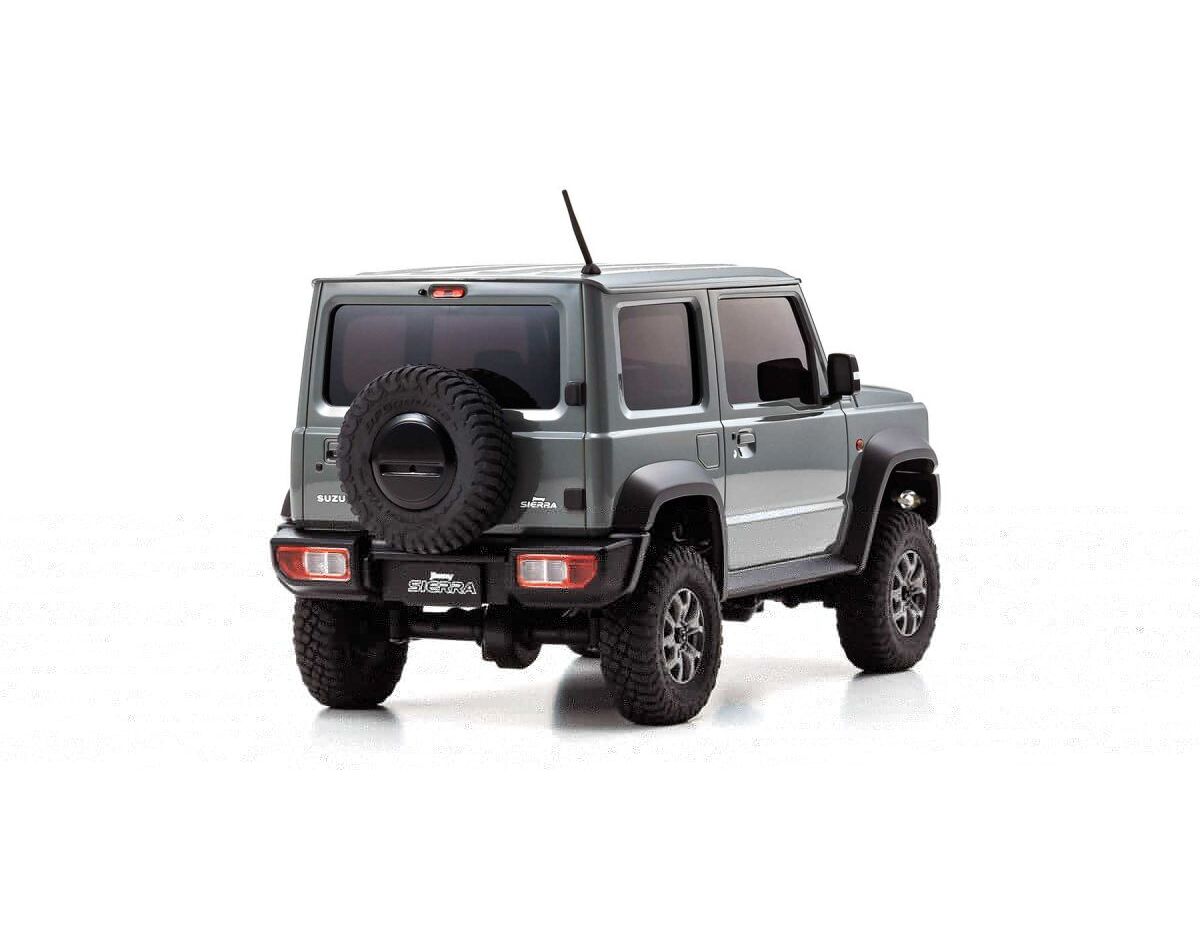

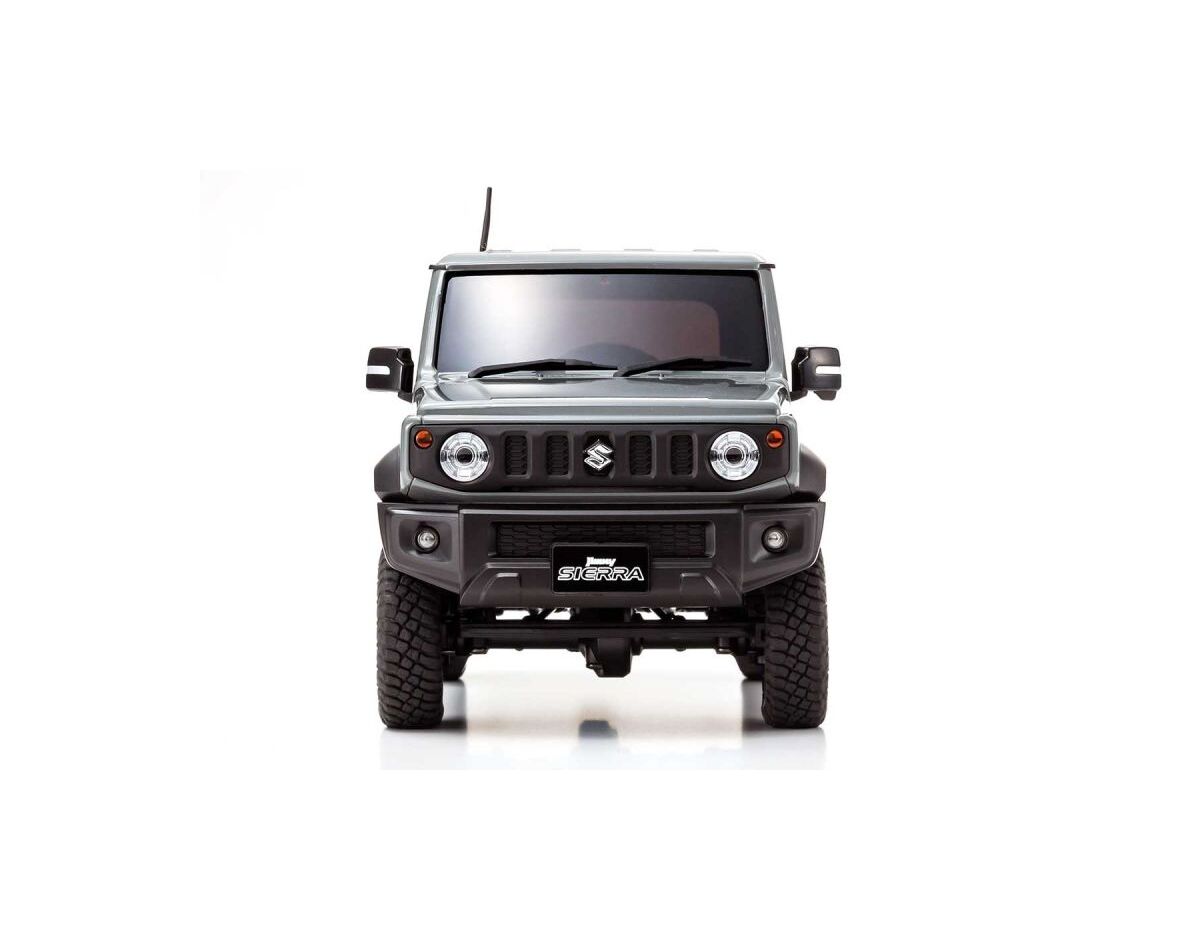

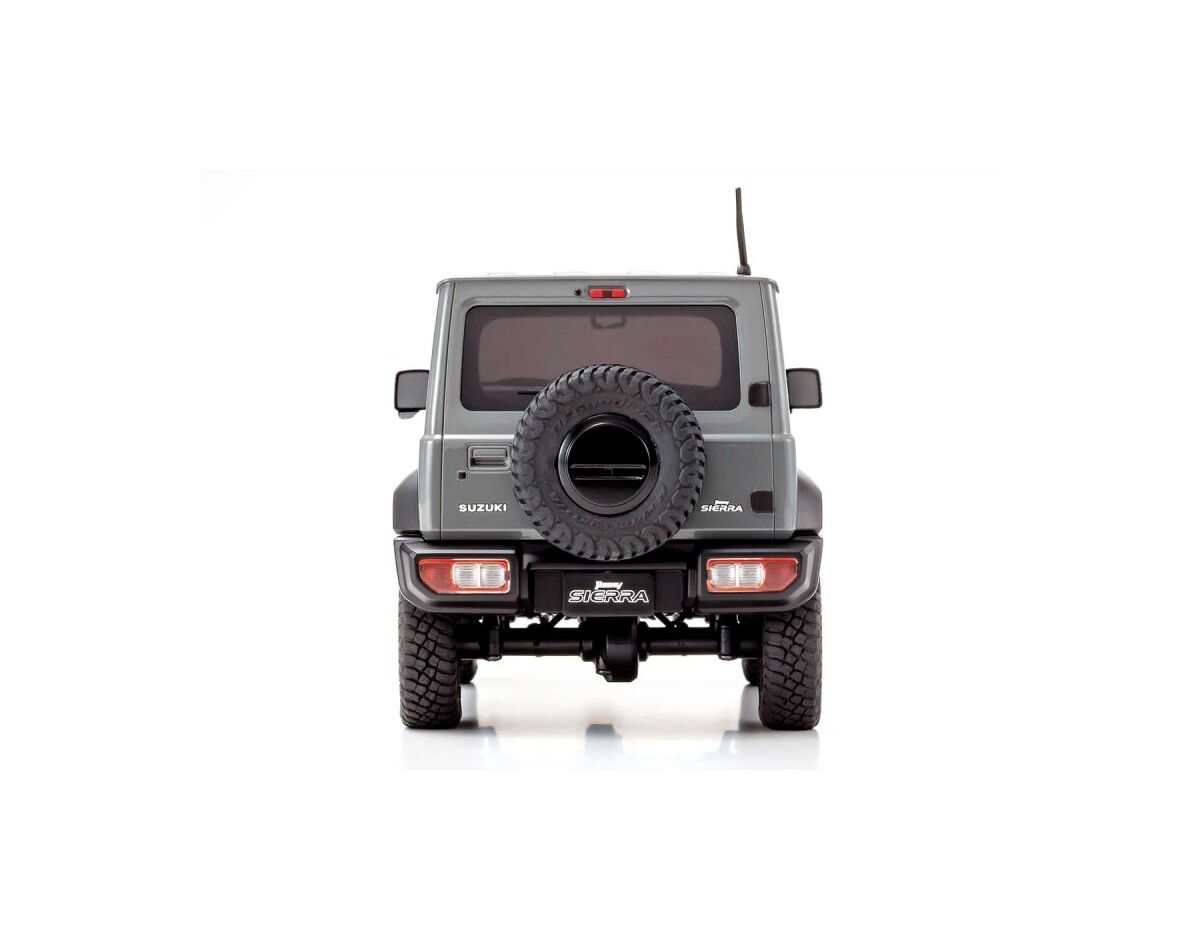

●Factory-painted body complete with many fine details

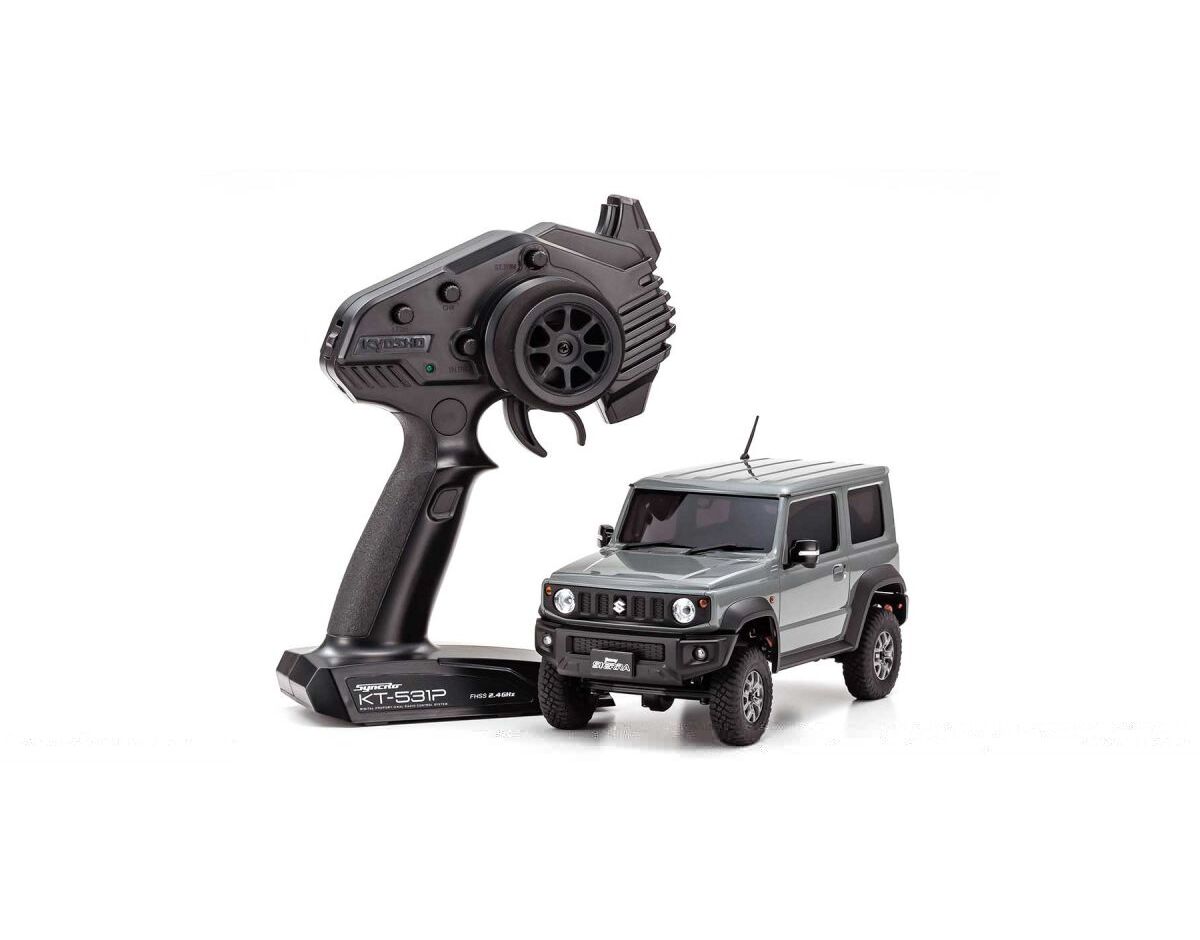

●KT-531P 2.4GHz transmitter
●Pinion gear set（10T、12T、14T、16T、18T、20T）
●3 types of pinion gear spacers

Required for operation

●4 x AAA batteries for the transmitter
●4 x AAA batteries for chassis （Alkaline or NiMH）
