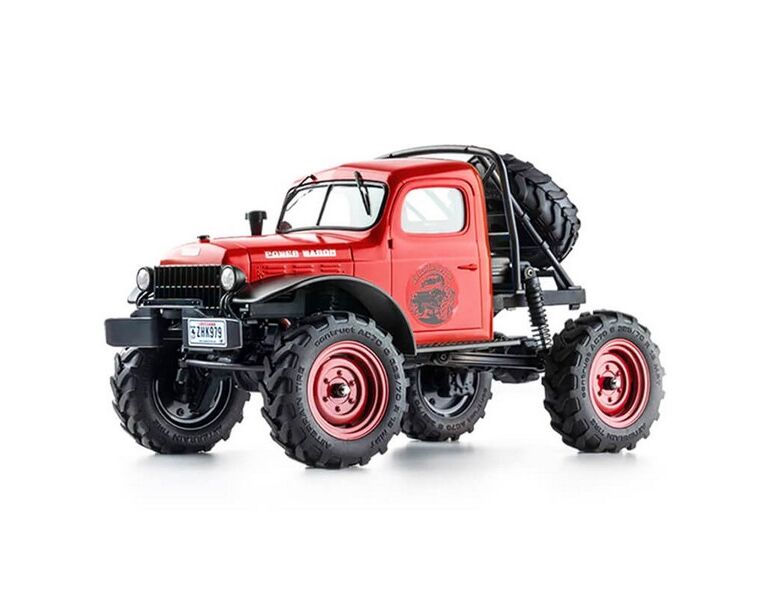

FMS FCX Power Wagon V2 Rot 1/24 RTR Scale Crawler

FMS FCX 1/24TH POWER WAGON SCALER RTR - RED V2

This is FMS 1/24 FCX24 Power Wagon Blue 4WD Crawler RTR w/ 2.4GHz Radio. FCX24 is positioned as a high-performance crawler chassis. The carframe is made of high-strength nylon. Compared with the trapezoidal beam spliced by metal side beams and plastic trusses, the overall weight is lighter, and the strength is higher. The mid-mounted power assembly has a low center of gravity and integrates the 2-speed transmission, transfer case and 130 motor. The power is transmitted to the front and rear axles through the universal joint drive shaft. The axles are equipped with wheel side reducers, commonly known as "portal axle", which can increase the ground clearance of the differential tooth pack and improve the pass ability.

The crawlers are generally equipped with front and rear straight axles to simulate the locked state of the real car differential to improve off-road passing ability. The FCX24 is equipped with a straight axle by default, but the planetary gear differential can also be replaced with high-viscosity silicone oil to simulate the driving effect of an LSD limited-slip differential. After installing the differential, the ultimate climbing ability will be reduced, but a smaller turning radius and a more stable high-speed driving quality can be obtained. Simply put, the straight axle is suitable for extreme climbing, and the limited-slip differential is suitable for high-speed off-road. The choice is yours.

The two-speed gearbox uses the CH3 of the remote control and is operated by a 9G steering gear. The low gear reduction ratio is 99, which is larger than that of similar products currently on the market. The torque output is strong, and easy for extreme climbing. The high gear reduction ratio is 24.75, and the speed is higher than that of all similar products currently on the market. You can experience the fun of high-speed breakthrough, small jump, and even heading up.

Stainless steel ball bearings are always the favourite of drivers, but in order to reduce the street price, most brands will choose bushings as a replacement for all or part of the bearings. However, considering that drivers need to completely disassemble the whole car to upgrade the bearings in future, which is slow and laborious, FCX24 chooses to pre-install the whole car with a total of 24 bearings, which does not need to be disassembled and re-upgraded, saving time and effort, and addresses the concern once for all.

As the first product of the FCX24 series, the car body is the POWER WAGON 1949, which appeared in the form of a mud off-road truck. 2.4G 3-channel digital proportional remote-control system, in addition to normal driving and steering control, the CH3 is used to control shifting. It is also equipped with a lighting control module, and the headlights can be switched between high and low beams. In addition, interfaces for taillights and turn lights are reserved for drivers to modify.

Unlike previous FMS products, FCX24 focuses more on sports performance. A large number of upgraded and modified parts such as metal gears, shock absorbers, high-performance motors, radiators, and wheel hub counterweights will be launched simultaneously. Drivers from all over the world, look forward to you creating your own unique FCX24.

Features

Ready to run model

Two-speed transmission

Portal axle

24 ball bearings full set

Metal gears steering servo

Four link suspension

High-strength integrated nylon frame

Power wagon polystyrene body

Rapid separation of car body

Nylon roll cage

Painted body

The remote control lighting system

Original personalized stickers

Specifications

Tyre: Φ 60×20mm

Wheel Base: 138mm

Minimum Ground Clearance: 26mm

Approach Angle: 68°

Departure Angle: >90°

Driving Speed: 8km/h Max

Remote Distance: 30m

Play Time: 20 minute

What's Included

1/24 FCX24 POWER WAGON RTR

2.4GHz Radio

2-in-1 Receiver / 20A ESC (installed)

131 Brushed Motor (installed)

3-wire 9g Metal Servo (installed

7.4V 380 mAh Battery

USB Battery Charger

Hex Wrench Socket

Product Manual

Needed To Complete

AAA Batteries for Radio
