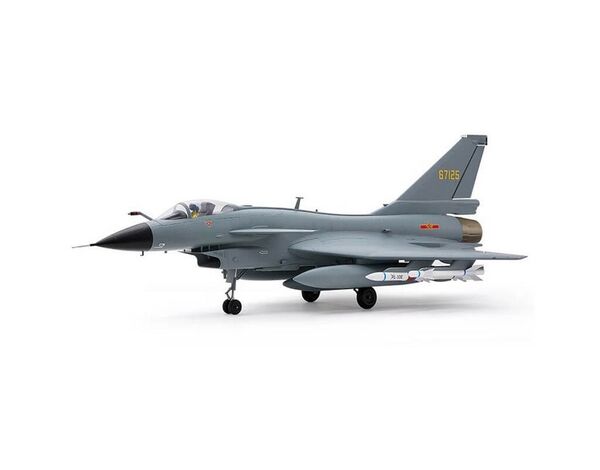

FMS 64 EDF J-10 w/REFLEX V3 GREY

FMS 64 EDF J-10 w/REFLEX V3 GREY

The J-10 fighter jet, nicknamed "Vigorous Dragon”, is a domestically developed high-performance, multi-role, all-weather third-generation fighter aircraft. It boasts high reliability, survivability, and maneuverability, with a large combat radius, short takeoff and landing distances, strong attack capabilities, and overall combat effectiveness reaching advanced international levels among similar fighter jets.

The J-10 EDF Jet features a unique delta wing and canard design for exceptional high-speed handling and also agile low-speed maneuverability. Using common 4S batteries, it is powered by a 64mm ducted fan with a brushless motor and a 40A ESC which helps to replicate the sound of a fighter jet. High-fidelity details include detachable weapon sets, an air refueling probe, navigation lights, and CNC-machined landing gear. Made from EPO 40 foam, it offers impact resistance and a water-resistant paint finish. The J-10 EDF jet is easy to assemble. Experienced modelers can complete assembly in about thirty minutes. Optional paint schemes are also available.

Features:

The unique layout of a delta wing with canards provides the aircraft with excellent climb rates and climbing altitudes, allowing for easy execution of low-speed high-angle maneuvers. Additionally, the delta wing, canards, and vertical tail are all reinforced with embedded strengthening ribs, effectively increasing the structural integrity of the aircraft and facilitating high-speed flight.

Equipped with a 64mm 11-blade ducted fan with a 2840 KV3150 brushless motor and a high-performance 40A ESC, it is paired with commonly available 4S 2200mAh-2600mAh 25c batteries, effortlessly reproducing the thrilling sound of a fighter jet.

High-fidelity details include but are not limited to air refueling probe, cockpit interior, pilot figure, and five high-intensity navigation lights.

CNC-machined metal front landing gear with built-in CNC metal shock absorption, externally using realistic plastic parts.

EPO 40 foam material with high-impact absorption and rigidity.

Simulation water-based paint finish, with a full and tough paint film that is water-resistant, heat-resistant, and has a pleasing gloss finish.

Features a simple-assembly structure, experienced players can complete all assembly and pre-flight testing in just thirty minutes.

Optional paint schemes include the “August 1st” Aerobatic Team paint and the Air Force gray paint.

Specifications:

Flying Weight: Around 1100g

Wing Load: 54g/dm² ( 0.11oz/in²)

Wing Area: 18.5dm² (286.5 sq.in)

Wingspan: 690mm /27.2 in

Overall Length: 1110mm /43.7 in

Motor Size: 2840KV3150

ESC: 40A

Servo: 9gX4pcs

Radio: 6CH Channel

CG (center of gravity): 80-90mm

Prop Size: 64mm 12blades

Aileron: Yes

Rudder: Yes

Flaps: No

Retracts: No

Approx. Flying Duration: 3 minutes

Minimum Age Recommendation: 14+

Experience Level: Intermediate level

Assembly Time: 10minutes

In The Box:

64mm J-10 EDF PNP

40A ESC with Reverse Thrust Function (installed)

2840 KV3150 brushless motor (installed)

64mm 11-blade ducted fan (installed)

4x 9g Digital Servo (installed)

Product Manual

Needed to Complete:

6 Channel Transmitter and Receiver

14.8V 2200-2600mAh 25c Li-Po battery with XT60 connector

LiPo Battery Charger
