CENTRO C10PRO COMPETITION 1/10 BRUSHLESS SPEED CONTROL

Produkt Bewerten
CHF 168.90
Beim Lieferant nicht an Lager. Liefertermin unbekannt. (Lieferzeit ca. 4-12 Wochen)
+
C0675

Hersteller Info: CENTRO - mehr Artikel >

  • Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
  • 30 Jahre RC Modellbau Erfahrung
  • Top Service von Profi Modellbauer
  • Über 500 Hersteller - 200`000 Artikel

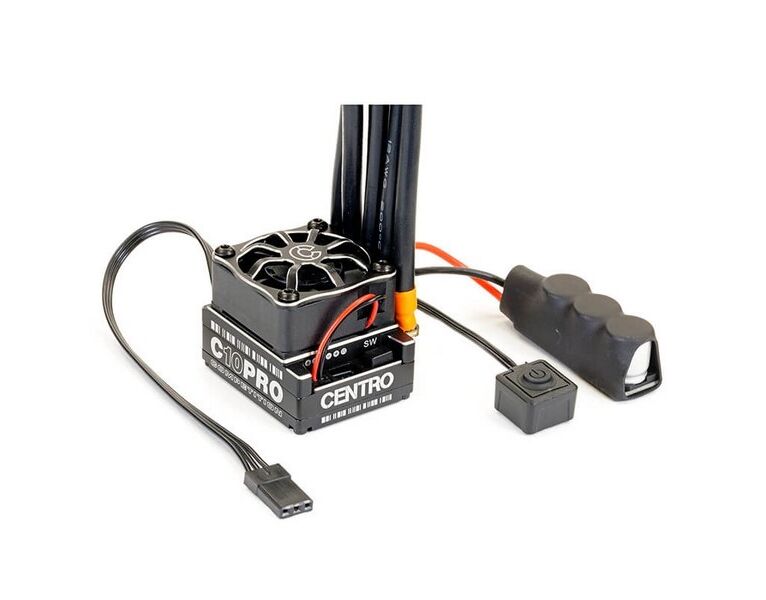

CENTRO C10PRO COMPETITION 1/10 BRUSHLESS SPEED CONTROL

Get ahead of the curve with the new Centro C10 Pro Competition, a top-end brushless electronic speed controller destined to perform at the pinnacle of 1/10th scale RC racing.

Offering maximum power, linearity and drivability characteristics with its 160A rating and 32bit MCU, the C10 Pro Competition is designed specifically for use in 1/10th electric on and off road race cars.

With a compact footprint which belies its performance, its pre-soldered, high current 12AWG wires and full aluminium case ensures optimum performance and efficiency is maintained. With the optional Centro Bluetooth module you can analyse real-time and post-race data, fine tune its parameters and to give yourself the edge over the competition!

ESC1 establishes a connection through the Bluetooth of the mobile phone and the Bluetooth of the ESC, so as to realize the functions of adjusting the parameters of the ESC, viewing the data, and upgrading the firmware.

C0675

Features

ESC Programming via ESC-1 Mobile APP (using plug-in Bluetooth module)

CNC Machined Aluminium Case w/ Integrated Heat Sink

CNC Aluminium Fan Cover

30mm Fan Unit

Numerous Programmable Parameters Under:

- General Settings

- Throttle

- Brake

- Boost

- Turbo

- Data

Specifications

Continuous Current: 160A

Burst Current: 760A

Battery Input Voltage: 2-3S LiPo

BEC Output: 6.0V, 7.4V/4A (switch BEC)

Size: 38mm x 30.5mm x16mm (without fan)

Weight Without Fan: 96g

Motor Limit: 2S LiPo / 4.5T 540 or 3S LiPo / 6.5T 540

Please Note: Bluetooth module for C10 ESC available separately.

Alle Modelle Arten

Motor Turn / KV max.:
  • Bis max. 4.5 Turn

Akku

Einsatzbereich:
  • Competition Wettbewerb
Breite mm ca.:
  • 36
Höhe mm ca.:
  • 31
Gewicht g ca.:
  • 50

Ladegeräte

Lipo Cut Off:
Ja

Fahrtenregler

Betriebs Modi:
  • Vorwärts / Bremse
  • Vorwärts / Bremse / Rückwärts
  • Vorwärts / Rückwärts
Max. Betriebspannung:
  • 11.1 Volt
Blinky Mode Zero Timing:
Ja
Lipo Zellenzahl max.:
  • 3

Motoren Elektro

Max. BEC Ampère:
  • 3
Anschluss Motor:
  • Lötsockel

Brushless Set

Anschlüsse Verbindungen:
  • Lötarbeiten Erforderlich
BEC Spannung:
  • 6.0 Volt

Lüfter / Kühlkörper

Lüfter:
Ja

Reifen

Regler Art:
  • Brushless Sensored
  • Brushless Sensorless

Karosserien

Baugrösse Massstab:
  • 1/10
Fahrzeugart:
  • Buggy Offroad
  • Stadium Truck / Truggy Offroad
  • Monster Truck Offroad
  • Tourenwagen Onroad
  • Drift Onroad
  • Pan Car - F1 - Flachbahner Onroad
  • Pan Car - 1/10 - Flachbahner Onroad

Fernsteuerung

Anwendungsbereich:
  • Fahrzeuge

Empfänger

Max. Dauerstrom Ampère:
  • 160

Servohörner

Länge mm ca.:
  • 38

Balancer Verlängerungen

Passend für Modelltyp:
  • 3Racing AuperdD RWD Drift
  • 3Racing Cactus 2WD Buggy
  • 3Racing M4
  • 3Racing Sakura Advance
  • 3Racing Sakura Advance S
  • 3Racing Sakura D3 Drift
  • 3Racing Sakura D4 Drift
  • 3Racing Sakura D5S Drift
  • 3Racing Sakura Ultimate
  • 3Racing Sakura XI Sport
  • Asso ProSC10 - Short Course
  • Asso RC10 B4 - 2WD Buggy
  • Asso RC10 B44 - 4WD Buggy
  • Asso RC10 B5 - 2WD Buggy
  • Asso RC10 B6 - 2WD Buggy
  • Asso RC10 B74 - 4WD Buggy
  • Asso RC10 SC6 - Short Course
  • Asso RC10 T5 - 2WD Truck
  • Asso RC10 T6 - 2WD Truck
  • Awesomatix A800
  • Awesomatix A800FX FWD
  • Carisma CRF-1 F1 Pan Car 1/10
  • Carisma CRF-GT Touring 1/10
  • CARTEN M210 1/10 M-Chassis
  • CARTEN T410 1/10 Touring
  • HB D216 2WD Buggy - 1/10
  • HB D418 4WD Buggy - 1/10
  • Infinity IF11 F1
  • Infinity IF14 Touring
  • Kyosho Lazer ZX5
  • Kyosho Lazer ZX6
  • Kyosho Lazer ZX7
  • Kyosho Ultima RB5
  • Kyosho Ultima RB6
  • Kyosho Ultima RB7
  • Losi 22S ST
  • Losi TLR 22 2WD Buggy 1/10
  • Losi TLR 22T Truck 1/10
  • Losi TLR TEN-SCTE 2WD Short Course 1/10
  • Losi TLR X22-4 4WD Buggy 1/10
  • Mugen MTC-2 FWD Touring
  • Mugen MTC1
  • Mugen MTC2
  • Roche Rapide F1
  • Roche Rapide P10 Pan Car
  • Schumacher Cat 4WD Buggy
  • Schumacher Cougar 2WD Buggy
  • Schumacher Mission FT
  • Schumacher Storm ST 2WD Truck
  • Serpent F110 - SF4 - 1/10
  • Serpent Medius X20 - 1/10
  • Serpent Natrix 748-e - 1/10
  • Serpent Project 4X - 1/10
  • Serpent Spyder SCT SRX2 - 1/10
  • Serpent Spyder SDX4 - 1/10
  • Serpent Spyder SRX2 - 1/10
  • Sworkz S12
  • Sworkz S14
  • Team Corally - SBX-410
  • Team Corally FSX-10 Formel - 1/10 - F1
  • Team Corally SSX-10 1/10 - Pan Car
  • Team Magic E4D-MF Pro
  • Xray T4
  • Xray T4F
  • Xray X1
  • Xray X10
  • Xray X4
  • Xray XB2
  • Xray XB4
  • Xray XT2
  • Xray XT4
  • Yokomo BD10
  • Yokomo BD9
  • Yokomo YZ-2 2WD Buggy 1/10
  • Yokomo YZ-2T 2WD Truck 1/10
  • Yokomo YZ-4 4WD Buggy 1/10

Akkustecker

Stecker:
  • Kein Stecker vormontiert

Werkzeug

Wassergeschützt:
Nein
