CAYOTE Racing Brushless Regler CREST X 160A - 2-3S LiPo 1/10 - Offroad / Onroad

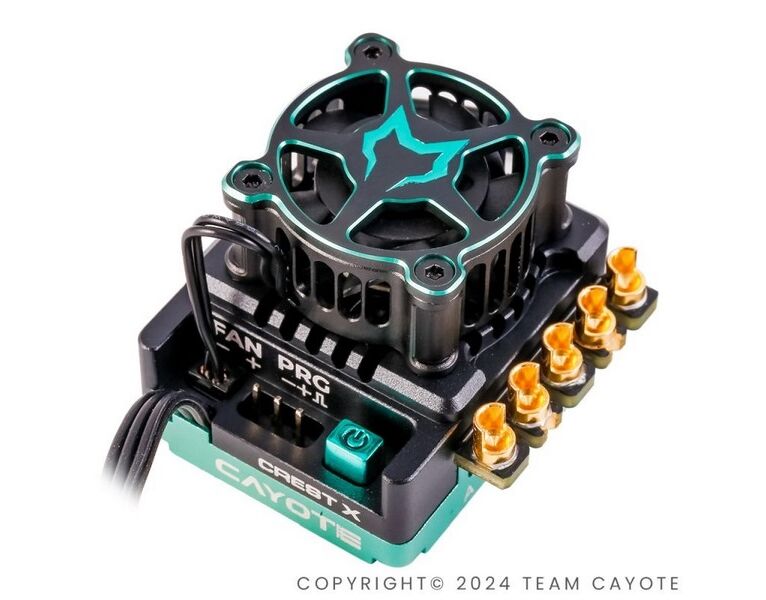

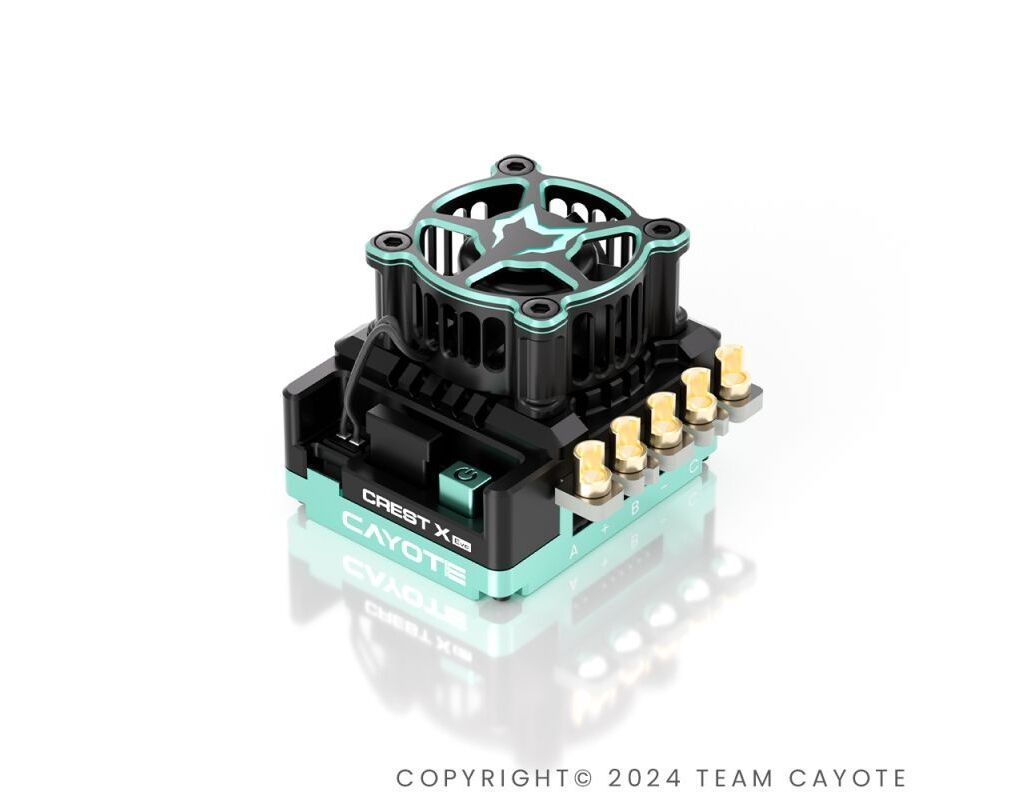

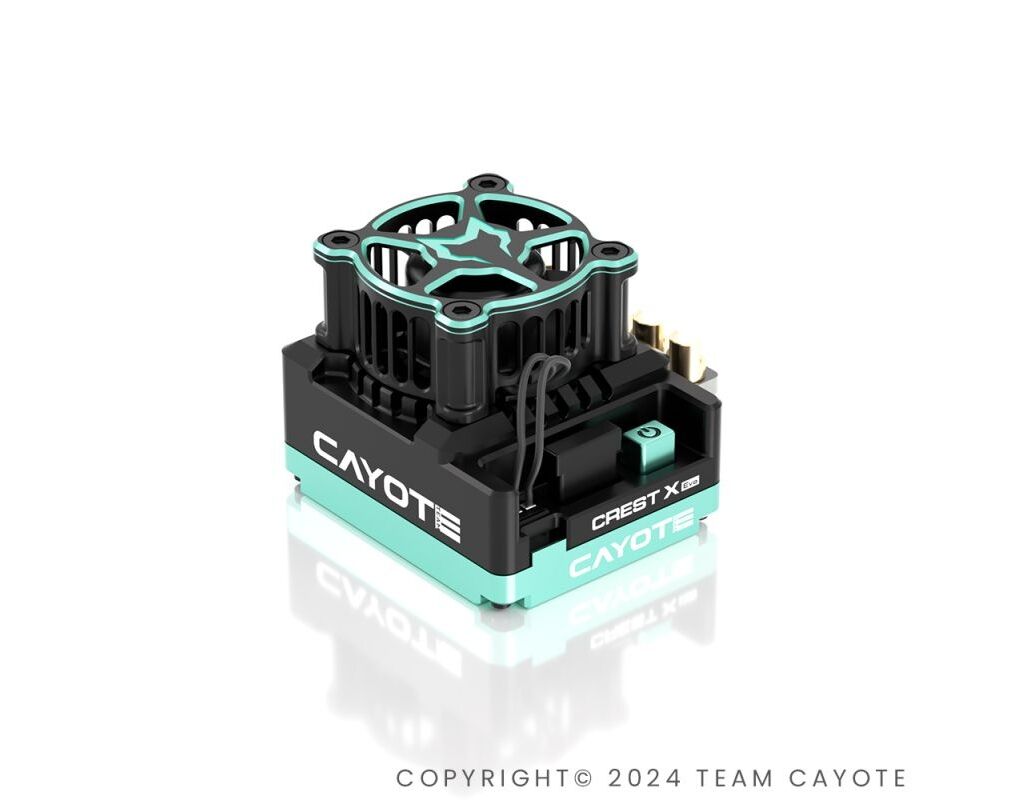

CAYOTE Racing ESC CREST X 160A/1100A 2-3S LiPo BEC 6.0V/7.4V 5A

Cayote Crest X ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.

Product Core Tech

Super Large 48-degree Boost & Turbo Timing

Increased power output and optimized motor efficiency.

Offline Data Recording

Track ESC's performance, lets you make informed decisions.

Over 33 Adjustable Parameters

Supports various power and drive modes.

1/10 RACING ESC

Crest X ESC

Product Features

Built-in Super Switching Mode BEC

Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.

Built-in Professional Reversing Shutdown

Only enabled in forward with brake and forward and reverse with brake modes.

Multiple Protection Functions

Low voltage protection, ESC and motor overheat protection.

Crest X ESC

Specifications

Scale: 1/10

Mode:Sensor/Sensorless

Cont. Current: 160A

Peak Current: 1100A

Battery: 2S Lipo

BEC Output Voltage: 6.0/7.4V

BEC Output Current: 8A Cont. / 12A Peak

Firmware Upgrade: Supported

Data Recording: Extreme value, Real-time Data

Size: 37.9x31.4x30mm

Weight: 55g

Basic Information

Compatibility

Motor: 1/10th TC≥4.5T；1/10th Off Road≥5.5T

Vehicle: 1/10th TC; 1/10th Off Road/Etc.

Wiring and Cooling

Output Wires: Black-13AWG-180MM*3

Input Wires: Red-13AWG-180MM*1

Black-13AWG-180MM*1

Cooling Fan: 25x25x10mm, 5-8.4V BEC

ESC Programming Via

Xlink Program Box Compatible

B-Tune Connect (Optional)

Internal Program (Port)(APP Control)
