Castle SENSORED 1406-1900KV FOUR-POLE BL Motor

Produkt Bewerten
CHF 121.90
1 Stk. beim Lieferant verfügbar - Versand in ca. 2 - 4 Werktagen
+ −
Vergleichen Merken Bewerten
Castle-060006800

Hersteller Info: Castle Creations - mehr Artikel >

  • Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
  • 30 Jahre RC Modellbau Erfahrung
  • Top Service von Profi Modellbauer
  • Über 500 Hersteller - 200`000 Artikel

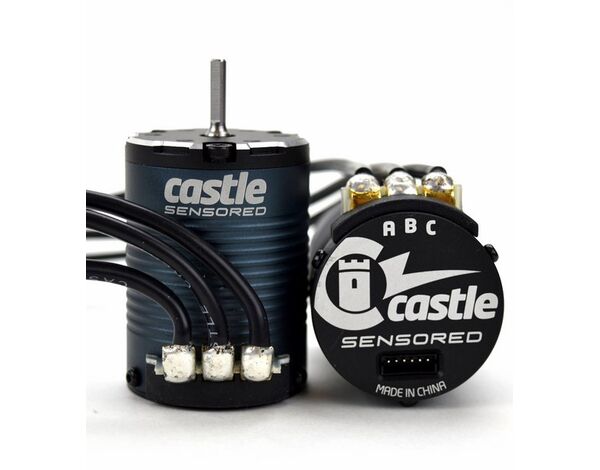

060-0068-00 Castle SENSORED 1406-1900KV FOUR-POLE BL Motor


For more than a decade Castle has been providing award winningbrushless sensorless motors to R/C enthusiasts worldwide. In responseto overwhelming requests by our customers, we have brought technologicaladvancements together that will deliver unprecedented performance inour new SENSORED motor Line.  Our latest additions are the 1406 series in a "SLATE" color, in 1900KV, 2280KV, 2850KV and 3800KV. These motors are ROCK READY and we have the startup on low RPMs under control. Castle now has you covered if you are looking for ultimate control out on the trails or on your Ultra 4 track days.

 Technical Specs


Input Voltage Range: 3S-4S LiPo
Kv: 1900
Max. RPM: 100,000
Size: Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 197 g / 6.9oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Optional 5mm rotor replacement available.
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - Coming Soon
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
Recommended ESC(s): Mamba Max Pro, Mamba X, Mamba Micro X
Max. Recommended Vehicle Weight: 8lbs when used for low speed/moderate driving style like rock crawling and trail running;
5lbs for more racing and aggressive driving styles.
Tech Notes:

Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
