Castle Regler Sidewinder Nano Micro PnP ESC 12.6V - XT30 and JST Stecker 2S-3S

Produkt Bewerten
CHF 87.90
Beim Lieferant nicht an Lager. Liefertermin unbekannt. (Lieferzeit min. 4 Wochen)
+
Castle-010017601

Hersteller Info: Castle Creations - mehr Artikel >

  • Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
  • 30 Jahre RC Modellbau Erfahrung
  • Top Service von Profi Modellbauer
  • Über 500 Hersteller - 200`000 Artikel

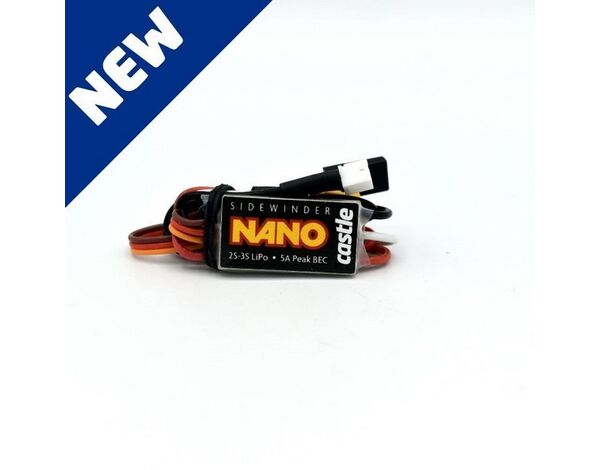

Castle REGLER SIDEWINDER NANO MICRO PnP ESC 12.6V - XT30 and JST plug



The PnP version comes with an XT30 battery connectors and JST plug pre-installed on the battery and motor wires. The JST plug is commonly found on most aftermarket outrunner style motors for 1/24th scale.

Please refer to our Surface Product Selector for recommended motor, battery and gearing for some of the more popular vehicles on the market.



PRODUCT FEATURES:

  • Input Voltage Range 2s-3s LiPo, 12.6V Max
  • Sensorless and Brushed Running Modes
  • Internal BEC 5V Fixed, 5A Peak
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)

PRODUCT APPLICATIONS:

  • Ideal for 1/24th scale 2WD or 4WD vehicles up to 1lbs
    • Vehicle examples: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24
  • 1/18th crawlers up 2.25lbs  (no rock racing/hill climbing)
    • Vehicle Examples: Axial UTB18, Traxxas TRX-4m, FMS FCX18

SIDEWINDER NANO COMES WITH:
  • Sidewinder Nano ESC
  • ESC Quick Start Guide

Technical Specs
Controller
Input Voltage Range: MIN: 2s LiPo  MAX: 3s LiPo  12.6  V
BEC Specifications: 5V fixed output, 5A Peak
Operating Environment: Not waterproof, silicone conformal coated for water resistance.
On/Off Switch: N/A
Cooling Fan: N/A
Size: Length: 1.1" (28mm)
Width: .61" (15.5mm)
Height: .37" (9.3mm)
Weight (with no battery connector): 0.5 oz. (14 grams)
Product Use Statements: Any appropriately sized outrunner can be utilized. A 1806 (stator size) is popular for the 24th scale crawlers, monster trucks, etc. 3000-3500ish kv for 2s, 2000-2500kv for 3s. (motor outside dimensions are ~16mm diameter, ~20mm length). A 2204 to 2208 (stator size) is a good choice for 1/18th scale crawlers (IE Axial UTB18, Traxxas TRX4m). Same kvs as above. (motor outside dimensions ~28mm diameter, ~26mm length)
Application Guidelines:   For 1/24th scale 2WD or 4WD (Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24) vehicles up to 1lbs. 1/18th crawlers up 2.25lbs (Axial UTB18, Traxxas TRX-4m, FMS FCX18) (no rock racing/hill climbing)
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows™ software, or the Castle Link iOS® or Android® app with B-LINK™ Bluetooth™ Adapter (sold separately).

Akku

Einsatzbereich:
  • Hobby Einsteiger
  • Hobby Racer / Basher

Netzteile

Spannung:
  • 3S - 11.1V

Brushless Set

Anschlüsse Verbindungen:
  • Plug and Drive (ohne Lötarbeiten)
BEC Spannung:
  • 5.0 Volt

Reifen

Regler Art:
  • Brushed (Bürsten Motoren)
  • Brushless Sensorless

Karosserien

Baugrösse Massstab:
  • 1/24
  • 1/18
Fahrzeugart:
  • Scale - Crawler Offroad

Fernsteuerung

Anwendungsbereich:
  • Fahrzeuge

Balancer Verlängerungen

Passend für Modelltyp:
  • Axial AX24 XC-1 1/18
  • Axial SCX24 - SCX-24
  • FMS FCX24 / FCX-24
  • Traxxas TRX-4M / TRX4M Defender Landrover - 1/18
  • Traxxas TRX-4M / TRX4M Ford Bronco 2021 - 1/18
  • Traxxas TRX-4M Chevy K10 High Lift
  • Traxxas TRX-4M F-150 K10 High Lift

Akkustecker

Stecker:
  • Molex
  • XT30

Werkzeug

Wassergeschützt:
Nein
