Castle REGLER MAMBA X SENSOR. 25.2V 1/10

010-0155-00 Castle REGLER MAMBA X, 25.2V WP ESC, 8A PEAK BEC, DATALOGGING

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through mud puddles in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.

FEATURES:

INPUT VOLTAGE RANGE OF 2S-6S with an internal 8A ADJUSTABLE BEC (5.25V-8.0V)

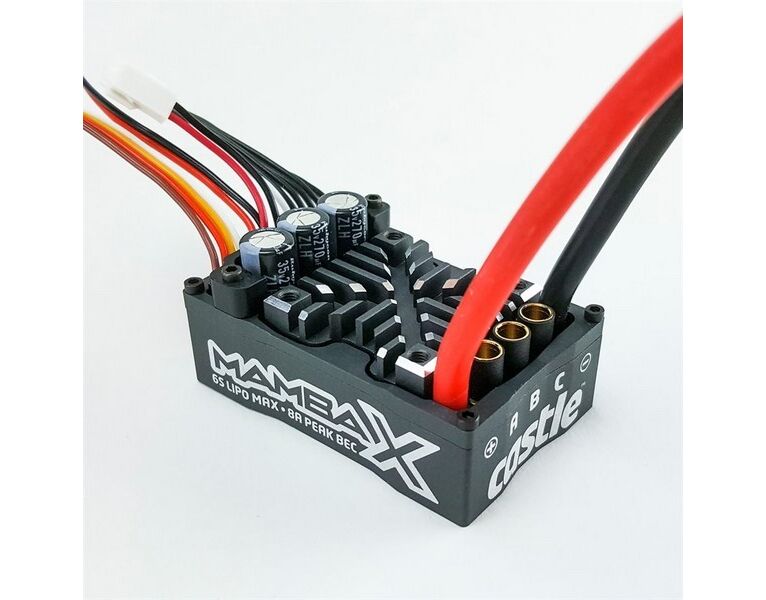

Housed in a RUGGED CNC-MACHINED ALUMINUM CASE and potted in WATERPROOF epoxy to withstand the most extreme driving conditions and environments.

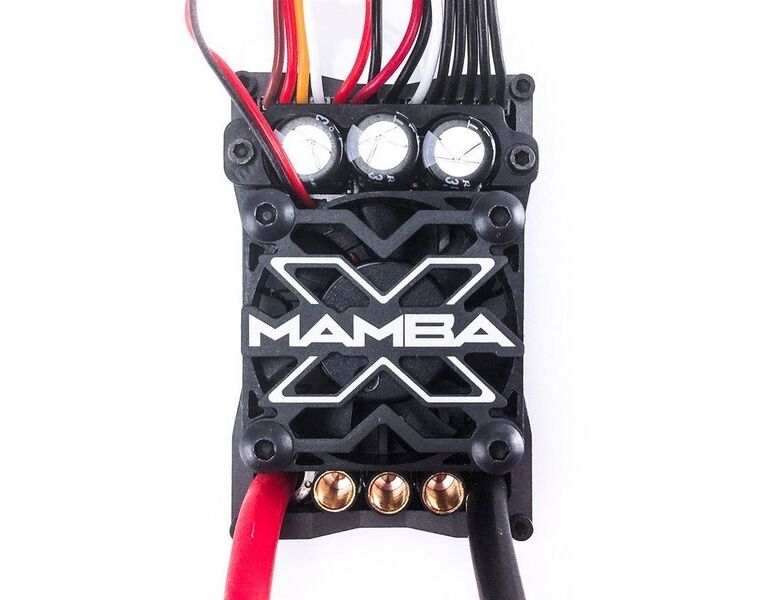

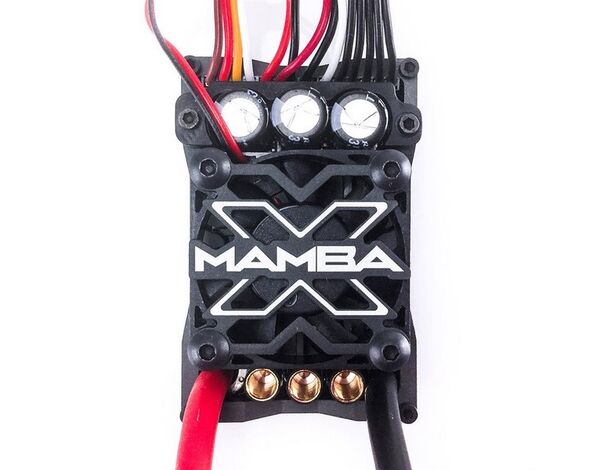

Removable 30MM COOLING FAN

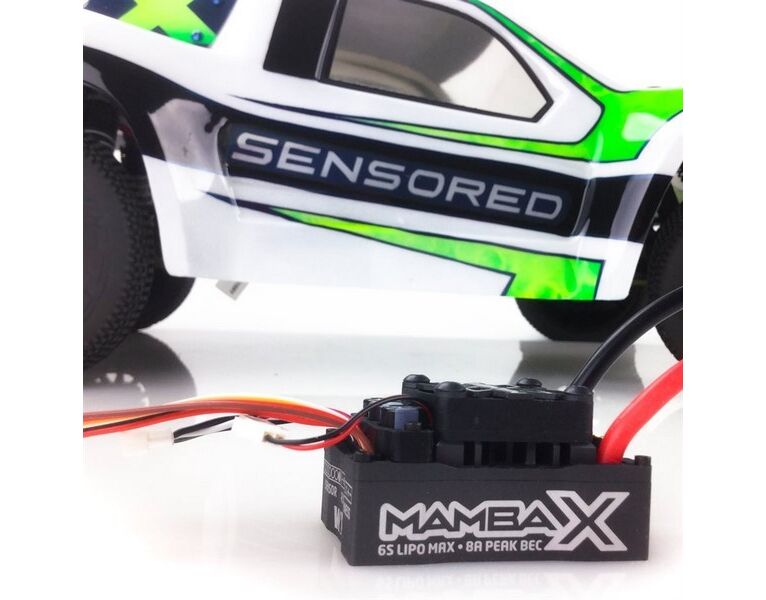

Pair with a Castle 4-POLE 12-SLOT SENSORED MOTOR to provide precise throttle control and buttery smooth starts

Convenient TRANSMITTER PROGRAMMING for six common adjustable settings.

Access to Castle’s INDUSTRY LEADING SOFTWARE with use of Castle Link USB (coupo n included for free USB with purchase) and freely downloadable Castle-Link Windows™ program , or the Castle Link iOS App and a B-LINK™ Bluetooth Adapter (sold separately) for anytime, anywhere system adjustments.

Firmware updates available with use of Castle Link USB and Castle Link Programming Suite.

DATA LOGGING captures and records performance data for maximum optimization of both performance and battery life

AUXILIARY WIRE FUNCTIONALITY allows for “on-the-fly” adjustments such as Max Power, Max Brake or the new Aux Wire Mode "Crawler/Rock Race", and MUCH more. These adjustments can be made real time, while driving, right from your transmitter.

Castle’s SMARTSENSE™ software, enabled by default in the Castle Link Programming Suite, will use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat.

QUIETSENSE™ is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

Mamba X ESC features flashing LEDs and now AUDIBLE ALERTS that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

Mamba X is TELEMETRY READY, which means owners of the Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

MAMBA X is ROAR CERTIFIED.

Additional features are continued in FEATURES tab.

Additional specifications continued in SPECIFICATIONS tab.

The MAMBA X ESC comes with:

MAMBA X ESC

Coupon for free Castle Link USB

MAMBA Logo Sheet

Gearing Chart for Castle Motors

Drivers Ed Guide

Quick Start Guide

ESCs have a tough life - landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale* race buggies. SmartSense allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castle’s new and improved throttle response keeps you ahead of the competition.

The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled "make-it-right" customer support. Call us, email us, or walk in our front door – we’re here to help.

Features:

Wide 2S to 6S input voltage range

Sensored Motor Support (Castle X-Series Sensor Harness Included)

Waterproof

8A Adjustable BEC (5.25V-8.0V)

Data-logging

Rugged CNC Aluminum Case

Castle Link Programming Support

SmartSense™

Integrated Capacitors

Removable 30mm Cooling Fan

Integrated 4mm Bullet Connectors

12 AWG Power Wires

Waterproof Switch

Audible Alerts and LED Alerts for easy diagnoses of common issues

Technical Specs

Input Voltage Range: MIN: 2S LiPo

MAX: 6S LiPo (25.2V)

BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V

Operating Environment: Waterproof* design allows for use in nearly any environment.

Brake: Proportional

Reversible: Yes, but may be disabled for racing.

On/Off Switch: Yes

Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)

Size: Length: 2.14" (54.4mm)

Width: 1.39" (35.2mm)

Height: 1.18" (30.0mm)

Weight (with wires): 3.56 oz. (101g)

Connectors: 4.0mm female bullets for motor connection.

Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.

Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 9bs/4kg

Recommended Motors: Castle 1406, 1410 and 1415 Sensored motors

Max. Recommended Vehicle Weight: Less than 9bs/4kg, with batteries, ready-to-run

Programmability: Fully programmable Castle feature set using Castle Link USB adapter(coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-LINK Bluetooth Adapter (sold separately).

Telemetry Link Capable: Yes

Tech Notes:

Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:10th and 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).

Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

Applying voltages higher than 25.2V will cause irreparable damage to ESC.

We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs
