Castle REGLER MAMBA X SCT SENSOR. 25.2V 1/10

010-0160-00 Castle MAMBA X SCT, SENSORED, 25.2V WP ESC AND 1415-2400KV COMBO

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

ESCs have a tough life - landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale* race buggies. SmartSense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castle’s new and improved throttle response keeps you ahead of the competition.

The Mamba X with 1415 2400kv sensored motor is the perfect combo for 1/10th scale 2WD and 4WD short course trucks and rock racers weighing up to 6.5lbs and running on 3s or 4s LiPo. It will have huge amounts of torque, low temperatures, and incredible speed making this the perfect combo for hardcore bashing and driveshaft snapping power.

Features:

Wide 2S to 6S input voltage range

Sensored Motor Support (Castle X-Series Sensor Harness Included)

Waterproof

8A Adjustable BEC (5.25V-8.0V)

Data-logging

Rugged CNC Aluminum Case

Castle Link Programming Support

SmartSense™

Integrated Capacitors

Removable 30mm Cooling Fan

Integrated 4mm Bullet Connectors

12 AWG Power Wires

Waterproof Switch

Audible Alerts and LED Alerts for easy diagnosis of common issues

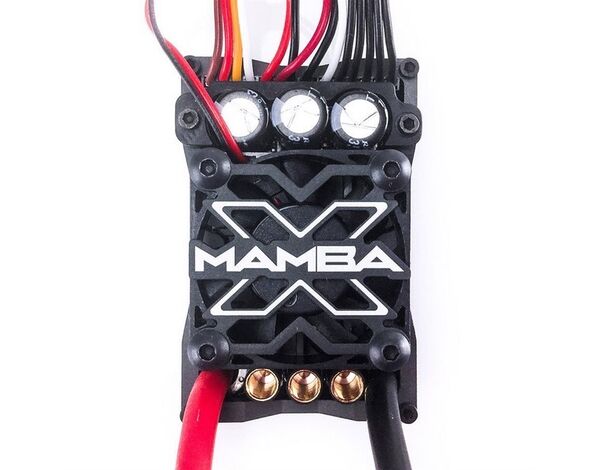

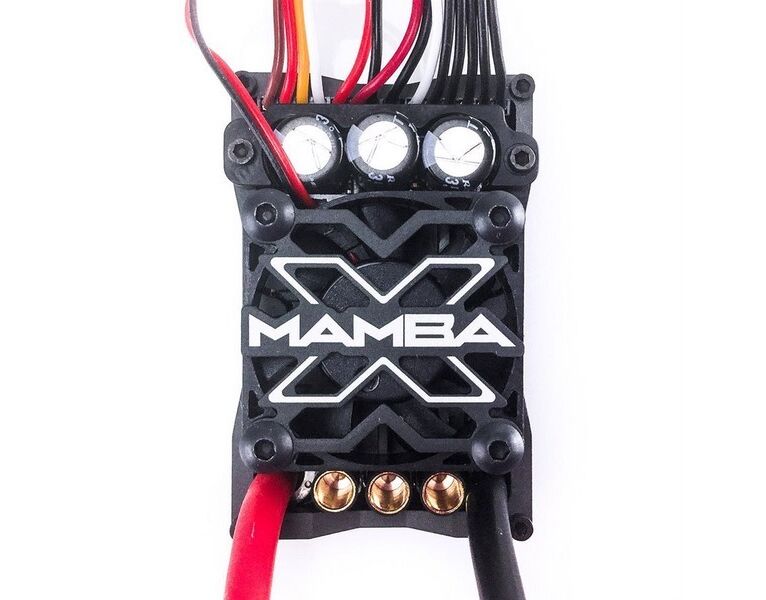

ESC Technical Specs

Input Voltage Range: MIN: 2S LiPo

MAX: 6S LiPo (25.2V)

(4s maximum with included 1415 -2400kv motor)

BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V

Operating Environment: Waterproof* design allows for use in nearly any environment.

Brake: Proportional

Reversible: Yes, but may be disabled for racing.

On/Off Switch: Yes

Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)

Size: Length: 2.14" (54.4mm)

Width: 1.39" (35.2mm)

Height: 1.18" (30.0mm)

Weight (with wires): 3.56 oz. (101g)

Connectors: 4.0mm female bullets for motor connection.

Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.

Product Use Statements:

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight: Up to 6.5lbs with included 1415 - 2400kv sensored motor.

Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.

Telemetry Link Capable: Yes

Tech Notes:

Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).

Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

Applying voltages higher than 25.2V will cause irreparable damage to ESC.

We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.

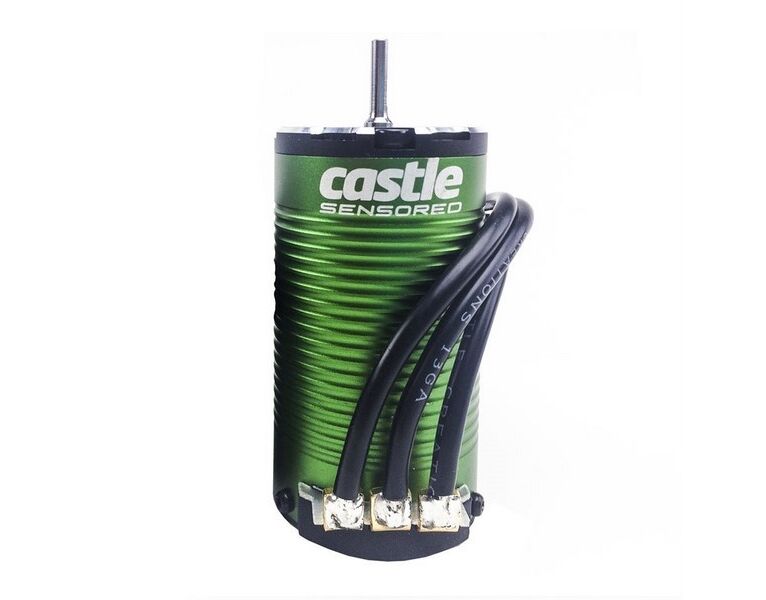

Motor Technical Specs

Input Voltage Range: 3-4S LiPo

Kv: 2400

Max. RPM: 75,000

Size: Length: 69.5mm

Diameter: 36mm

Weight (w/wires): 318g / 11.2oz

Shaft Size: Length: 15.5mm

Diameter: 1/8" (3.17mm)

Mounting Hole Specifications: M3 @ 25mm

Cooling Fan: Optional, coming soon!

Connectors: 4mm male Castle Bullet Connectors

Recommended ESC(s): Combo includes Mamba X ESC.

Max. Recommended Vehicle Weight: See application guidelines

Tech Notes:

Running modes: SMARTSENSE™, Sensored only

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
