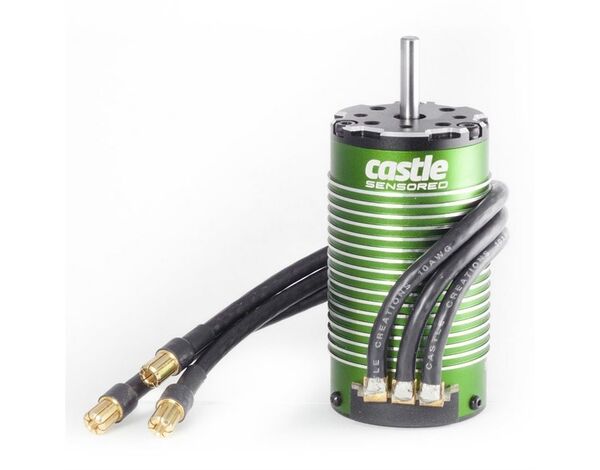

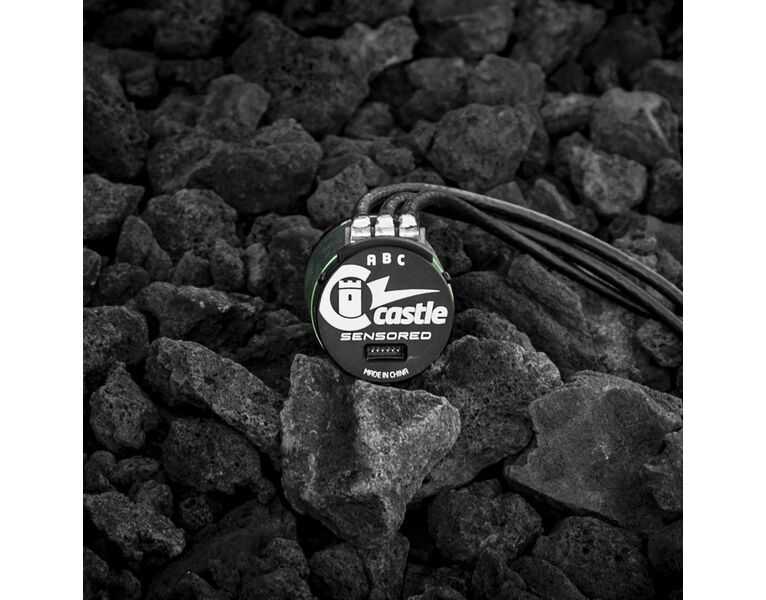

Castle MOTOR SENSORED 1512 2650KV BL

060-0061-00 Castle 1512 1Y Sensored Motor - 2650Kv

For more than a decade Castle has been providing award winning brushless sensorless motors to R/C enthusiasts worldwide. In response to overwhelming requests by our customers, we have brought technological advancements together that will deliver unprecedented performance in our new SENSORED motor line.

WHY SENSORED?

Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don’t have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.

Technical Specs

Input Voltage Range: 2-4S LiPo

Kv: 2650

Max. RPM: 60,000

Size: Length: 67.7mm

Diameter: 40mm (41.4mm with fins)

Weight (w/wires): 383g / 13.6oz

Shaft Size: Length: 20mm

Diameter: 5mm

Mounting Hole Specifications: M3 and M4 @ 25mm

Cooling Fan: Optional, coming soon!

Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.

Items Needed for Operation: Compatible Electronic Speed Control (ESC)

Application Guidelines: Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs. (ROAR 1/8 MOD APPROVED)

Recommended ESC(s): Mamba Monster X, Mamba X

Max. Recommended Vehicle Weight: See application guidelines

Tech Notes:

Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
