Castle Creations 1/8 Mamba Monsterx ESC WP

Castle Creations Mamba Monster X Waterproof System

FEATURES

For 1/8 scale buggies, truggies and on-road vehicles, and 1/10 scale

monster trucks weighing up to 15lbs (6.8kg)

2S-6S LiPo compatible

Adjustable BEC (battery eliminator circuit) 5.5V, 6.0V, 7.5V, or 8.0V

8A Peak), default 5.5V

Castle Link Adjustable settings include;

Brake/Reverse Type

LiPo Cutoff Voltage

Brake Amount

Drag Brake

Motor Type

Programmable Auxiliary Wire (AUX) allows adjustments to several

settings such as torque control and max throttle from a compatible

transmitter

Sensored motor capable with purchase of optional (not included)

Sensor harness from Castle Creations

Telemetry ready with purchase of Castle Creations S.BUS Telemetry

Link

One year limited warranty through Castle Creations beginning at date

of purchase

INCLUDES

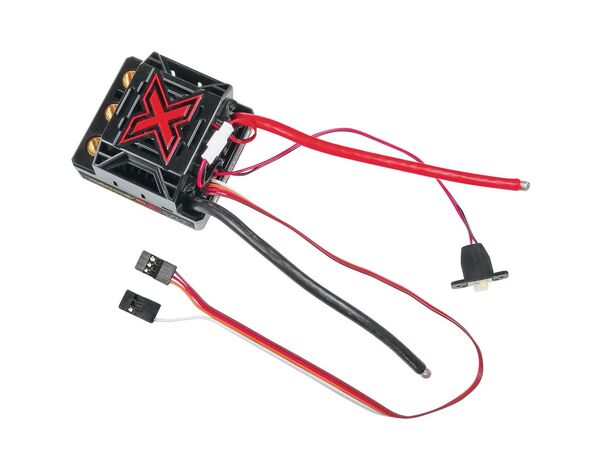

Castle Creations Mamba Monster X ESC with On/Off Switch, pretinned

Battery Leads, Receiver Connector, Female Motor Connectors, 30mm

Cooling Fan and Instruction Booklet

REQUIREMENTS

Compatible Motor and LiPo Battery

Battery Connectors, Castle Creations 6.5mm are recommended

SPECIFICATIONS

Input Voltage Range: Min. 2S LiPo, Max. 6S, 25.2V

BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V

Brake: Proportional

Reversible: Yes, with lockout

On/Off Switch: Yes

Dimensions: 2.08 x 1.9" (53 x 49mm)

Weight: 3.91oz (111.1g) with wires

COMMENTS

Not intended for operation while submerged in liquid. If unit is

operated in wet conditions, rinse with fresh water to remove

dirt or corrosives, then fully dry unit. Cooling fan is not

waterproof and must be removed prior driving in wet conditions.

Meet the Next Monster.

First, there was the Monster. Then the Monster 2. Now there’s the Monster X.

As revolutionary as it’s predecessors, the new Monster X Electronic Speed Controller (ESC) takes Castle’s legendary “monster” performance to a whole new level. The waterproof* Monster X is capable of 2S LiPo up to a maximum of 6S LiPo and is the legendary “power up” for 1/8th scale buggies, truggies and on-road vehicles as well as 1/10th scale monster trucks and R/C monstrosities weighing up to 15 lbs.

Extreme Power • Extreme Control • Extreme Fun!

The new Monster X provides even more extreme performance than the Monster 2. Most notable is the addition of a new, programmable Auxiliary Wire that allows users to make “on-the-go” adjustments to several settings, such as torque control and max throttle. The new Auxiliary Wire allows users to fine-tune the performance of their Monster X ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once the user has programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. The Monster X also features updated Audible Alerts that will notify drivers of possible issues with their calibrations and error conditions to help diagnose problems in the field.

Sensored Motor Capable

The new Monster X can also be configured to run sensored brushless motors with the purchase of an optional Sensor Harness from Castle Creations. This sensored-motor capability opens up a whole new segment of R/C enthusiasts who will now get to experience (or see the rooster tails) from a Castle Monster X-equipped racer, rock racer or rock crawler. One of our Monster X Beta testers summed up his experience, saying “Another race weekend in the books. Once again, in sensored mode, the ESC (Monster X) performed flawlessly. Great power and smooth transition from sensored to non-sensored.”

Extreme Power

The new Monster X is capable of running from 2S to a maximum of 6S LiPo power, but now features an improved heavy-duty adjustable Battery Eliminator Circuit (BEC) to provide plenty of power for today’s power hungry servos. The Monster X BEC voltage is adjustable from 5.5V, 6.0V, 7.5V and 8.0V with an 8 AMP peak. The Monster X also comes standard with a highly efficient, 30mm ESC cooling fan.

Monster X Data Logging

Also new to the Monster X is the ability to capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the upcoming Castle Quick Connect Duo (sold separately) that allows the user access to both wires into the single Castle Link connection. The user can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.

Telemetry Ready (Compatibility Coming Soon for Futaba T4PX Transmitters!)

The new Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations S.BUS Telemetry Link when it is released. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection, can increase your “tuning awareness” and in turn, let you have more time doing what you love to do – burn rubber and throw dirt!

Throttle Input:

Flexible input - Digital S.BUS Channels (1-16) or an External non-S.BUS Input

Available Data

(Monster X): •Battery Voltage

•Battery Current

•Motor Power Output

•RPM

•BEC Voltage

•Battery Ripple

•ESC Temperature

Compatible Transmitters:

Surface Transmitters:

•Futaba T4PX (coming soon!)

Tech Notes: Link Live mode must be enabled through Castle Link USB adapter to allow communication with the Telemetry Link.

Extreme ESC and Extreme Combos

The Mamba Monster X is available as an ESC only or in combination with Castle’s award-winning 15XX Series brushless motors; the 1515 2200KV or the 1512 2650KV motor.

Pricing and Availability

Retail pricing and availability will be announced extremely soon. Please check back frequently or watch media and social media outlets for future announcements.

Castle Link Adjustable Settings for te Monster X include:

•Brake/Reverse Type

•LiPo Cutoff Voltage

•Brake Amount

•Drag Brake

•Motor Type

Additional Castle Link Benefits include:

•Access all firmware updates, included added feature sets released from Castle Engineering FREE of charge.

•Intuitive Demo Mode

•Ability to save basic to complex setup profiles for later use

Award Winning Combination

The new Mamba Monster X is available as an ESC only or in combination one of two different Castle motors; the 1515 2200KV or the 1512 2650KV brushless motor.

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
