Castle Combo Mamba X 25.2V WP ESC +1406-1900kV

010-0155-08 Castle Creations Mamba X 25.2V WP ESC +1406-1900kV Combo

Crawler Scale Brushless Combo Set mit Sensor Waterproofed

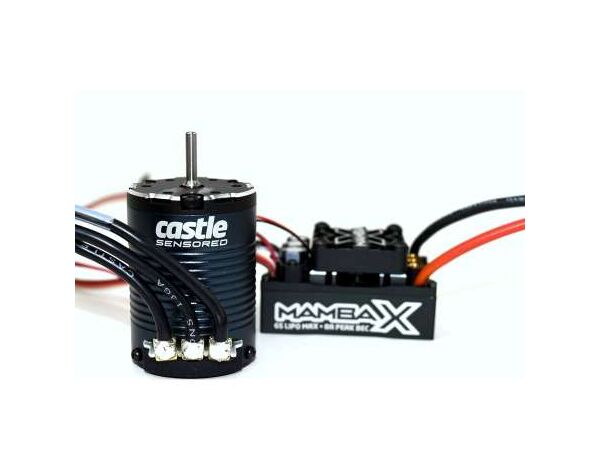

This is the Castle Creations Mamba X Extreme 1/10 scale Waterproof ESC

with the 1406 4-Pole 1900Kv Sensored Brushless Motor.

FEATURES

ESC;

2S - 6S input voltage range

Compatible with 1/10 - 1/8 scale vehicles weighing less that 9lbs

(4kg), including many extreme 1/10 scale setups and 1/8 scale race

buggies

Smartsense uses motor's sensors for smooth starts, excellent torque

and low-speed drivability - then transitions to the sensorless

mode with electronic timing, Smartsense automatically advances

timing for peak performance during all driving conditions

On-the-fly adjustments can be made through the AUX wire once enabled

in Castle Link, then settings can be tuned from transmitter while

driving

Recordable real-time data such as RPM, battery current and voltage,

ESC and motor temperature, throttle input and more

Audible alerts

CNC aluminum case

12AWG high strand count silicone insulated battery wires

Motor;

For 1/10 scale rock crawlers using 3-4S LiPo batteries and weighing

less than 8lbs (3.6kg), may also be used in more aggressive

setups in lighter 1/10 scale touring cars, stadium trucks or

buggies weighing up to 5lbs (2.3kg)

4 pole 12 slot design for high degree of efficiency and less heat

SMARTSENSE uses motor's sensors to provide smooth starts, excellent

torque and low-speed drivability-once motor is turning it

transitions to sensorless mode

ROAR standard sensor port and labeled connections

High performance 0.2mm steel lamination stacked stator

CNC machined anodized 6061 T-6 aluminum motor can and endbells

Rebuildable design allows replacement of front end bell/bearing

assembly or rotor/shaft assembly

One year limited warranty through Castle Creations beginning at date

of purchase

INCLUDES

Mamba X Extreme 1/10 scale Electronic Speed Control, CSEM9500

Replaceable Wire Harness with Receiver Wire, AUX Wire, Fan Connector,

and Waterproof Switch

Replaceable Motor Sensor Harness

12AWG Battery Wires

Cooling Fan

4mm Gold Plated Bullet Motor Connectors

1406 4-Pole 1900Kv Sensored Brushless Crawler Motor, CSEC6800

REQUIREMENTS

Battery connectors to match selected battery

SPECIFICATIONS

ESC,

Input Voltage Range: 2S - 6S LiPo

BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V

Programmable: Fully programmable with Castle Link USB Adapter, and

downloadable Castle Link Windows software

Telemetry Link Capable: Yes

Brake: Proportional

Reverse: Yes, may be disabled for racing

Cooling Fan: 1.2" (30mm) removable

Dimensions: 2.14 x 1.39 x 1.18" (54.4 x 35.2 x 30mm)

Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to

run

Motor,

Input Voltage Range: 3-4S LiPo

Kv: 1900

Max RPM: 100,000

Length: 1.9" (49.5mm)

Diameter: 1.4" (36mm)

Weight: 6.9oz (197g)

Shaft Length: 0.59" (15mm)

Shaft Diameter: 1.8" (3.17mm)

Mounting Hole Specs: M3 @ 25mm

Connectors: 4mm Male Castle Bullet Connectors attached to 13 gauge

wire

Sensor Wire Length: 8.3" (210mm)
