Castle Antriebsset Mamba Micro X2 1007 6350KV Sensored 2S-3S Motor/Regler
Neu
- Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
- 30 Jahre RC Modellbau Erfahrung
- Top Service von Profi Modellbauer
- Über 500 Hersteller - 200`000 Artikel
Bitte melden Sie sich an, damit wir Sie über eine Antwort benachrichtigen können

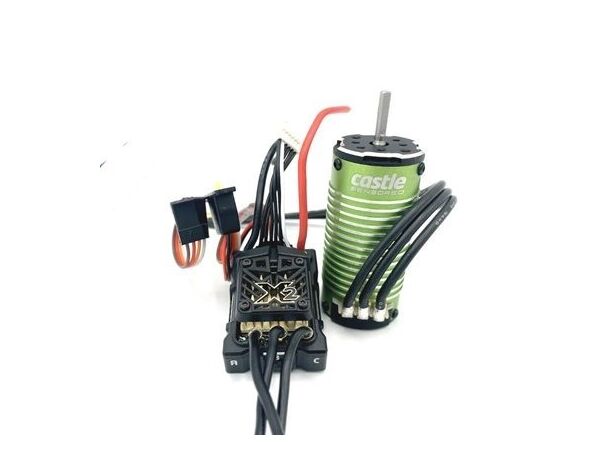

Castle MOTOR/REGLER MAMBA MICRO X2 1007 6350kv/SENSORED 16.8V WP ESC (4.0mm)
Putting the X in Extreme!
The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.
This ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 2.75lbs and up to 3s LiPo. The sensored 1007-6350kv motor allows for smooth startup with heaps of torque and low temperatures.
ESC FEATURES:
- Input Voltage range 2S-3S with included motor.
- Waterproof design
- Sensored Motor capable
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (discount coupon included)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
- Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.
Mamba Micro X2 w/1007-6350Kv Purchase Includes:
- Mamba Micro X2 ESC with 4mm Connectors
- 1007-6350Kv Sensored Motor
- Sensor Harness
- Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
- Quick Start Guide
- Castle Decals
| ESC Technical Specs | |
|---|---|
| Input Voltage Range: | 2S-4S LiPo (16.8V Max) (3s LiPo Max with included 1007-6350kv motor) |
| BEC Specifications: | 2A Peak, 5.5v or 7.5v (5.5v default) |
| Operating Environment: | Waterproof* design allows for use in nearly any environment. |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled |
| On/Off Switch: | Yes, waterproof |
| Cooling Fan: | Coming soon, uses 25mm size fan |
| Size (L x W x H): | 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84") |
| Weight (with wires): | 1.66 oz / 47 grams |
| Connectors: | 4.0 mm bullets |
| Items Needed for Operation: | Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended. |
| Product Use Statements: |
|
| Programmability: | Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately) |
| Telemetry Link Capable: | Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters. |
| Tech Notes: |
*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
|
| Motor Technical Specs | |
|---|---|
| Input Voltage Range: | 2s - 3s LiPo |
| Kv: | 6350 |
| Max. RPM: | 80,000 |
| Size: | Length: 50.3 mm Diameter: 28 mm |
| Weight (w/wires): | 4.05oz (114.8g) |
| Shaft Size: | Length: 15 mm Diameter: 1/8" (3.175 mm) |
| Mounting Hole Specifications: | M2.5 @ 14mm & 16mm; M3 @ 19 mm |
| Connectors: | 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC) |
| Application Guidelines: | Ideal for 1/16th and 1/14th scale vehicles weighing up to 2.75lbs. |
| Recommended ESC(s): | Mamba Micro X2 |
| Running Modes: | SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode. |
| Tech Notes: |
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments. |
Akku
Einsatzbereich:
- Hobby Racer / Basher
- Competition Wettbewerb
Fahrtenregler
Max. Betriebspannung:
- 11.1 Volt
Lipo Zellenzahl max.:
- 3
Motoren Elektro
Welle Durchmesser mm:
- 3.14 mm (1/10 Standard)
Drehzahl Kv pro Volt ca.:
- 6350
Brushless Set
Anschlüsse Verbindungen:
- Lötarbeiten Erforderlich
Reifen
Regler Art:
- Brushless Sensored
Durchmesser mm ca.:
- 28
Karosserien
Baugrösse Massstab:
- 1/16
- 1/14
Fahrzeugart:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
Fernsteuerung
Anwendungsbereich:
- Fahrzeuge
Servohörner
Länge mm ca.:
- 60
Werkzeug
Wassergeschützt:
Ja
