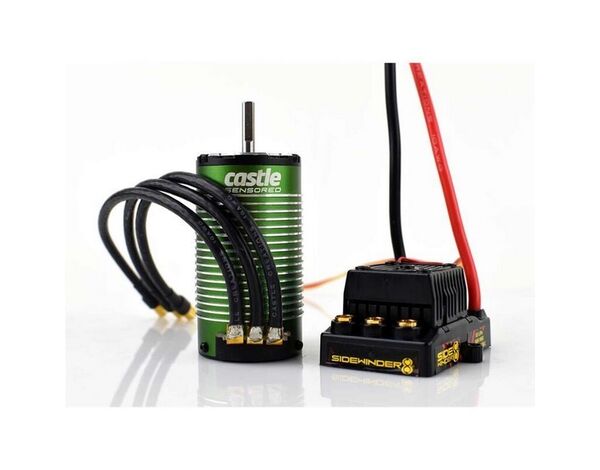

Castle MOTOR/REGLER 1/8 CASTLE 1515 2200kv/SIDEWINDER
Affordable Waterproof Brushless Power System!
Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.
ESC Features:
- 2s - 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.
- Smooth sensorless motor operation with included 1515-2200kv sensored** brushless motor
- Large 6.5mm female motor bullet connectors (male connectors sold separately)
- Waterproof design ESC and splash resistant 30MM fan*
- Powerful 5.5 volts fixed, 8 amps Peak BEC
- LED error codes for common error conditions
- Convenient transmitter programming for nine common adjustable settings
- Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
- Proudly Designed, Assembled and Supported in Olathe, KS USA
- Backed by Castle Creations' 1 YR WARRANTY
1515-2200Kv V2 Features:
- Input Voltage range: 2s-6s LiPo
- Redesigned stator and rotor resulting in improved magnetic flux.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note below)
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA.
- Backed by Castle Creations' 1-YEAR WARRANTY
Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.
Sidewinder 8 Combo includes:
- Sidewinder 8th ESC
- Castle 1515-2200Kv V2 brushless sensored* motor
- Drivers Ed and Quick Start Guide
- Castle decal sheet
| Technical Specs | |
|---|---|
| Controller: | |
| Input Voltage Range: | MIN: 2S LiPo MAX: 6S LiPo (25.2V) |
| BEC Specifications: | 5.5V fixed; 8A peak |
| Operating Environment: | Waterproof* design allows for use in nearly any environment. |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled for racing. |
| On/Off Switch: | No |
| Cooling Fan: | Yes, factory equipped (30mm), fully removable** (see Product Use Statements below) |
| Size: | L: 2.45" (62.2mm) W: 2.20" (56mm) H: 1.33" (34mm) |
| Weight (with wires): | 3.52 oz. (100g) |
| Connectors: | 6.5mm female bullets for motor connection. |
| Items Needed for Operation: | Battery Connector required, 6.5mm Castle Connectors are recommended. |
| Product Use Statements: | *Although Sidewinder 8 and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. |
| Application Guidelines: | Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 11 lbs, with batteries, ready-to-run. |
| Recommended Motors: | Combo includes Castle sensored 1515 2200Kv V2: Max Cells: 6s Lipo or 16 NiMH |
| Max. Recommended Vehicle Weight: | Less than 11 lbs, with batteries, ready-to-run |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-Link Bluetooth Adapter (sold separately). |
| Telemetry Link Capable: | No |
| Tech Notes: |
|
| Motor Specs | |
|---|---|
| Input Voltage Range: | 2-6S LiPo |
| Kv: | 2200 |
| Max. RPM: | 60,000 |
| Size: | Length: 75.4mm Diameter: 40mm (41.4mm with fins) |
| Weight (w/wires): | 429g (15.1oz); 380g without wires |
| Shaft Size: | Length: 20mm Diameter: 5mm |
| Mounting Hole Specifications: | M3 and M4 @ 25mm |
| Cooling Fan: | Optional, coming soon! |
| Connectors: | 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire. |
| Application Guidelines: | Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.(11 lbs. with included Sidewinder 8 ESC) |
| Max. Recommended Vehicle Weight: | See application guidelines |
| Tech Notes: |
Running modes: Sensorless (with included Sidewinder 8 ESC), but can run Sensored and SMARTSENSE with Castle sensored capable ESCs. |
Akku
Einsatzbereich:
- Hobby Racer / Basher
- Competition Wettbewerb
Fahrtenregler
Max. Betriebspannung:
- 22.2 Volt
Motor Baugrösse:
- Andere
Lipo Zellenzahl max.:
- 6
Motoren Elektro
Welle Durchmesser mm:
- 5 mm (1/8 Standard)
Drehzahl Kv pro Volt ca.:
- 2200
Anschluss Motor:
- Kabel
Brushless Set
Anschlüsse Verbindungen:
- Lötarbeiten Erforderlich
BEC Spannung:
- 6.0 Volt
Lüfter / Kühlkörper
Lüfter:
Ja
Reifen
Regler Art:
- Brushless Sensorless
Durchmesser mm ca.:
- 40
Karosserien
Baugrösse Massstab:
- 1/8
- 1/7
Fahrzeugart:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- Tourenwagen Onroad
Fernsteuerung
Anwendungsbereich:
- Fahrzeuge
Servohörner
Länge mm ca.:
- 75
Balancer Verlängerungen
Passend für Modelltyp:
- Arrma Kraton - 1/5 - BLX - 8S
- Arrma Kraton - 1/8 - BLX - 6S
- Arrma Limitless - 1/7 - Roller
- Arrma MOJAVE - 1/7 - BLX - 6S
- Arrma Notorious - 1/8 - BLX - 6S
- Arrma Outcast - 1/5 - BLX - 8S
- Arrma Outcast- 1/8 - BLX - 6S
- Arrma Senton - 1/8 - BLX - 6S
- Arrma Talion - 1/8 - BLX - 6S
- Arrma Typhon - 1/8 - BLX - 6S
- Team Corally Dementor / Jambo XP 6S
- Team Corally Punisher XP 6S
- Team Corally Python / Radix XP 6S
- Team Corally Shogun XP 6S
Akkustecker
Stecker:
- Kein Stecker vormontiert
Werkzeug
Wassergeschützt:
Ja
