Castle Antriebsset 1/10 Sidewinder 4 1412-2100KV Sensored 5mm Welle Motor/Regler 2S-3S

Produkt Bewerten
Neu
CHF 236.90
Beim Lieferant nicht an Lager. Liefertermin unbekannt. (Lieferzeit ca. 4-12 Wochen)
+ −
Vergleichen Merken Bewerten
Castle-010016409

Hersteller Info: Castle Creations - mehr Artikel >

  • Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
  • 30 Jahre RC Modellbau Erfahrung
  • Top Service von Profi Modellbauer
  • Über 500 Hersteller - 200`000 Artikel

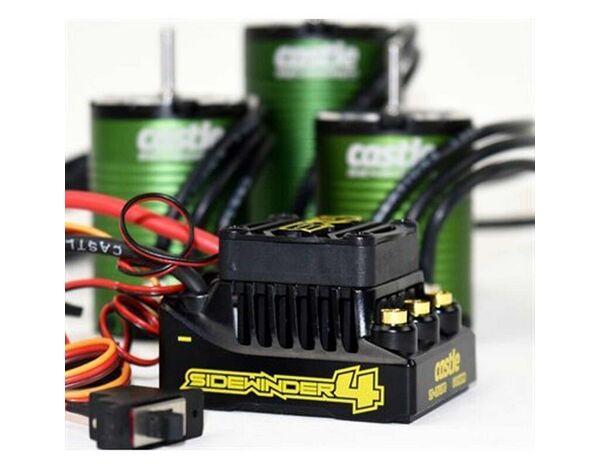

Castle MOTOR/REGLER 1/10 SW 4 w/1412-2100 SENSORED 5mm MOTOR



While the all new SIDEWINDER 4™ builds upon Castle’s most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run our newest technology, CRYO-DRIVE™. CRYO-DRIVE™ combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.



This combo includes a Sidewinder 4 ESC and 1412-2100 5mm shaft sensored* motor. The 1412-2100 is ideal for 2WD and 4x4 Short Course Trucks, 1/10th Monster Trucks, and Rock Racers.

  • Input Voltage Range for 1412-2100 5MM Kv Combo : 2s-3s LiPo
  • SENSORLESS and BRUSHED Running Modes
  • 5.0 VOLTS FIXED, 2AMP internal BEC (Battery Eliminator Circuit)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
  • ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
  • 30mm removable fa
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.

Technical Specs
Controller
Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: 30mm fan included
ESC Size: L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm)
ESC Weight (w/wires): 2.26 oz. (64 g)
Connectors: 4mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
Product Use Statements: *Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Application Guidelines: For short course trucks running on 2s and 3s LiPo and weighing up to 6.5 lbs.
It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
Recommended Motors: Combo includes 1412-2100kv (5mm shaft) brushless motor.
Max. Recommended Vehicle Weight: No more than 6.5lbs with battery, ready-to-run.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters.
Tech Notes: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Motor Technical Specs
Input Voltage Range: 2s-4s LiPo (3s Max with included Sidewinder 4)
Kv: 2100
Max. RPM: 75,000
Size: Length: 62.5 mm
Diameter: 36 mm
Weight (w/wires): 265.4g (9.4oz)
Shaft Size: Length: 21 mm
Diameter: .197" (5 mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210 mm length sensor wire
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SC Trucks, Monster Trucks and rock racers
Max. Recommended Vehicle Weight: 6.5lbs
Tech Notes:

Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Water Resistant Design: Routine maintenance is recommended after running in wet conditions.Please refer to this document for running and maintaining motors in wet environments.





    Akku

    Einsatzbereich:
    • Hobby Racer / Basher
    • Competition Wettbewerb

    Fahrtenregler

    Max. Betriebspannung:
    • 11.1 Volt
    Motor Baugrösse:
    • 550 1/10 Lang 3660 (D=36mm)
    Lipo Zellenzahl max.:
    • 3

    Motoren Elektro

    Welle Durchmesser mm:
    • 3.14 mm (1/10 Standard)
    Drehzahl Kv pro Volt ca.:
    • 2100
    Max. BEC Ampère:
    • 2

    Brushless Set

    Anschlüsse Verbindungen:
    • Lötarbeiten Erforderlich
    BEC Spannung:
    • 5.0 Volt

    Lüfter / Kühlkörper

    Lüfter:
    Ja

    Reifen

    Regler Art:
    • Brushless Sensored
    Durchmesser mm ca.:
    • 36

    Karosserien

    Baugrösse Massstab:
    • 1/10
    Fahrzeugart:
    • Buggy Offroad
    • Stadium Truck / Truggy Offroad
    • Monster Truck Offroad

    Fernsteuerung

    Anwendungsbereich:
    • Fahrzeuge

    Servohörner

    Länge mm ca.:
    • 62

    Balancer Verlängerungen

    Passend für Modelltyp:
    • Absima AB3.4 - 1/10 Buggy
    • Absima AMT3.4 - 1/10 Truck
    • Absima ASB1 - 1/10 Dune Buggy
    • Absima AT3.4 - 1/10 Truggy
    • Absima ATC3.4 - 1/10 Onroad
    • Amewi AM10SC SHORT COURSE - 1/10
    • Amewi AM10T TRUGGY Brushless - 1/10 - 2S
    • Amewi AM10TC TOURENWAGEN - 1/10
    • Amewi BAD BOY DRIFTCAR - 1/10
    • Amewi BLADE BUGGY - 1/10
    • Amewi BOOSTER BUGGY - 1/10
    • Amewi BREAKER SAND BUGGY - 1/10
    • Amewi CRAZIST MONSTERTRUCK - 1/10
    • Amewi DUNE BREAKER SAND BUGGY - 1/10
    • Amewi DUNE BUGGY - 1/10
    • Amewi EVO-X 6000 Buggy Brushless - 1/10 - 2S
    • Amewi KASA TOURENWAGEN
    • Amewi ONE-TEN 4WD BUGGY - 1/10
    • Amewi R.X. WRC - 1/10
    • Amewi SHORT COURSE TRUCK - 1/10
    • Amewi T-HEAD TRUGGY - 1/10
    • Amewi TERMINATOR MT - 1/10
    • Amewi TORCHE MONSTERTRUCK - 1/10
    • Arrma Granite 4x4 - 550 Mega
    • Arrma Senton 4x4 - 550 Mega
    • Arrma Typhon - 1/10 - 550 Mega
    • Carson Bad Buster 2.0- 1/10
    • Carson Beetle Warrior - 1/10
    • Carson Cage Buster - 1/10
    • Carson Ninja 4WD X10 - 1/10
    • DF Models BigFlash Truck - 1/10 XL
    • DF Models BigHammer Truggy - 1/10 XL
    • DF Models CRUSHER Buggy - 1/10
    • DF Models CRUSHER Truck - 1/10
    • DF Models DesertFighter Buggy - 1/10
    • DF Models DesertTruck- 1/10
    • DF Models DesertTruggy - 1/10
    • DF Models FastTruck Brushless - 1/10 -3S
    • DF Models FunFighter - 1/10
    • DF Models GhostFighter - 1/10
    • DF Models HotFire Brushless - 1/10 XL - 3S
    • DF Models HotFlash Brushless - 1/10 XL - 3S
    • DF Models HotHammer Brushless - 1/10 XL - 3S
    • DF Models SpeedFire Buggy - 1/10 XL
    • DF Models SpeedRacer Brushless - 1/10 - 3S
    • DF Models TW-1 BR Brushless - 1/10 XL - 3S
    • ECX AXE Monster 2WD - 1/10
    • ECX Brutus 2WD - 1/10
    • ECX Circuit 2WD - 1/10
    • ECX Monster Truck 1/10
    • Himoto 1/10 Bowie Monster Truck
    • Himoto 1/10 Katana Truggy
    • Himoto 1/10 Tanto Buggy
    • HPI Blitz
    • HPI Firestorm
    • HPI Jumpshot MT
    • HRC NEOXX Scrapper V2 Brushed Truck - 2S
    • HRC NEOXX ARTEMIX V2 Brushed Truggy - 2S
    • LRP S10 Blast BX 2
    • LRP S10 Blast MT 2
    • LRP S10 Blast SC 2
    • LRP S10 Blast TC 2
    • LRP S10 Blast TX 2
    • LRP S10 Twister 2 BX
    • LRP S10 Twister 2 MT
    • LRP S10 Twister SC
    • LRP S10 Twister TX
    • Maverick Phantom XT
    • Maverick Quantum MT
    • Maverick Quantum XT
    • Maverick STRADA DC
    • Maverick STRADA DT
    • Maverick STRADA MT
    • Maverick STRADA RX
    • Maverick STRADA SC
    • Maverick STRADA TC
    • Maverick STRADA XB
    • Maverick STRADA XT
    • Tamiya TT-01 / TT-02 / TT01 TT02
    • Tamiya TT-02B / TT02B
    • Team Corally - MOXOO SP
    • Team Corally - TRITON SP
    • Team Corally MAMMOTH SP
    • Team Magic E5 - 1/10 - Brushed
    • Team Magic E5 HX - 1/10 - Brushed - 3S
    • Traxxas Bandit 2WD - XL-5
    • Traxxas Rustler 2WD 1/10 - XL-5
    • Traxxas Rustler 4x4 1/10 - XL-5
    • Traxxas Slash 2WD 1/10 - XL-5
    • Traxxas Stampede 2WD 1/10 - XL-5
    • Traxxas Stampede 4x4 1/10 - XL-5

    Werkzeug

    Wassergeschützt:
    Ja
