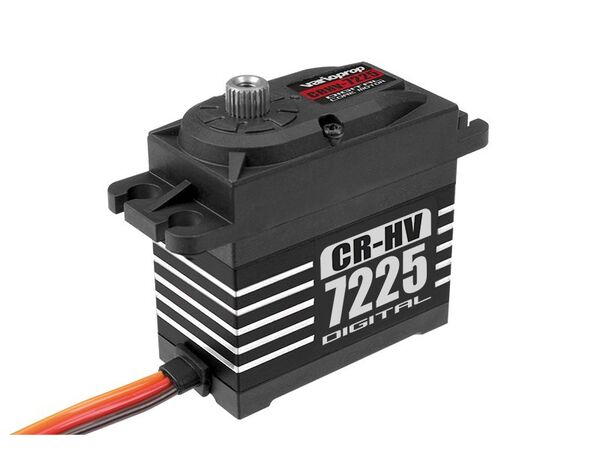

C-52022 Varioprop - Digital Servo - CRHV-7225-MG - High Voltage - Core Motor - Metal Gear – 25 Kg Torque

CHF 29.90

Exakter Lagerstatus wird ermittelt

Artikel-Nr.: 198367093
Hersteller-Nr.: C-52022

Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
30 Jahre RC Modellbau Erfahrung
Top Service von Profi Modellbauer
Über 500 Hersteller - 200`000 Artikel

C-52022 Varioprop - Digital Servo - CRHV-7225-MG - High Voltage - Core Motor - Metal Gear – 25 Kg... mehr

Produktinformationen "C-52022 Varioprop - Digital Servo - CRHV-7225-MG - High Voltage - Core Motor - Metal Gear – 25 Kg To"

C-52022 Varioprop - Digital Servo - CRHV-7225-MG - High Voltage - Core Motor - Metal Gear – 25 Kg Torque

Technische Daten

Brandname
Team Corally
Servo Technology
Digital Ultra High Voltage
Input Voltage (V)
6.0V - 8.4V
Servo Type / Size
Standard
Water Protection
water-resistant
Motor Type
DC Motor
Gear Material
Metal Gears
Ball Beared
Ball Beared
Servo Case
Aluminium - Composite
Servo Power - Torque Kg/cm
16 - 25 Kg/cm
Servo Speed 60°/sec
0,14 sec / 60°
Length (mm)
40.5 mm
Width (mm)
20.5 mm
Height (mm)
28.5 mm
Weight (g)
63 g
Speed 60°/Sec @ 6.0V
0,14 sec / 60°
Speed 60°/Sec @ 7.4V
0,13 sec / 60°
Torque kg/cm @ 7.4V
25.0 Kg/cm
Connector type
JR
Spline size
25T Spline

Stellzeit sec.:	0.13
Stellkraft kg:	25
Stecker:	JR Uniplug
Anwendungsbereich:	Fahrzeuge , Boote / Schiffe
Einsatzbereich:	Hobby Racer / Basher
Servohorn Aufnahme:	25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
Modulation:	Digital
Motor Art.:	Coreless
Material Gehäuse:	Kunstoff / Metall
Gehäuse Grösse:	Standard Servo
Getriebe:	Metall
Max. Eingangsspannung:	8.4 Volt
Wassergeschützt:	Ja
Länge mm ca.:	41
Breite mm ca.:	40
Höhe mm ca.:	20
Gewicht g ca.:	63
Passend für Modelltyp:	Arrma Granite 4x4 - BLX - 3S, Arrma Big Rock Crew Cap - BLX - 3S, Arrma Typhon - 1/10 - BLX - 3S, Arrma Senton 4x4 - 1/10 - BLX - 3S, Arrma Kraton - 1/10 - BLX - 4S, Arrma Outcast - 1/10 - BLX - 4S, Arrma Typhon - 1/8 - BLX - 6S, Arrma Talion - 1/8 - BLX - 6S, Arrma Kraton - 1/8 - BLX - 6S, Arrma Outcast- 1/8 - BLX - 6S, Arrma Notorious - 1/8 - BLX - 6S, Arrma Senton - 1/8 - BLX - 6S, Arrma MOJAVE - 1/7 - BLX - 6S, Absima CR3.4 SHERPA / KHAMBA, Absima STOKE Gen2.0 - 6S, Absima STOKE Gen2.0 - 4S , Absima Torch Gen2.0 - 6S, Absima Torch Gen2.0 - 4S , Absima ASSASSIN Gen2.0 - 4S, Absima ASSASSIN Gen2.0 - 6S, Team Magic E6 Raptor - 6S, Team Magic E6 J-Star - 6S, Team Magic E6 III BES - 6S, Team Magic B8ER - 4S, Team Magic B8ER - 6S, Team Magic 4SETH - 4S, Team Magic SETH - 6S, Traxxas E-Revo 1/10 EVX-2 - 4S (Bis 2015), Traxxas E-Revo / ERevo 1/10 VXL - 6S, Traxxas E-Revo 2.0 / ERevo 1/10 VXL - 6S, Traxxas E-Maxx 1/10 VXL - 6S, Traxxas E-Maxx 1/10 EVX-2 - 4S (Bis 2015), Traxxas Hoss 1/10 - VXL - 3S, Traxxas Rustler 4x4 1/10 VXL - 3S, Traxxas Rally 1/10 - XL-5, Traxxas Rally 1/10 - VXL - 3S, Traxxas Stampede 4x4 1/10 VXL - 3S, Traxxas Slash 2WD 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 - XL-5, Traxxas Slash 4x4 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 LCG - XL-5, Traxxas Slash 4x4 1/10 LCG VXL - 3S, Traxxas Slayer Pro 4x4, Traxxas Summit 1/10 - EVX-2 - 4S, Traxxas XO-1 / XO1 1/7 - VXL - 6S, Traxxas Spartan Boot - VXL - 6S, Traxxas M41 Boot - VXL - 6S, Tamiya CC-01 / CC01, Tamiya CC-02 / CC02, Tamiya CW-01 / CW01, Tamiya WR-01 / WR01, Tamiya WR-02 / WR02, Tamiya WR-02G / WR02G, Tamiya WR-02B / WR02B, Tamiya WR-02CB / WR02CB, Tamiya WT-01 / WT01, Tamiya XV-01 / XV01, Tamiya GF-01 / GF01, Tamiya SW-01 / SW01, Tamiya G6-01 / G601, Axial Capra, Axial SCX10 - SCX-10, Axial RR10, Axial Wraith, ECX Monster Truck 1/10, HPI Blitz, HPI Jumpshot MT, Maverick STRADA MT, Maverick STRADA XT, Maverick STRADA SC, Himoto 1/10 Bowie Monster Truck, LRP S10 Blast TX 2, LRP S10 Blast MT 2, LRP S10 Blast SC 2, LRP S10 Blast TC 2, LRP S10 Twister 2 MT, LRP S10 Twister SC, Team Corally Kronos / Muraco XP 6S, Team Corally Python / Radix XP 6S, Team Corally Dementor / Jambo XP 6S, Team Corally Shogun XP 6S, Team Corally MAMMOTH SP, Team Corally - TRITON SP, Team Corally - MOXOO SP , Losi TENACITY-T - 3S, Losi TENACITY-SCT - 3S, Losi TENACITY-DB Pro - 3S, Losi TENACITY-TT - 3S, Losi Lasernut U4 - 4S, Traxxas Revo 3.3, Traxxas Nitro Slash, Traxxas T-Maxx, Amewi TORCHE MONSTERTRUCK - 1/10, Amewi SHORT COURSE TRUCK - 1/10, Amewi CRAZIST MONSTERTRUCK - 1/10, Amewi AM10T TRUGGY Brushless - 1/10 - 2S, Amewi AM10SC SHORT COURSE - 1/10, Amewi ONE-TEN 4WD BUGGY - 1/10, Amewi BREAKER SAND BUGGY - 1/10, Amewi T-HEAD TRUGGY - 1/10, Amewi TERMINATOR MT - 1/10, Amewi DUNE BREAKER SAND BUGGY - 1/10, Carson Ninja 4WD X10 - 1/10, Carson Beetle Warrior - 1/10, Carson Cage Buster - 1/10, Carson Bad Buster 2.0- 1/10, Tamiya Super Storm Dragon, Tamiya Monster Beetle, Tamiya Blackfoot, Tamiya Pick Up Bruiser, Tamiya Clod Buster, Tamiya HiLux HighLift, Tamiya Subaru Brat, DF Models CRUSHER Truck - 1/10, DF Models GhostFighter - 1/10, DF Models FunFighter - 1/10, DF Models DesertFighter Buggy - 1/10, DF Models DesertTruggy - 1/10, DF Models DesertTruck- 1/10, DF Models SpeedRacer Brushless - 1/10 - 3S, DF Models FastTruck Brushless - 1/10 -3S, DF Models HotFire Brushless - 1/10 XL - 3S, DF Models BigHammer Truggy - 1/10 XL, DF Models HotHammer Brushless - 1/10 XL - 3S, DF Models TW-1 BR Brushless - 1/10 XL - 3S, DF Models BigFlash Truck - 1/10 XL, DF Models HotFlash Brushless - 1/10 XL - 3S, Team Corally Radix XP 4S, Team Corally Punisher XP 6S

mehr

Menü schliessen

Artikel Eigenschaften "C-52022 Varioprop - Digital Servo - CRHV-7225-MG - High Voltage - Core Motor - Metal Gear – 25 Kg To"

Stellzeit sec.:	0.13
Stellkraft kg:	25
Stecker:	JR Uniplug
Anwendungsbereich:	Fahrzeuge , Boote / Schiffe
Einsatzbereich:	Hobby Racer / Basher
Servohorn Aufnahme:	25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
Modulation:	Digital
Motor Art.:	Coreless
Material Gehäuse:	Kunstoff / Metall
Gehäuse Grösse:	Standard Servo
Getriebe:	Metall
Max. Eingangsspannung:	8.4 Volt
Wassergeschützt:	Ja
Länge mm ca.:	41
Breite mm ca.:	40
Höhe mm ca.:	20
Gewicht g ca.:	63
Passend für Modelltyp:	Arrma Granite 4x4 - BLX - 3S, Arrma Big Rock Crew Cap - BLX - 3S, Arrma Typhon - 1/10 - BLX - 3S, Arrma Senton 4x4 - 1/10 - BLX - 3S, Arrma Kraton - 1/10 - BLX - 4S, Arrma Outcast - 1/10 - BLX - 4S, Arrma Typhon - 1/8 - BLX - 6S, Arrma Talion - 1/8 - BLX - 6S, Arrma Kraton - 1/8 - BLX - 6S, Arrma Outcast- 1/8 - BLX - 6S, Arrma Notorious - 1/8 - BLX - 6S, Arrma Senton - 1/8 - BLX - 6S, Arrma MOJAVE - 1/7 - BLX - 6S, Absima CR3.4 SHERPA / KHAMBA, Absima STOKE Gen2.0 - 6S, Absima STOKE Gen2.0 - 4S , Absima Torch Gen2.0 - 6S, Absima Torch Gen2.0 - 4S , Absima ASSASSIN Gen2.0 - 4S, Absima ASSASSIN Gen2.0 - 6S, Team Magic E6 Raptor - 6S, Team Magic E6 J-Star - 6S, Team Magic E6 III BES - 6S, Team Magic B8ER - 4S, Team Magic B8ER - 6S, Team Magic 4SETH - 4S, Team Magic SETH - 6S, Traxxas E-Revo 1/10 EVX-2 - 4S (Bis 2015), Traxxas E-Revo / ERevo 1/10 VXL - 6S, Traxxas E-Revo 2.0 / ERevo 1/10 VXL - 6S, Traxxas E-Maxx 1/10 VXL - 6S, Traxxas E-Maxx 1/10 EVX-2 - 4S (Bis 2015), Traxxas Hoss 1/10 - VXL - 3S, Traxxas Rustler 4x4 1/10 VXL - 3S, Traxxas Rally 1/10 - XL-5, Traxxas Rally 1/10 - VXL - 3S, Traxxas Stampede 4x4 1/10 VXL - 3S, Traxxas Slash 2WD 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 - XL-5, Traxxas Slash 4x4 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 LCG - XL-5, Traxxas Slash 4x4 1/10 LCG VXL - 3S, Traxxas Slayer Pro 4x4, Traxxas Summit 1/10 - EVX-2 - 4S, Traxxas XO-1 / XO1 1/7 - VXL - 6S, Traxxas Spartan Boot - VXL - 6S, Traxxas M41 Boot - VXL - 6S, Tamiya CC-01 / CC01, Tamiya CC-02 / CC02, Tamiya CW-01 / CW01, Tamiya WR-01 / WR01, Tamiya WR-02 / WR02, Tamiya WR-02G / WR02G, Tamiya WR-02B / WR02B, Tamiya WR-02CB / WR02CB, Tamiya WT-01 / WT01, Tamiya XV-01 / XV01, Tamiya GF-01 / GF01, Tamiya SW-01 / SW01, Tamiya G6-01 / G601, Axial Capra, Axial SCX10 - SCX-10, Axial RR10, Axial Wraith, ECX Monster Truck 1/10, HPI Blitz, HPI Jumpshot MT, Maverick STRADA MT, Maverick STRADA XT, Maverick STRADA SC, Himoto 1/10 Bowie Monster Truck, LRP S10 Blast TX 2, LRP S10 Blast MT 2, LRP S10 Blast SC 2, LRP S10 Blast TC 2, LRP S10 Twister 2 MT, LRP S10 Twister SC, Team Corally Kronos / Muraco XP 6S, Team Corally Python / Radix XP 6S, Team Corally Dementor / Jambo XP 6S, Team Corally Shogun XP 6S, Team Corally MAMMOTH SP, Team Corally - TRITON SP, Team Corally - MOXOO SP , Losi TENACITY-T - 3S, Losi TENACITY-SCT - 3S, Losi TENACITY-DB Pro - 3S, Losi TENACITY-TT - 3S, Losi Lasernut U4 - 4S, Traxxas Revo 3.3, Traxxas Nitro Slash, Traxxas T-Maxx, Amewi TORCHE MONSTERTRUCK - 1/10, Amewi SHORT COURSE TRUCK - 1/10, Amewi CRAZIST MONSTERTRUCK - 1/10, Amewi AM10T TRUGGY Brushless - 1/10 - 2S, Amewi AM10SC SHORT COURSE - 1/10, Amewi ONE-TEN 4WD BUGGY - 1/10, Amewi BREAKER SAND BUGGY - 1/10, Amewi T-HEAD TRUGGY - 1/10, Amewi TERMINATOR MT - 1/10, Amewi DUNE BREAKER SAND BUGGY - 1/10, Carson Ninja 4WD X10 - 1/10, Carson Beetle Warrior - 1/10, Carson Cage Buster - 1/10, Carson Bad Buster 2.0- 1/10, Tamiya Super Storm Dragon, Tamiya Monster Beetle, Tamiya Blackfoot, Tamiya Pick Up Bruiser, Tamiya Clod Buster, Tamiya HiLux HighLift, Tamiya Subaru Brat, DF Models CRUSHER Truck - 1/10, DF Models GhostFighter - 1/10, DF Models FunFighter - 1/10, DF Models DesertFighter Buggy - 1/10, DF Models DesertTruggy - 1/10, DF Models DesertTruck- 1/10, DF Models SpeedRacer Brushless - 1/10 - 3S, DF Models FastTruck Brushless - 1/10 -3S, DF Models HotFire Brushless - 1/10 XL - 3S, DF Models BigHammer Truggy - 1/10 XL, DF Models HotHammer Brushless - 1/10 XL - 3S, DF Models TW-1 BR Brushless - 1/10 XL - 3S, DF Models BigFlash Truck - 1/10 XL, DF Models HotFlash Brushless - 1/10 XL - 3S, Team Corally Radix XP 4S, Team Corally Punisher XP 6S
