906 Reedy 550-SL4 Sensorless Brushless Motor Features: Powerful 4-pole Sensorless... mehr
Produktinformationen "906 Reedy 550-SL4 Sensorless Brushless Motor"

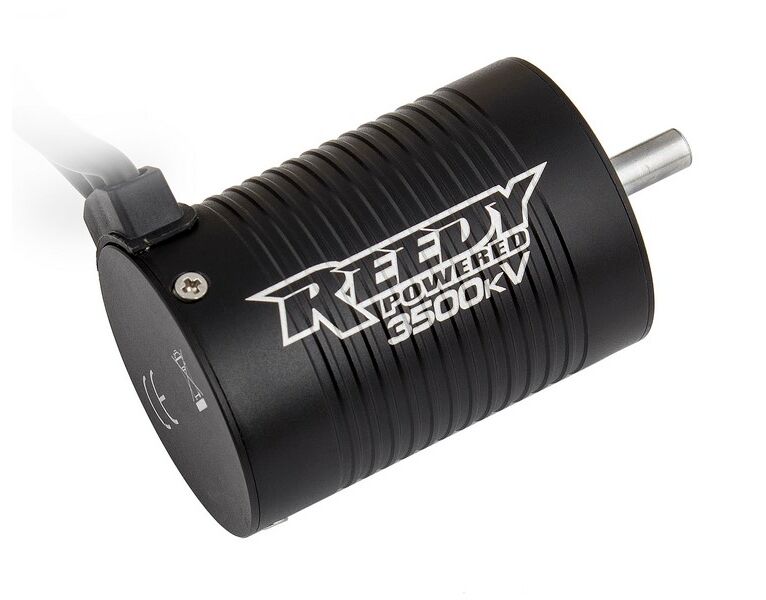

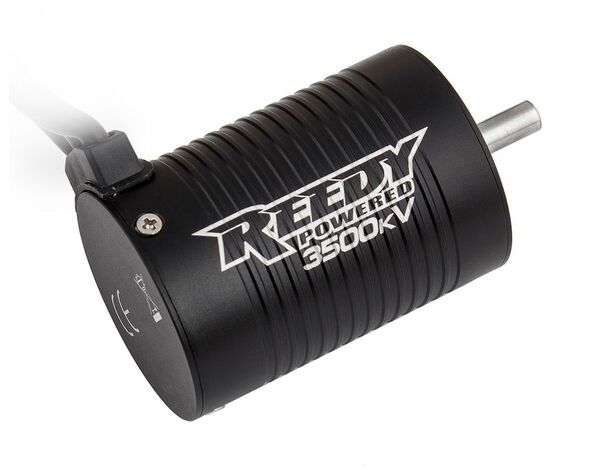

906 Reedy 550-SL4 Sensorless Brushless Motor
Features:
Powerful 4-pole Sensorless design
Oversized precision ball bearings
High-strength rotor
Hardened steel shaft
Triple insulated windings
Flexible silicone wires
Low-resistance connectors
The perfect upgrade for your 1:10 4WD RTR!
Reedy's new 550-SL4 is the perfect upgrade for your 1:10 4WD RTR! Due to its sensorless 4-pole configuration, the 550-SL4 operates powerfully, efficiently, and reliably in a variety of vehicles and applications.
The 3500kV rating provides plenty of speed with 2S LiPo batteries. But install a 3S LiPo battery for insane speeds that are barely controllable! A high-strength rotor provides plenty of torque and resists overheating better than 2-pole alternatives.
Flexible silicone wires ease wire routing in tight spaces and work in conjunction with 3.5mm bullet connectors to reduce power-robbing resistance and heat. Triple insulated windings, a hardened 5mm steel shaft, and oversized ball bearings enhance reliability to keep you out of the pits and on the track.
SPECIFICATIONS
Cells: 2-3 LiPo, 4-9 NiMH
kV rating: 3500
Applications: 1:10 4WD buggy, truck, SC
Dimensions: 52mm x 36mm
Shaft Diameter: 5.0mm
Weight: 222g
Power Wires: 12-gauge silicone
Connectors: 3.5mm
Features:
Powerful 4-pole Sensorless design
Oversized precision ball bearings
High-strength rotor
Hardened steel shaft
Triple insulated windings
Flexible silicone wires
Low-resistance connectors
The perfect upgrade for your 1:10 4WD RTR!
Reedy's new 550-SL4 is the perfect upgrade for your 1:10 4WD RTR! Due to its sensorless 4-pole configuration, the 550-SL4 operates powerfully, efficiently, and reliably in a variety of vehicles and applications.
The 3500kV rating provides plenty of speed with 2S LiPo batteries. But install a 3S LiPo battery for insane speeds that are barely controllable! A high-strength rotor provides plenty of torque and resists overheating better than 2-pole alternatives.
Flexible silicone wires ease wire routing in tight spaces and work in conjunction with 3.5mm bullet connectors to reduce power-robbing resistance and heat. Triple insulated windings, a hardened 5mm steel shaft, and oversized ball bearings enhance reliability to keep you out of the pits and on the track.
SPECIFICATIONS
Cells: 2-3 LiPo, 4-9 NiMH
kV rating: 3500
Applications: 1:10 4WD buggy, truck, SC
Dimensions: 52mm x 36mm
Shaft Diameter: 5.0mm
Weight: 222g
Power Wires: 12-gauge silicone
Connectors: 3.5mm
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Max. Betriebspannung: | 11.1 Volt |
Drehzahl Kv pro Volt ca.: | 3500 |
Anzahl Pole: | 4 |
Lipo Zellenzahl max.: | 3 |
Motor Art.: | Brushless |
Motor Baugrösse: | 550 1/10 Lang 3660 (D=36mm) |
Anschluss Motor: | 3.5 mm |
Regler Art: | Brushless Sensorless |
Welle Durchmesser mm: | 5 mm (1/8 Standard) |
Länge mm ca.: | 52 |
Durchmesser mm ca.: | 36 |
Gewicht g ca.: | 222 |
Artikel Eigenschaften "906 Reedy 550-SL4 Sensorless Brushless Motor"
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Max. Betriebspannung: | 11.1 Volt |
Drehzahl Kv pro Volt ca.: | 3500 |
Anzahl Pole: | 4 |
Lipo Zellenzahl max.: | 3 |
Motor Art.: | Brushless |
Motor Baugrösse: | 550 1/10 Lang 3660 (D=36mm) |
Anschluss Motor: | 3.5 mm |
Regler Art: | Brushless Sensorless |
Welle Durchmesser mm: | 5 mm (1/8 Standard) |
Länge mm ca.: | 52 |
Durchmesser mm ca.: | 36 |
Gewicht g ca.: | 222 |
