8990 Traxxas Maxx LED LICHT Set komplett mit High-Voltage-Wandler

8990 Traxxas LED LICHT-Kit MAXX komplett mit High-Voltage-Wandler

Komplett LED Set inkl. Stossstangen für Traxxas Maxx 1/10

High-Intensity LED Light Kit for Maxx Monster Trucks


Built Maxx® Tough!

The Traxxas Maxx redefines speed, durability and toughness with its innovative design and massively overbuilt chassis. Only Traxxas could design an LED light kit worthy of the Maxx’s extreme performance. Built to handle brutal real-world punishment, this light kit is waterproof and built Traxxas Tough™ for maximum fun. Blaze a path through the night with this intense-white high-output LED light kit.

Traxxas innovation delivers features and performance not found on any other lighting system. The included high voltage amplifier packs the muscle to efficiently power the high-power light bar, while minimizing losses from excessive current and heat. The tightly regulated output provides stable lighting performance, without flickering or dimming as the battery voltage changes. The smart brake lights work when brakes are applied in both forward and reverse directions. This eliminates the common and annoying problem with generic aftermarket systems that turn on the brake lights while reversing.

Maxx High-Output Off-Road LED Light Kit (#8990) with Functional Low and High Beam

MAXX LED LIGHT KIT (#8990) INCLUDES:

High-output front LED light bar
Multi-function rear LED light bar
Replacement bumpers with LED cutouts
High-voltage 8-channel power amplifier for intense, brilliant LED lighting
Regulated output for stable lighting performance
(no flickering or dimming as the battery voltage changes)
Mounting hardware

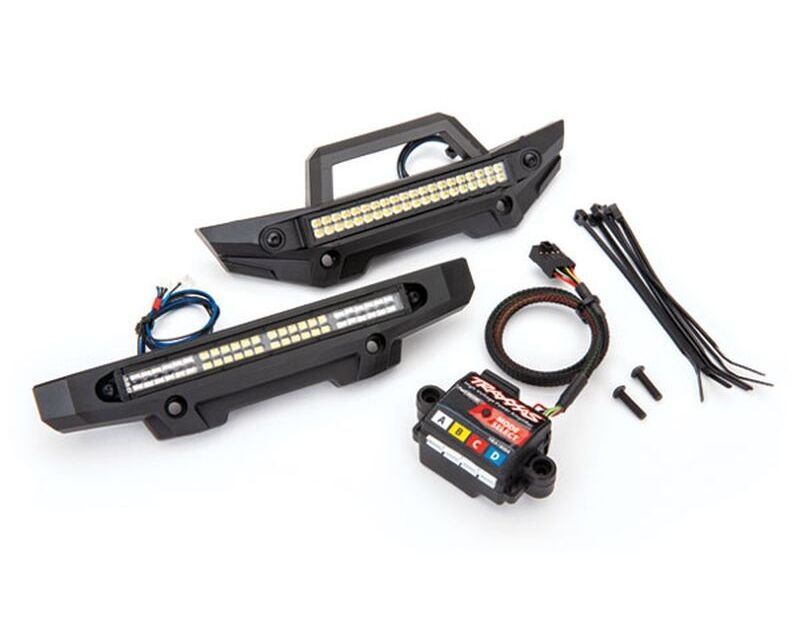

Contents - High Intensity LED Light Kit (#8990) for Maxx

Wiring is simple: Plug the main connector from the power amplifier into the power port on the Traxxas VXL-4s Electronic Speed Control, and then plug the individual lighting modules into the power amplifier. Switch between three manual lighting modes on the power amplifier (such as high beam and low beam), or use the Traxxas Link app and Wireless Module (#6511*) to control individual lights remotely and create custom lighting configurations. Of course, since it’s from Traxxas, this powerful, feature-rich system is rugged and fully waterproof for all of your exciting RC adventures.

Chassis Wiring - High Intensity LED Light Kit (#8990) for Maxx

High-Voltage Power - High Intensity LED Light Kit (#8990) for MaxxHigh-Voltage Power
Rather than draw valuable power away from the BEC, the power amplifier uses the Power Port on the VXL-4s ESC to tap power directly from the batteries. The power amplifier transforms and regulates battery current to for reliable high-power performance.


Traxxas Link App
Technology
Customize your setup with three different lighting modes on the amplifier. Use the Traxxas Link App* to further customize the lighting modes to your specifications or turn the lights on and off directly in the app. The kit includes all mounting hardware to make installation a breeze.


QUICK FEATURES ON MAXX LED LIGHT KIT (#8990)

Compatible with Velineon VXL-4s ESC
Fully functioning brake lights that work
in both forward and reverse direction
Fully waterproof
Three default lighting modes controlled from the power amplifier
Low and high beam brightness settings
Easy to install with simplified, concealed, color-coded wiring
Includes front and rear bumpers with LED cutouts
Firmware updatable through the app
App-controlled lighting functions*
Turn lights on/off remotely
Build a custom dashboard
Customize lighting configurations and actions
Add additional lighting components


LED Configuration with Traxxas Link App - High Intensity LED Light Kit (#8990) for Maxx

Maxx High-Output Off-Road LED Light Kit (#8990) with Functional Tail, Brake, and Reverse Lighting

Maxx High-Output Off-Road LED Light Kit (#8990) with Functional Low and High Beam


MODEL 8990: MAXX LED Light Kit
