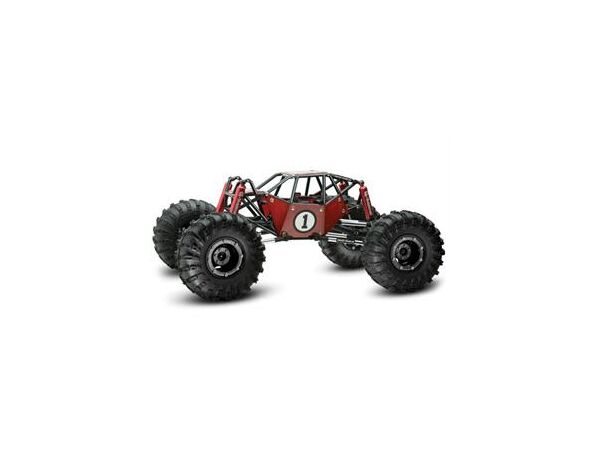

GM51000 GMade 1/10 R1 Rock Buggy 4WD Crawler Kit (Clear Panels)
Crawler Baukasten ohne Fernsteuerung und ohne Antriebskomponenten

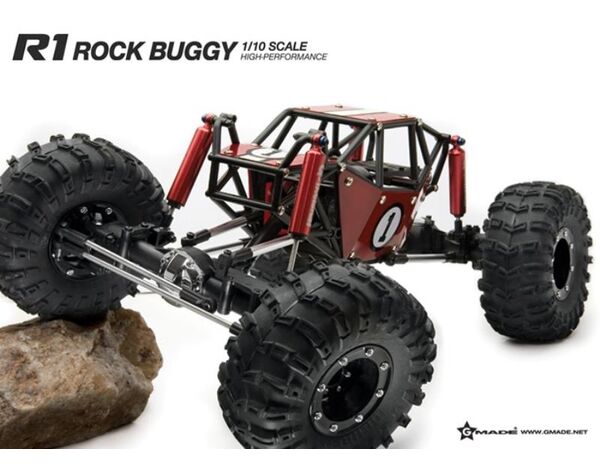

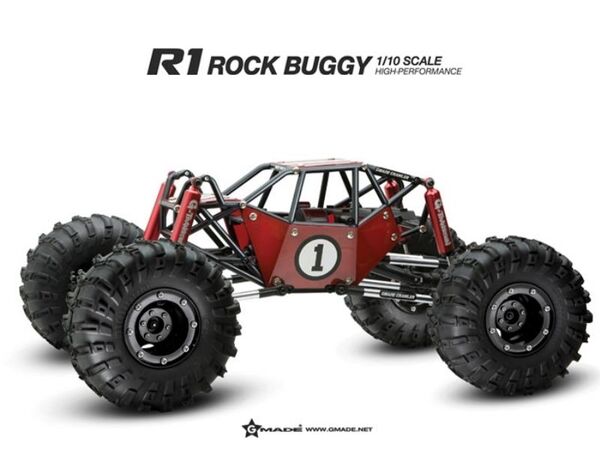

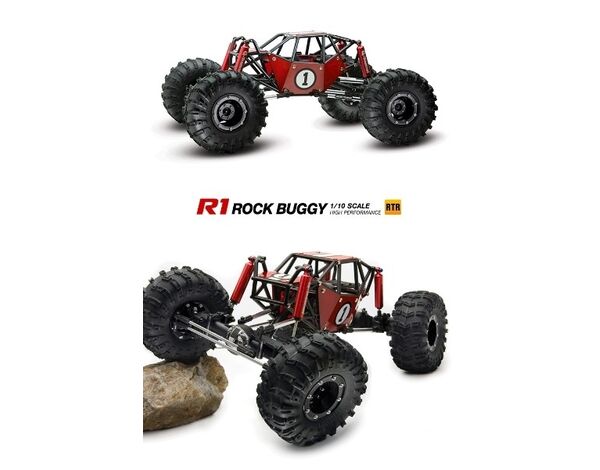

The R1 Rock Buggy is a shaft driven crawler that replicates the look of a high performance rock buggy, and delivers performance that makes it a capable scale recreation of the real thing. The moulded composite tube frame features an incredibly realistic appearance, and clear lexan body panels allow you to add a personalized touch to your rig. But this design does more than look the part, it provides protection to your electronics, and keeps everything safe when you tumble down the rocks.

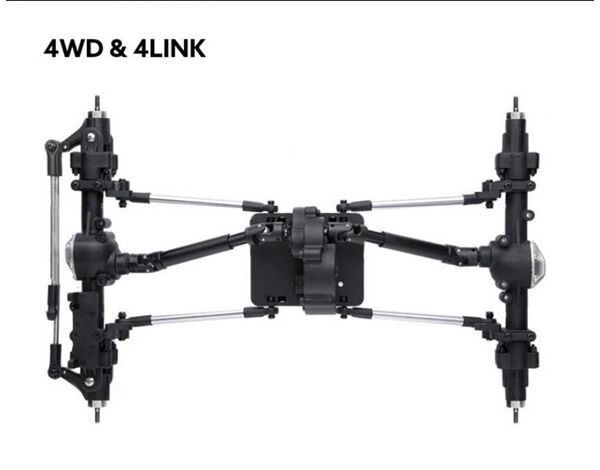

Other notable features include tough universal slider shafts that deliver the power from the transmission to the unique 'Portal' high clearance front and rear axles. Plus, with a fully sealed transmission, the awesome G-transition shocks, and standard 2.2 size wheels, the Gmade R1 is destined to become a standard in the world of rock racing crawlers.
This version of the Gmade R1 is sold in kit format (requires building) and with a clear bodyshell for those who want to design their own rig.
Gmade R1 Features:

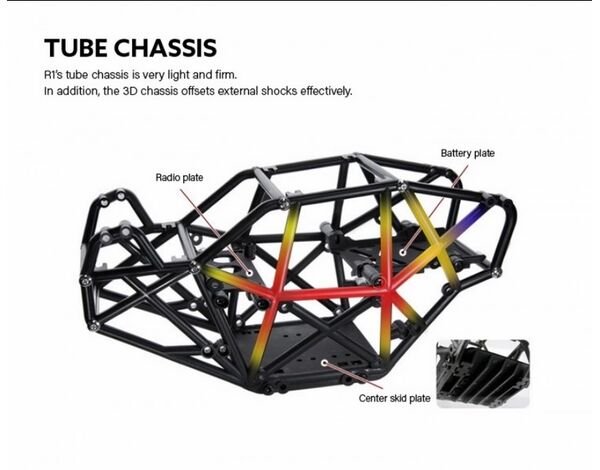

Realistic tube chassis

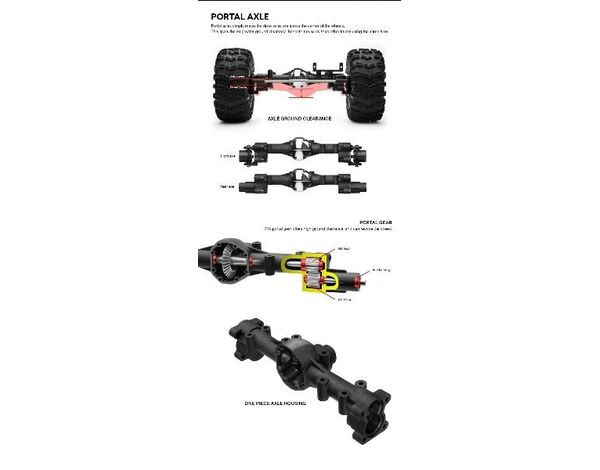

Portal axles
Portal gears

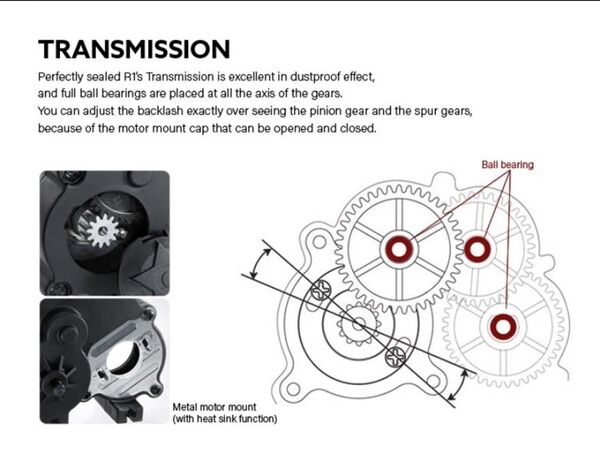

Sealed dust proof transmission
Full ball bearings on all of the gears

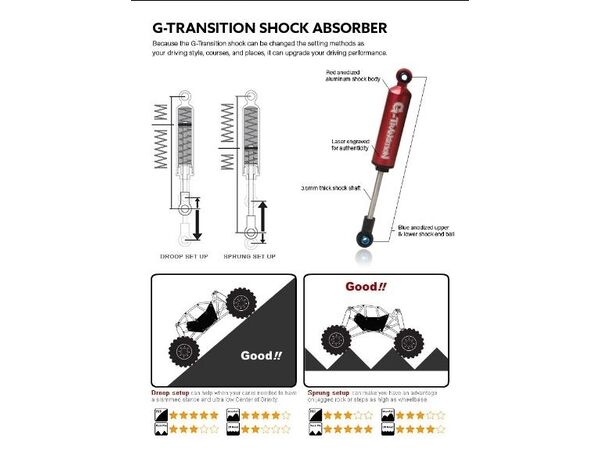

G-Transition Shock absorbers

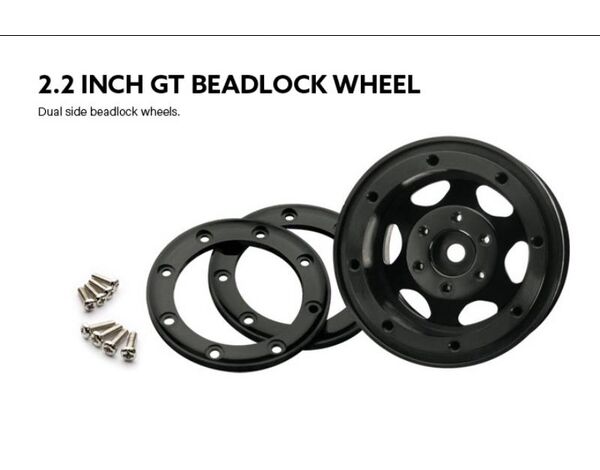

2.2" GT beadlock wheels

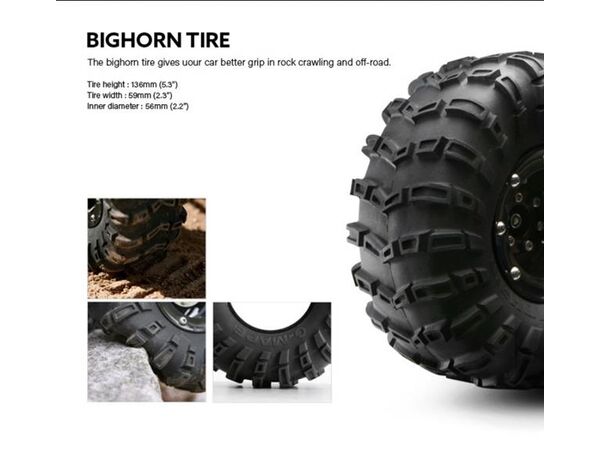

Super soft Bighorn tyres
Body panels and decals

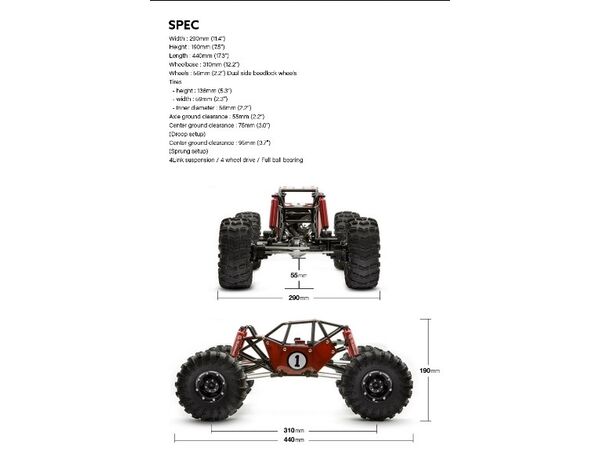

Spec Check:
Width: 290mm (11.4 inch)
Height: 190mm (7.5 inch)
Length: 440mm (17.3 inch)
Wheelbase: 310mm (12.2 inch)
Wheels: 56mm (2.2 inch) Dual side beedlock wheels
Tyre Height: 136mm (5.3 inch)
Tyre Width: 59mm (2.3 inch)
Tyre Inner Diameter: 56mm (2.2 inch)
Axle Ground Clearance: 55mm (2.2 inch)
Center Ground Clearance (Droop Set-up): 75mm (3 inch)
Center Ground Clearance (Sprung Set-up): 95mm (3.7 inch)
Für den Betrieb wird noch folgendes Zubehör benötigit:
2-Channel radio system & high torque steering servo,
540 size rock crawler motor & ESC,
Battery pack & compatible battery charger,
Pinion gear
Paint for the clear body panels.
