3Racing Crawler EX Real 1/10 Scale Kit 2-Gang

Produkt Bewerten
CHF 219.90
Beim Lieferant nicht an Lager. Liefertermin unbekannt. (Lieferzeit ca. 4-12 Wochen)
+
KIT-EX-REAL

Hersteller Info: 3Racing - mehr Artikel >

  • Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
  • 30 Jahre RC Modellbau Erfahrung
  • Top Service von Profi Modellbauer
  • Über 500 Hersteller - 200`000 Artikel

3Racing Top 1/10 Scale RC Crawler EXREAL 2- Gang Getriebe

Baukasten - Kit mit Räder ohne Body ohne Fernsteuerung und ohne elektronische Komponenten

Top Ausrüstung zu einem Hammer Preis...

Top Features:

- 1.4mm thick C-Channel metal frame with whole kit M7 metal linkages improve the vehicle strength and durability.

- REALISTIC 2 SPEED GEARBOX & MIDDLE TRANSFER CASE

- POWDER METALLURGY GEARS & METAL SOLID AXLES

- KNUCKLES & DIFF CASES

- 12° KINGPIN INCLINATION & ADJUSTABLE 0~20° CAMBER

- 1.9 INCHES BEADLOCK RIMS WITH REALISTIC RUBBER TIRES

- BASIC WATERPROOF RECEIVER CASE

- STEALTH BODY MOUNTS

- WHOLE KIT M7 METAL LINKAGES

- 75mm BIG BORE ALUMINUMS OIL DAMPERS

- 2.0MM FRP ADJUSTABLE BATTERY TRAY

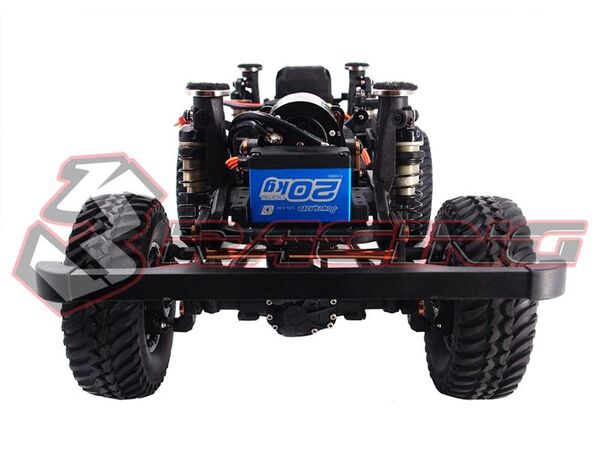

- D90 REALISTIC FRONT & REAR BUMPERS

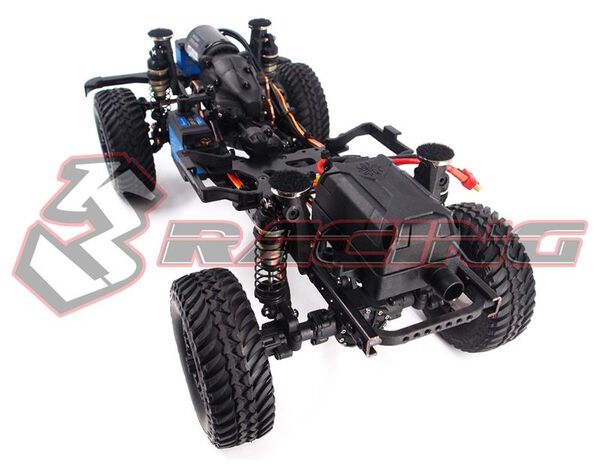

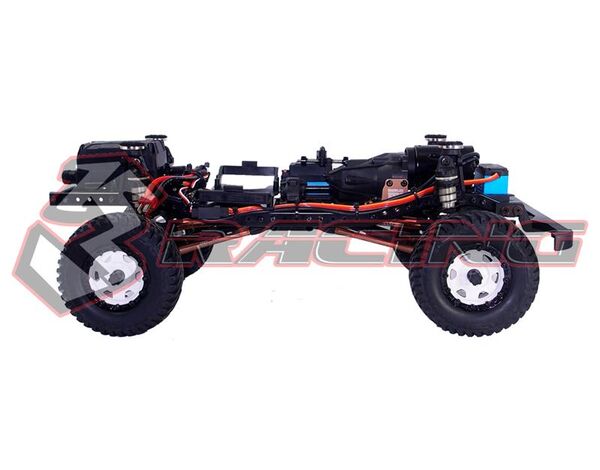

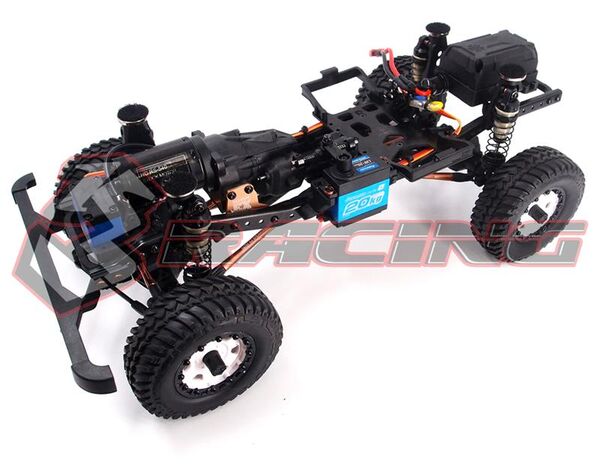

EX REAL is a high performance with high level of realistic detail crawler. The 1.4mm thick C-Channel metal frame with whole kit M7 metal linkages improve the vehicle strength and durability. The front motor & 2 speed gearbox setup follows the real crawler design, so the CG is at the front for better accelerating traction. Besides, it keeps the space for user to do the preferring interior designs. The metal bevel gear with metal solid axle, knuckes and upper linkage create significant ground clearance and greater exploring ability. The whole new 75mm aluminum oil damper allows more oil volume to provide a better shock absorbency. EX REAL includes all the refined adjustable settings: wheelbase, camber and battery tray for the best performance in difference terrains. Also with the stealth body mount and realistic front and rear bumper needed to say EX REAL is a high price-performance ratio realistic crawler which makes you have the best realistic crawler experience.

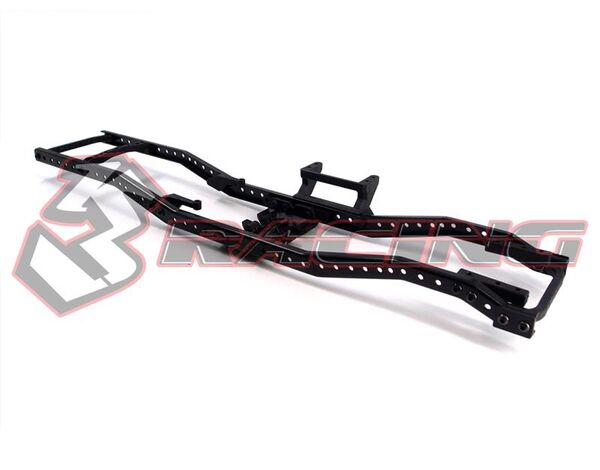

1.4MM THICK C-CHANNEL FRAME

1.4mm thick C-Channel metal frame with whole kit M7 metal linkages improve the vehicle strength and durability.

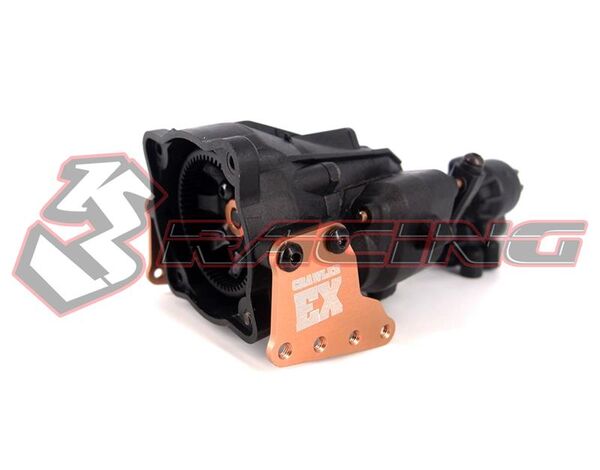

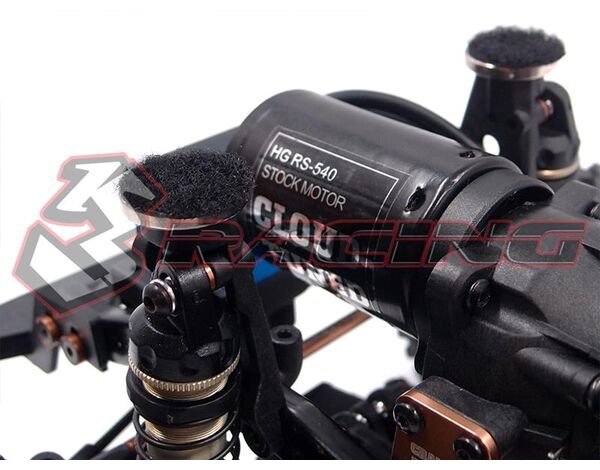

REALISTIC 2 SPEED GEARBOX & MIDDLE TRANSFER CASE

EX REAL comes with 2 speed transmission gearbox and transfer case with easy adjustable motor gears spacer. Allow driver to shift into low range for more torque while climbing hills and high range for blasting down the hills(GEAR RATIO: 1ST SHIFT 2.6:1 | 2ND SHIFT 1.69:1). Give it the realistic and best low speed crawling control. Inside the gearbox are used metal gears to increase the strength and durability. Additionally, the front motor & 2 speed gearbox setup follows the real crawler design, so the CG is at the front for better accelerating traction. Besides, it keeps the space for user to do the preferring interior designs.

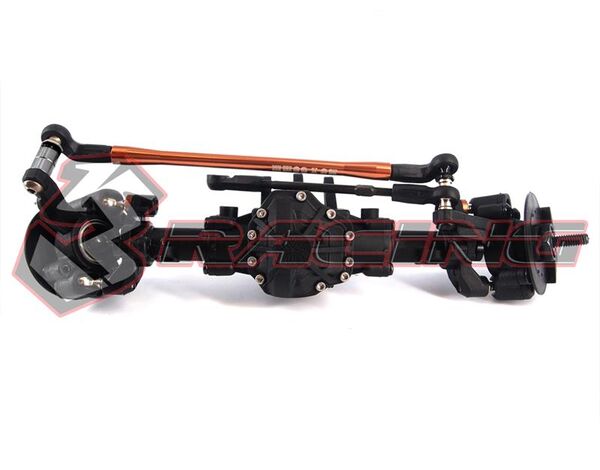

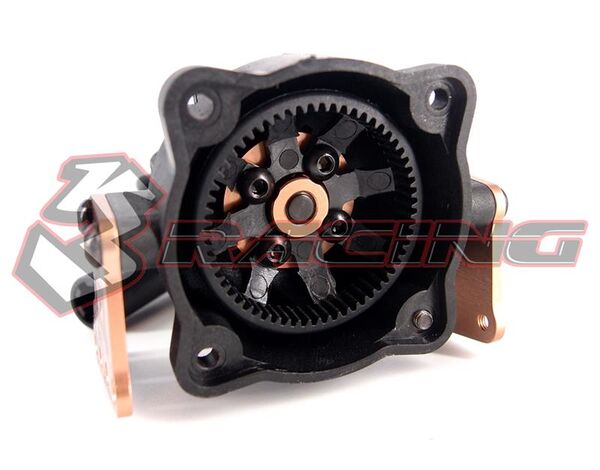

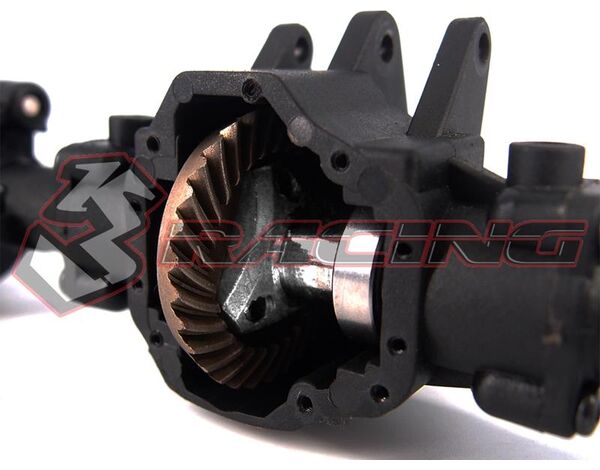

POWDER METALLURGY GEARS & METAL SOLID AXLES

EX REAL uses powder metallurgy gears to increase the strength and providing smooth surface finish higher dimensional accuracy and part-to-part consistency, increased EX REAL performance stability.

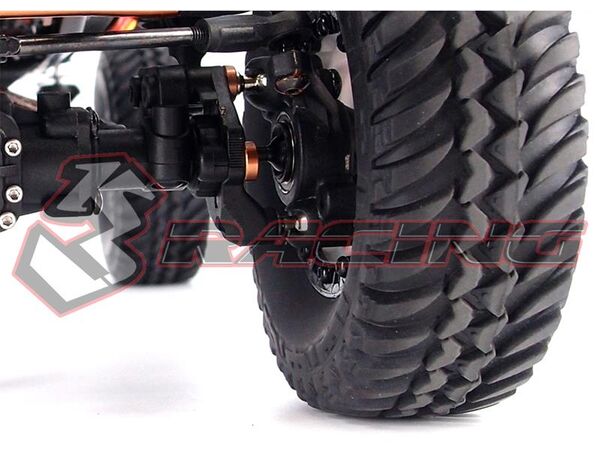

KNUCKLES & DIFF CASES

The knuckles design makes upper linkage closer to the chassis to increase the ground clearance which can reduce the chances of blocking by the obstacles, that is a huge advantage for climbing.

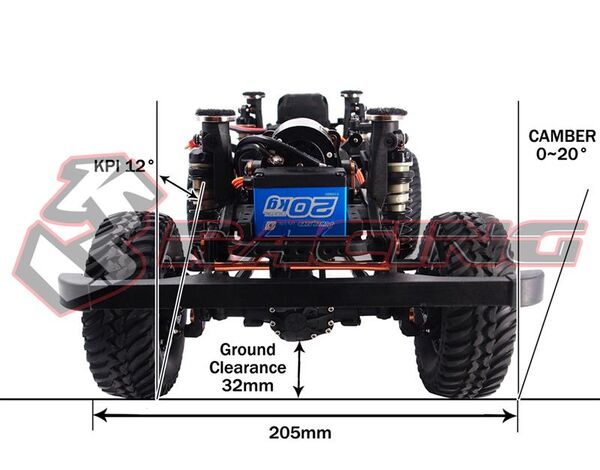

12° KINGPIN INCLINATION & ADJUSTABLE 0~20° CAMBER

EX REAL comes with 12°Kingpin inclination makes steering becomes smoother. Adding adjustable 0~20° camber to level the axle to maximum the car performance in difference terrains.

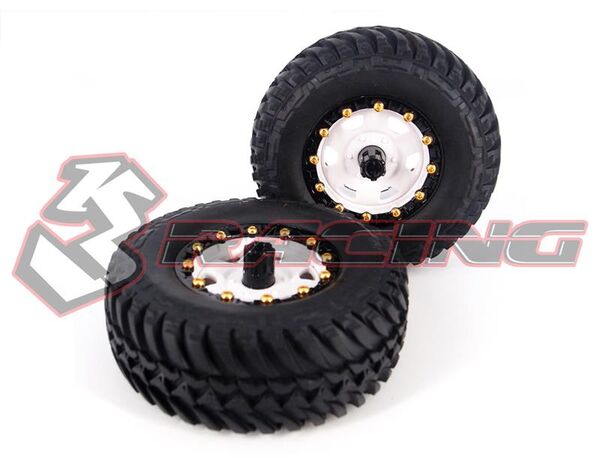

1.9 INCHES BEADLOCK RIMS WITH REALISTIC RUBBER TIRES

The beadlock rims included golden screws to improve the appearance of the car. High traction realistic rubber tires, features huge and deep lug provides high levels of traction in all off-road conditions.

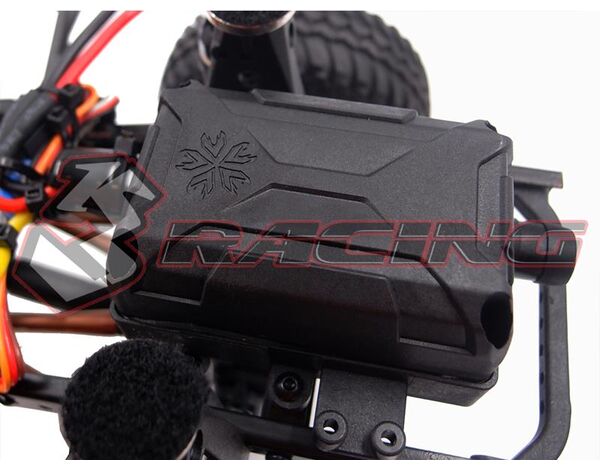

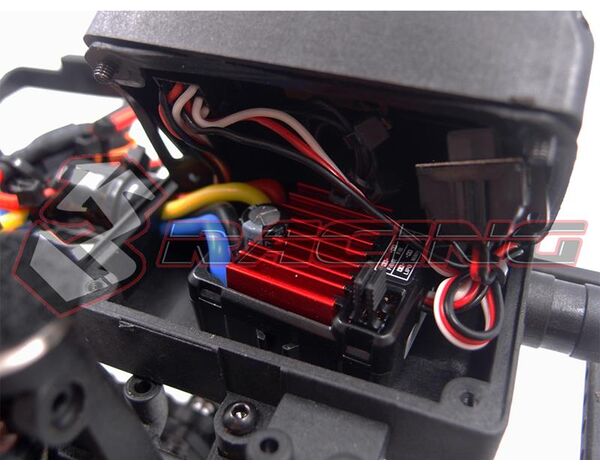

BASIC WATERPROOF RECEIVER CASE

For better weight distribution the receiver case is assembled at the rear part of the vehicle.

The receiver case comes with rubber seal to provide the basic water-resistant function; If user wants a more secure, user can use the silicone spray/paint(NOT INCLUDED) to completely protect the case.

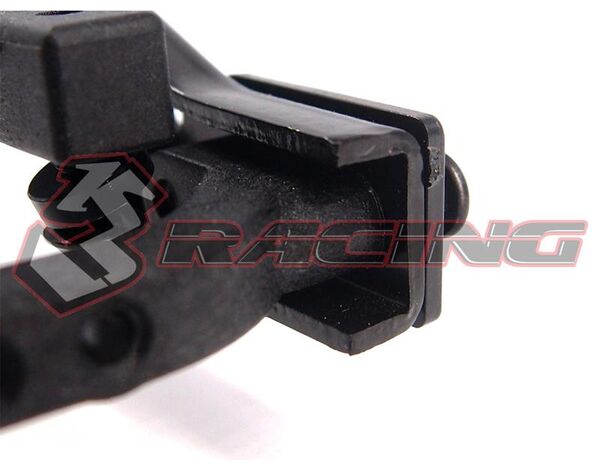

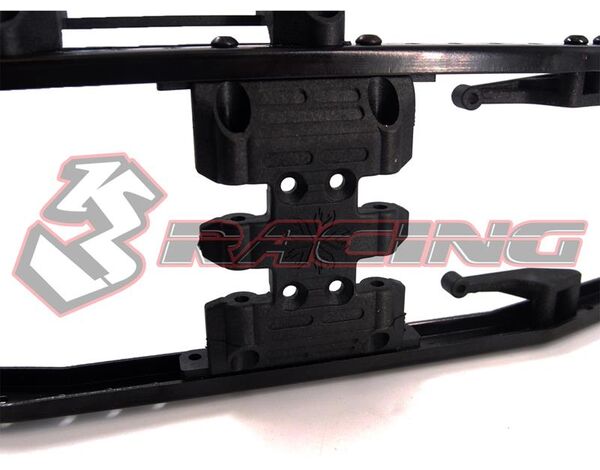

STEALTH BODY MOUNTS

To match up with the realistic look, EX REAL included a set of stealth body mounts

to prevent the body posts exposed and affect the overall appearance. However, EX REAL also included the standard body posts for user to use it on normal PC body shells.

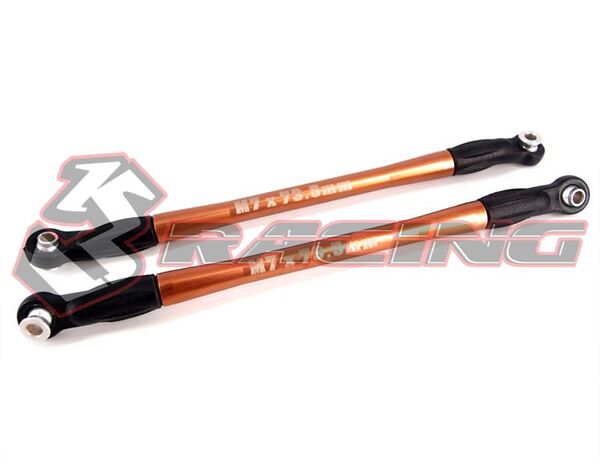

WHOLE KIT M7 METAL LINKAGES

Metal linkages increases whole car strength and durability.

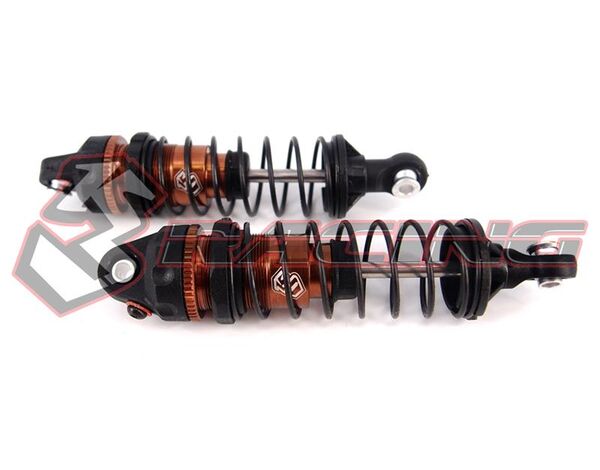

75mm BIG BORE ALUMINUMS OIL DAMPERS

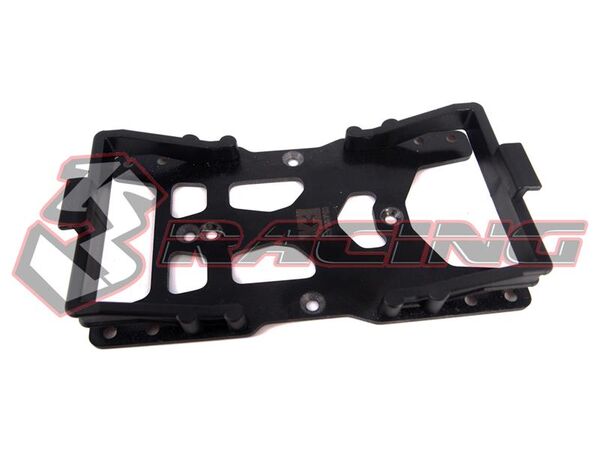

2.0MM FRP ADJUSTABLE BATTERY TRAY

Adjustable battery tray suitable for standard or short pack battery.

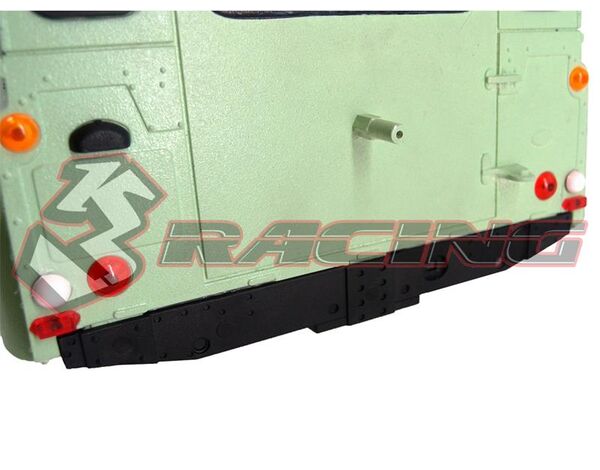

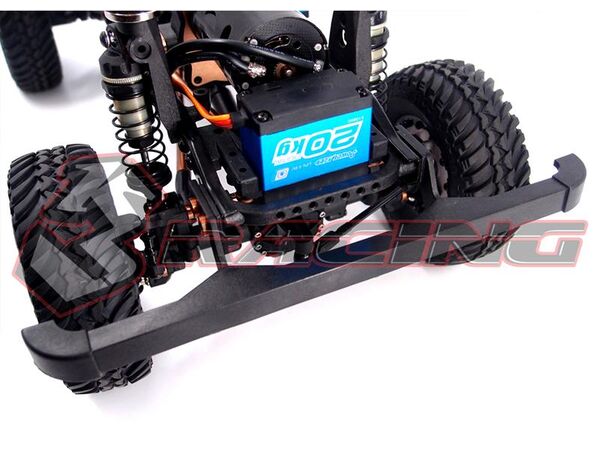

D90 REALISTIC FRONT & REAR BUMPERS

Fahrzeuge (Alle Attribute)

Fahruntergrund:
  • Offroad / Gelände
Antriebsart:
  • 4WD

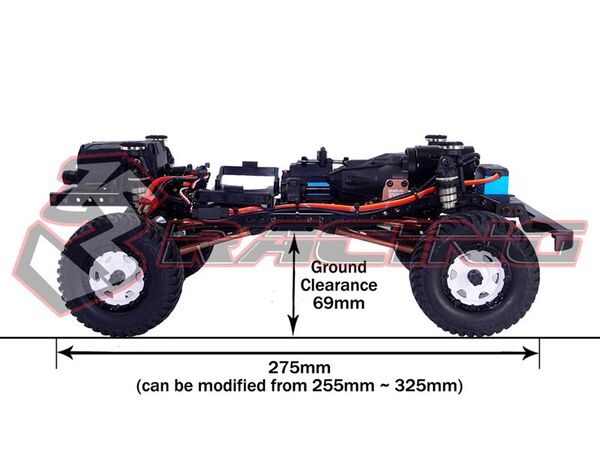

Bodenfreiheit mm ca.:
  • 70

Flugzeuge

Fertigungsgrad:
  • Baukasten Kit

Boote

Altersempfehlung (Planet-rc):
  • ab 14 Jahren
Empfohlener Akkutyp:
  • Lipo oder NimH Akku

Akku

Skill Level:
Fortgeschrittene
Breite mm ca.:
  • 205
Höhe mm ca.:
  • 200
Gewicht g ca.:
  • 2500

Fahrtenregler

Max. Betriebspannung:
  • 11.1 Volt

Motoren Elektro

Motor Antriebs Typ:
  • Elektro Brushed (Bürstenmotor)
  • Elektro Brushless (Bürstenloser Motor)
LED Beleuchtung:
Nein
Radstand mm ca.:
  • 255
  • 325

Brushless Set

Geschwindigkeit km/h ca.:
  • 15

Reifen

Rad Durchmesser mm ca.:
  • 120
Felgengrösse:
  • 1.9 " (48 mm)

Karosserien

Baugrösse Massstab:
  • 1/10
Fahrzeugart:
  • Scale - Offroad
Radaufnahme / Mitnehmer:
  • 12 mm

Servohörner

Länge mm ca.:
  • 500

Werkzeug

Wassergeschützt:
Ja
