- Artikel-Nr.: 198305959
- Hersteller-Nr.: TRX2250
- Bis 16 Uhr bestellt, Morgen Geliefert! (Lagerartikel)
- 30 Jahre RC Modellbau Erfahrung
- Top Service von Profi Modellbauer
- Über 500 Hersteller - 200`000 Artikel
2250 Traxxas Servo 2250 Digital High-torque 330 Coreless Metallgetriebe SPECIFICATIONS... mehr
Produktinformationen "2250 Traxxas Servo 2250 Digital High-torque 330"

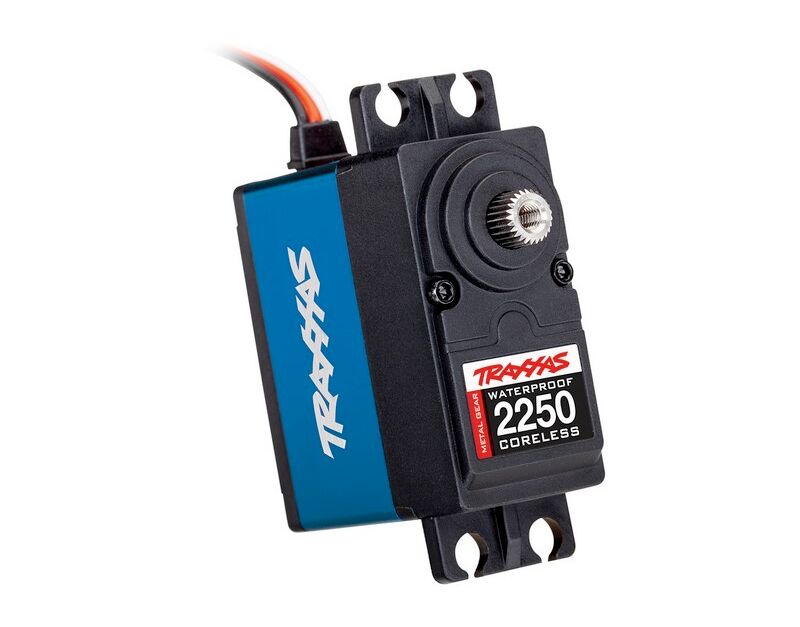

2250 Traxxas Servo 2250 Digital High-torque 330 Coreless Metallgetriebe
SPECIFICATIONS
Motor Type: Coreless
Operating Voltage: 6.0 - 7.4V DC
Speed: 0.19 sec/60°
Torque: 9.3kg
Weight: 64g
Gears: Metal
Output Spline: 25T
Case: Plastic top/bottom, anodized aluminum center
Controller: Digital
High-Torque 330 Blue Servo

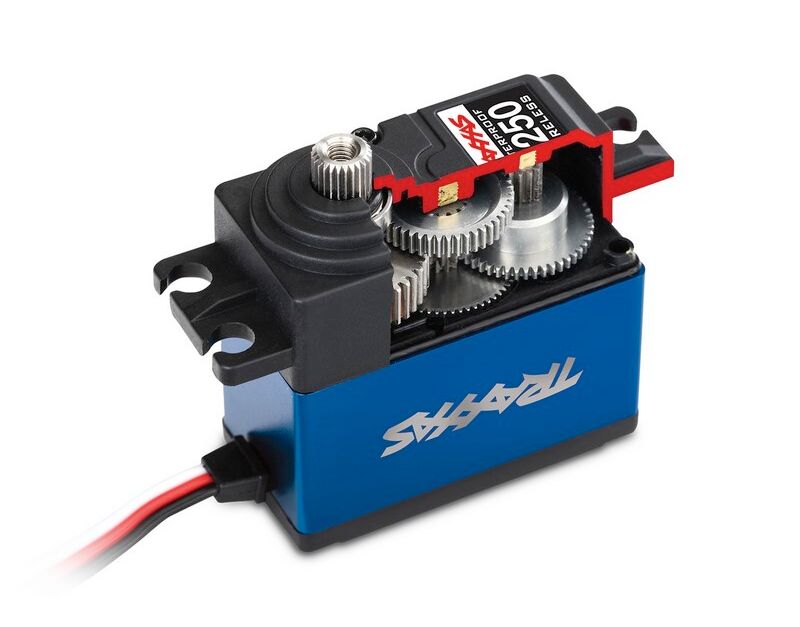

The Traxxas High-Torque 330 Blue servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A powerful coreless motor provides 330 ounce-inches of torque for the most demanding applications.* The High-Torque 330 servo is fully waterproof, not just “water resistant” and drops into most 1/10 Traxxas vehicles for that perfect factory fit.
The Power to Perform
With over 2.5 times more torque than the standard #2075 servo, the High-Torque 330 provides noticeably faster turning speed and works great with TSM™ equipped vehicles. Traxxas High-Torque servos are the perfect upgrade for high-demand applications like Unlimited Desert Racer, Slash, Stampede, or almost any 1/10 Traxxas vehicle requiring extreme performance. Replace the E-Revo's dual servos with a single #2250 for lighter weight, more torque, and lightning-quick steering response. Elevate your steering performance to the next level with the High-Torque Blue 330 servo.
For TRX-4 Installation
The Traxxas High-Torque 330 Blue servo represents a huge power upgrade for the TRX-4. When installing this servo, it is required that you use the High-Voltage BEC kit #2262 (available in early-October) and a steel servo horn #8247X is recommended. Installing the BEC is easy with plug and play simplicity. The kit includes a larger receiver box cover to maintain total waterproof integrity and a Y harness for vehicles with LED light kits.
HIGH-TORQUE 330 BLUE FEATURES
Factory fit for drop-in installation into Traxxas Models
Fully waterproof, not "water resistant"
Compatible with Traxxas Stability Management™ (TSM)
330 oz-in torque
Metal gears
Dual ball bearings
Coreless motor technology
Aluminum center case
Compatible with most Traxxas 1/10 scale electric models*
Compatible with TRX-4 models using High Voltage BEC Kit #2262 and #8247X metal servo horn
Compatible with Traxxas nitro models using rechargeable 5-cell battery packs
Not recommended for X-Maxx
SPECIFICATIONS
Motor Type: Coreless
Operating Voltage: 6.0 - 7.4V DC
Speed: 0.19 sec/60°
Torque: 9.3kg
Weight: 64g
Gears: Metal
Output Spline: 25T
Case: Plastic top/bottom, anodized aluminum center
Controller: Digital
High-Torque 330 Blue Servo
The Traxxas High-Torque 330 Blue servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A powerful coreless motor provides 330 ounce-inches of torque for the most demanding applications.* The High-Torque 330 servo is fully waterproof, not just “water resistant” and drops into most 1/10 Traxxas vehicles for that perfect factory fit.
The Power to Perform
With over 2.5 times more torque than the standard #2075 servo, the High-Torque 330 provides noticeably faster turning speed and works great with TSM™ equipped vehicles. Traxxas High-Torque servos are the perfect upgrade for high-demand applications like Unlimited Desert Racer, Slash, Stampede, or almost any 1/10 Traxxas vehicle requiring extreme performance. Replace the E-Revo's dual servos with a single #2250 for lighter weight, more torque, and lightning-quick steering response. Elevate your steering performance to the next level with the High-Torque Blue 330 servo.
For TRX-4 Installation
The Traxxas High-Torque 330 Blue servo represents a huge power upgrade for the TRX-4. When installing this servo, it is required that you use the High-Voltage BEC kit #2262 (available in early-October) and a steel servo horn #8247X is recommended. Installing the BEC is easy with plug and play simplicity. The kit includes a larger receiver box cover to maintain total waterproof integrity and a Y harness for vehicles with LED light kits.
HIGH-TORQUE 330 BLUE FEATURES
Factory fit for drop-in installation into Traxxas Models
Fully waterproof, not "water resistant"
Compatible with Traxxas Stability Management™ (TSM)
330 oz-in torque
Metal gears
Dual ball bearings
Coreless motor technology
Aluminum center case
Compatible with most Traxxas 1/10 scale electric models*
Compatible with TRX-4 models using High Voltage BEC Kit #2262 and #8247X metal servo horn
Compatible with Traxxas nitro models using rechargeable 5-cell battery packs
Not recommended for X-Maxx
Stellzeit sec.: | 0.19 |
Stellkraft kg: | 9.5 |
Stecker: | JR Uniplug |
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Servohorn Aufnahme: | 25 Zähne (Futaba - Savöx - Traxxas usw.) 25T |
Modulation: | Digital |
Motor Art.: | Coreless |
Material Gehäuse: | Kunstoff / Metall |
Gehäuse Grösse: | Standard Servo |
Getriebe: | Metall |
Max. Eingangsspannung: | 7.4 Volt |
Wassergeschützt: | Ja |
Länge mm ca.: | 40 |
Breite mm ca.: | 40 |
Höhe mm ca.: | 20 |
Gewicht g ca.: | 64 |
Passend für Modelltyp: | Traxxas Bandit 2WD - XL-5, Traxxas Bandit 2WD - VXL - 3S, Traxxas Big Foot 2WD - XL-5, Traxxas 4-Tec 2.0 Onroad - VXL - 3S, Traxxas E-Revo 1/10 EVX-2 - 4S (Bis 2015), Traxxas E-Revo / ERevo 1/10 VXL - 6S, Traxxas E-Revo 2.0 / ERevo 1/10 VXL - 6S, Traxxas E-Maxx 1/10 VXL - 6S, Traxxas E-Maxx 1/10 EVX-2 - 4S (Bis 2015), Traxxas Hoss 1/10 - VXL - 3S, Traxxas Rustler 2WD 1/10 - XL-5, Traxxas Rustler 2WD 1/10 VXL - 3S, Traxxas Rustler 4x4 1/10 - XL-5, Traxxas Rustler 4x4 1/10 VXL - 3S, Traxxas Rally 1/10 - XL-5, Traxxas Rally 1/10 - VXL - 3S, Traxxas Stampede 2WD 1/10 - XL-5, Traxxas Stampede 2WD 1/10 VXL - 3S, Traxxas Stampede 4x4 1/10 - XL-5, Traxxas Stampede 4x4 1/10 VXL - 3S, Traxxas Slash 2WD 1/10 - XL-5, Traxxas Slash 2WD 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 - XL-5, Traxxas Slash 4x4 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 LCG - XL-5, Traxxas Slash 4x4 1/10 LCG VXL - 3S, Traxxas Slayer Pro 4x4, Traxxas Summit 1/10 - EVX-2 - 4S, Traxxas TRX-4 / TRX4 Defender Landrover, Traxxas TRX-4 / TRX4 Ford Bronco, Traxxas TRX-4 / TRX4 Chevy Blazer , Traxxas TRX-4 / TRX4 Mercedes-Benz G500, Traxxas TRX-4 / TRX4 Sport TRAXX, Traxxas TRX-4 / TRX4 Sport, Traxxas TRX-4 / TRX4 Baukasten Kit, Traxxas TRX-6 / TRX6 Mercedes-Benz G63 , Traxxas XO-1 / XO1 1/7 - VXL - 6S, Traxxas Blast Boot, Traxxas Spartan Boot - VXL - 6S, Traxxas M41 Boot - VXL - 6S, Traxxas Revo 3.3, Traxxas Nitro Rustler, Traxxas Nitro Slash, Traxxas T-Maxx, Traxxas Jato 3.3 |
Artikel Eigenschaften "2250 Traxxas Servo 2250 Digital High-torque 330"
Stellzeit sec.: | 0.19 |
Stellkraft kg: | 9.5 |
Stecker: | JR Uniplug |
Anwendungsbereich: | Fahrzeuge |
Einsatzbereich: | Hobby Racer / Basher |
Servohorn Aufnahme: | 25 Zähne (Futaba - Savöx - Traxxas usw.) 25T |
Modulation: | Digital |
Motor Art.: | Coreless |
Material Gehäuse: | Kunstoff / Metall |
Gehäuse Grösse: | Standard Servo |
Getriebe: | Metall |
Max. Eingangsspannung: | 7.4 Volt |
Wassergeschützt: | Ja |
Länge mm ca.: | 40 |
Breite mm ca.: | 40 |
Höhe mm ca.: | 20 |
Gewicht g ca.: | 64 |
Passend für Modelltyp: | Traxxas Bandit 2WD - XL-5, Traxxas Bandit 2WD - VXL - 3S, Traxxas Big Foot 2WD - XL-5, Traxxas 4-Tec 2.0 Onroad - VXL - 3S, Traxxas E-Revo 1/10 EVX-2 - 4S (Bis 2015), Traxxas E-Revo / ERevo 1/10 VXL - 6S, Traxxas E-Revo 2.0 / ERevo 1/10 VXL - 6S, Traxxas E-Maxx 1/10 VXL - 6S, Traxxas E-Maxx 1/10 EVX-2 - 4S (Bis 2015), Traxxas Hoss 1/10 - VXL - 3S, Traxxas Rustler 2WD 1/10 - XL-5, Traxxas Rustler 2WD 1/10 VXL - 3S, Traxxas Rustler 4x4 1/10 - XL-5, Traxxas Rustler 4x4 1/10 VXL - 3S, Traxxas Rally 1/10 - XL-5, Traxxas Rally 1/10 - VXL - 3S, Traxxas Stampede 2WD 1/10 - XL-5, Traxxas Stampede 2WD 1/10 VXL - 3S, Traxxas Stampede 4x4 1/10 - XL-5, Traxxas Stampede 4x4 1/10 VXL - 3S, Traxxas Slash 2WD 1/10 - XL-5, Traxxas Slash 2WD 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 - XL-5, Traxxas Slash 4x4 1/10 - VXL - 3S, Traxxas Slash 4x4 1/10 LCG - XL-5, Traxxas Slash 4x4 1/10 LCG VXL - 3S, Traxxas Slayer Pro 4x4, Traxxas Summit 1/10 - EVX-2 - 4S, Traxxas TRX-4 / TRX4 Defender Landrover, Traxxas TRX-4 / TRX4 Ford Bronco, Traxxas TRX-4 / TRX4 Chevy Blazer , Traxxas TRX-4 / TRX4 Mercedes-Benz G500, Traxxas TRX-4 / TRX4 Sport TRAXX, Traxxas TRX-4 / TRX4 Sport, Traxxas TRX-4 / TRX4 Baukasten Kit, Traxxas TRX-6 / TRX6 Mercedes-Benz G63 , Traxxas XO-1 / XO1 1/7 - VXL - 6S, Traxxas Blast Boot, Traxxas Spartan Boot - VXL - 6S, Traxxas M41 Boot - VXL - 6S, Traxxas Revo 3.3, Traxxas Nitro Rustler, Traxxas Nitro Slash, Traxxas T-Maxx, Traxxas Jato 3.3 |
