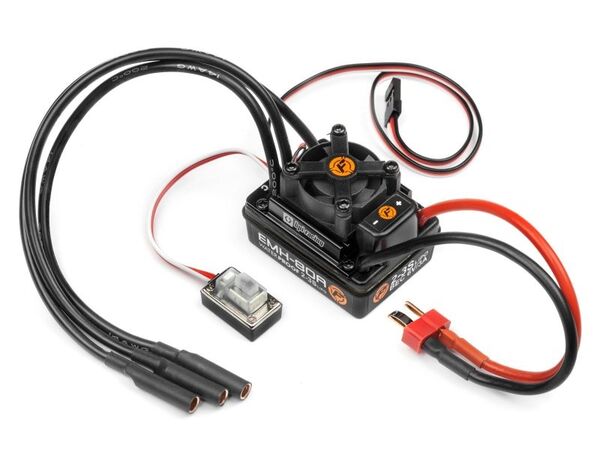

120026 HPI Racing FLUX EMH-80A BRUSHLESS WATERPROOF ESC Regler

120026 Racing FLUX EMH-80A BRUSHLESS WATERPROOF ESC

With the capacity to handle 2S and 3S LiPo power, the Flux EMH-80A ESC is the perfect match for the #112850 MMH-4000KV 1/10th scale brushless motor.

Complete waterproof protection means you can use your car equipped with the Flux EMH-80A in the wettest of conditions, or when the weather's warm, a large fan sits on top of the case inside a protective cover to keep things cool.

Features:

1. Waterproof* and dust-proof. The ESC has been designed to work in wet conditions.

a.*Please remove the cooling fan when using the ESC very wet conditions.

b.*After using the ESC in wet conditions, please clean and dry it to avoid the oxidation to copper connectors

2. 2S-3S capable

3. Compatible with sensorless brushless motor

4. 3 running modes (“Forward with Brake” mode, “Forward/Reverse with Brake” mode, and “Rock Crawler” mode).

5. Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment

6. 9 Punch modes from “Soft” to “Very aggressive” to be suitable for different chassis, tires and tracks

7. Multiple protection features: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection

8. Easily programmed with the “SET” button on the ESC

Specification:

Continuous Current: 80A

Burst Current: 540A

Resistance: 0.0004 ohm

Application: 1/10 scale On-Road and Off-Road

Motor Limit:

1) 2S LiPo/6 cell NiMh; On-Road: ≥ 5.5T; Off-Road: ≤ 6000Kv; 3650 Size Motor

2) 3S LiPo/9 cell NiMh; On-Road: ≥ 8.5T; Off-Road: ≤ 4000Kv; 3650/3660 Size Motor

Battery: 4-9 cells NiMh or 2-3S LiPo

1) For 4-6 cells NiMH or 2S Lipo: You needn't change the 5V cooling fan on the ESC;

2) For 7-9 cells NiMH or 3S Lipo: You must change the original 5Vcooling fan to 12V cooling fan, or supply the 5V cooling fan from the receiver (5-6V);

Built-in BEC: 6V/2A Switching

Program Port: Multiplexed with cooling fan port

Motor Type: Sensorless Brushless

Dimension: 46x34x35mm

Weight: 82g

Waterproof!

Use with #112850 - Flux MMH-4000KV Brushless Motor

NOTE: Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.
